10 cm Box-Type Sliding – Single Glass

Commercial name: Box-Type Sliding – 100 mm, Single Glazing; Description:; The 10 cm Box-Type Single Glass System provides a sturdy yet economical framing solution for single-glazed windows, doors, and partitions.; With its modular profile design and precise extrusion, it balances strength, ease of assembly, and aesthetic simplicity — making it a preferred choice for interior or semi-exterior applications.

Parts explorer (9)

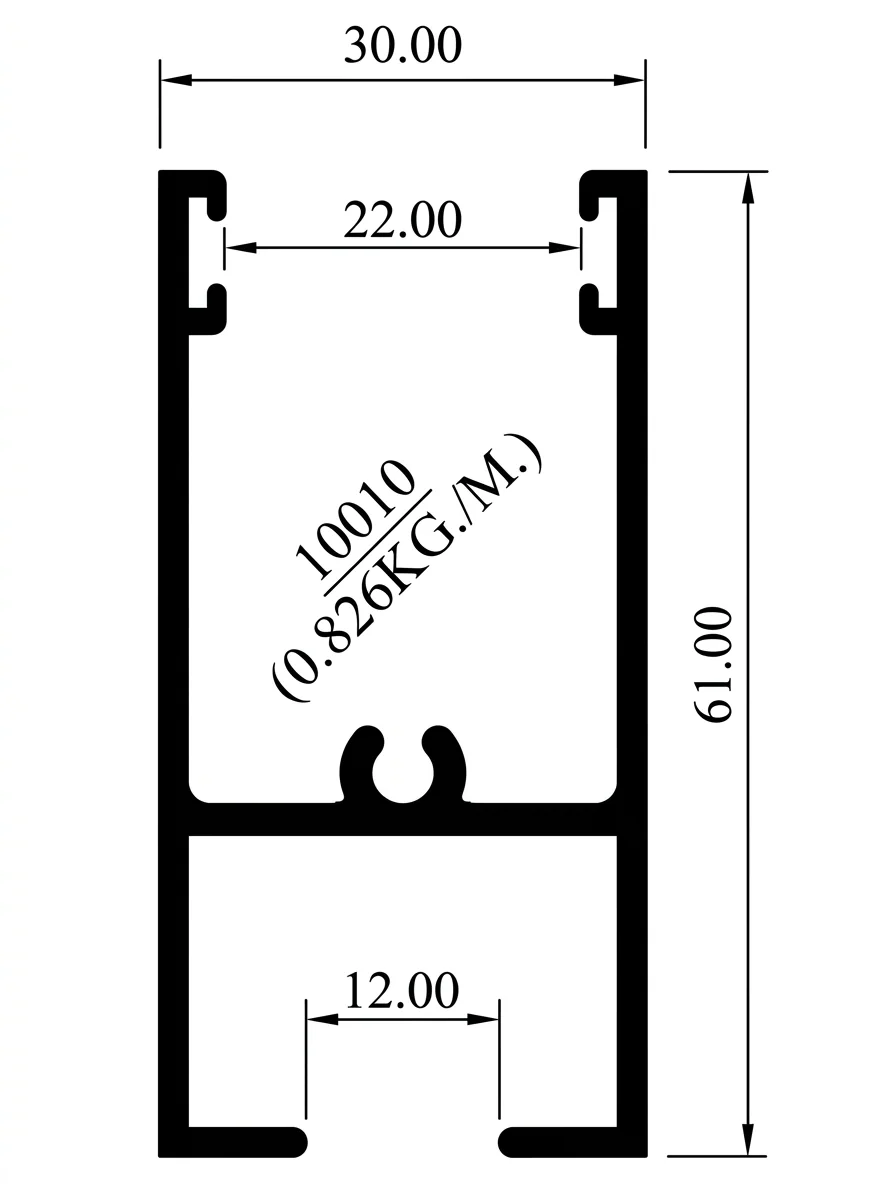

Profile 10010

Die numbers:: 10010

System features

Designed for single glazing applications (6–12 mm)
Box-type construction for enhanced structural strength

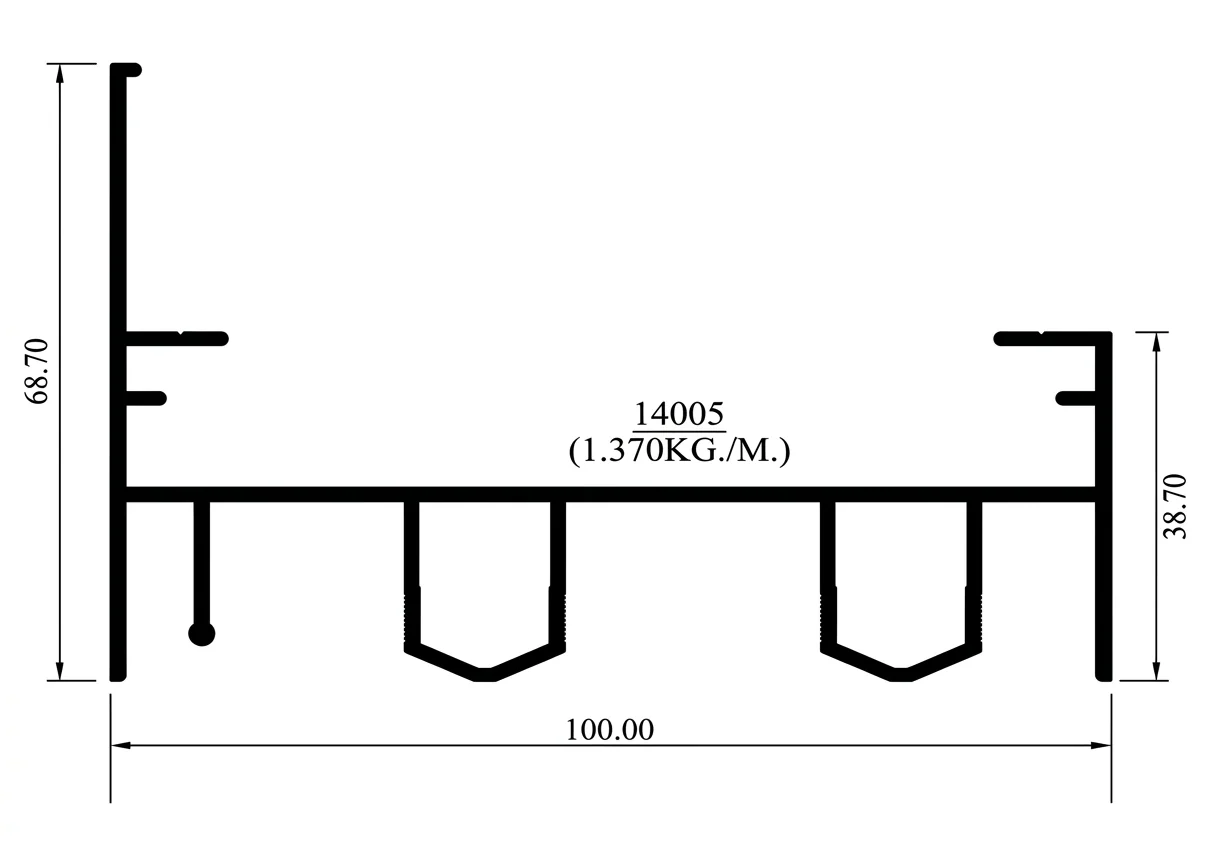

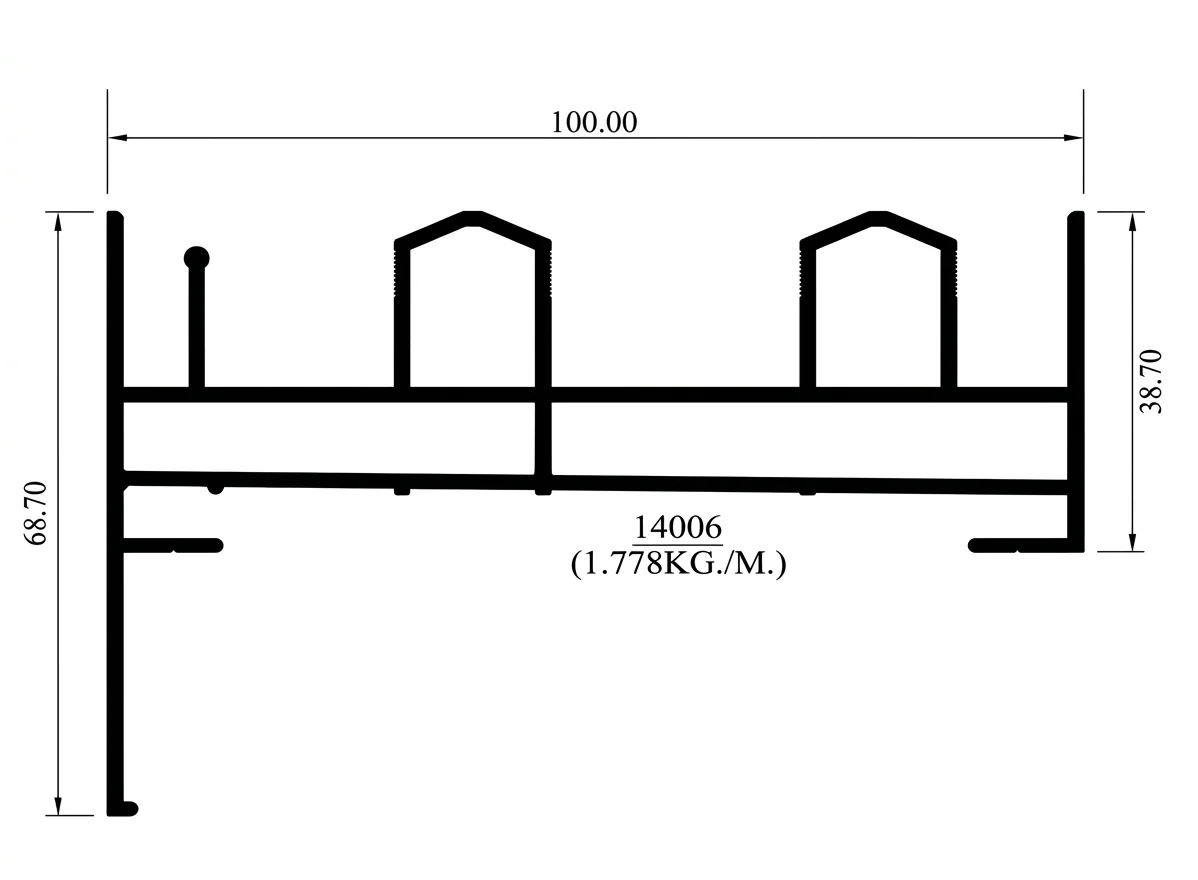

Optional reinforcement profiles (14005 / 14006) for heavy-duty use
Supports various configurations: fixed, sliding, or hinged
Compatible with Mosameh rubber gaskets, clips, and locks
Excellent balance between rigidity and weight

Applications

Single-glazed storefronts and showrooms
Office glass partitions and conference rooms
Balcony and indoor window systems
Lightweight façades and display panels

Overview

Material: Aluminium Alloy 6063-T5
Finish Options: Mill Finish / Anodized / Powder-Coated
System Size: 100 mm
System Depth: 100 mm
Glazing Type: Single Glass
Glass Thickness: 6 – 12 mm
Wall Thickness: 1.2 – 1.8 mm
Weight Range: 0.33 – 1.77 kg/m
Applications: Doors Windows Interior Glass Partitions
