Sliding Systems Family

105 mm Sliding Window Series

This system consists of precision-engineered, thin-walled aluminum alloy profiles designed to form structural window assemblies. The system centers on a 105 mm frame depth platform with specialized interlocking mid-sections (10492, 10969, 21111). These geometries allow engineers to scale structural performance across various wind loads. The integration of snap-on single-glass adaptors (10486) provides production flexibility by allowing a single base sash to accommodate varying glass thicknesses without complete re-tooling.

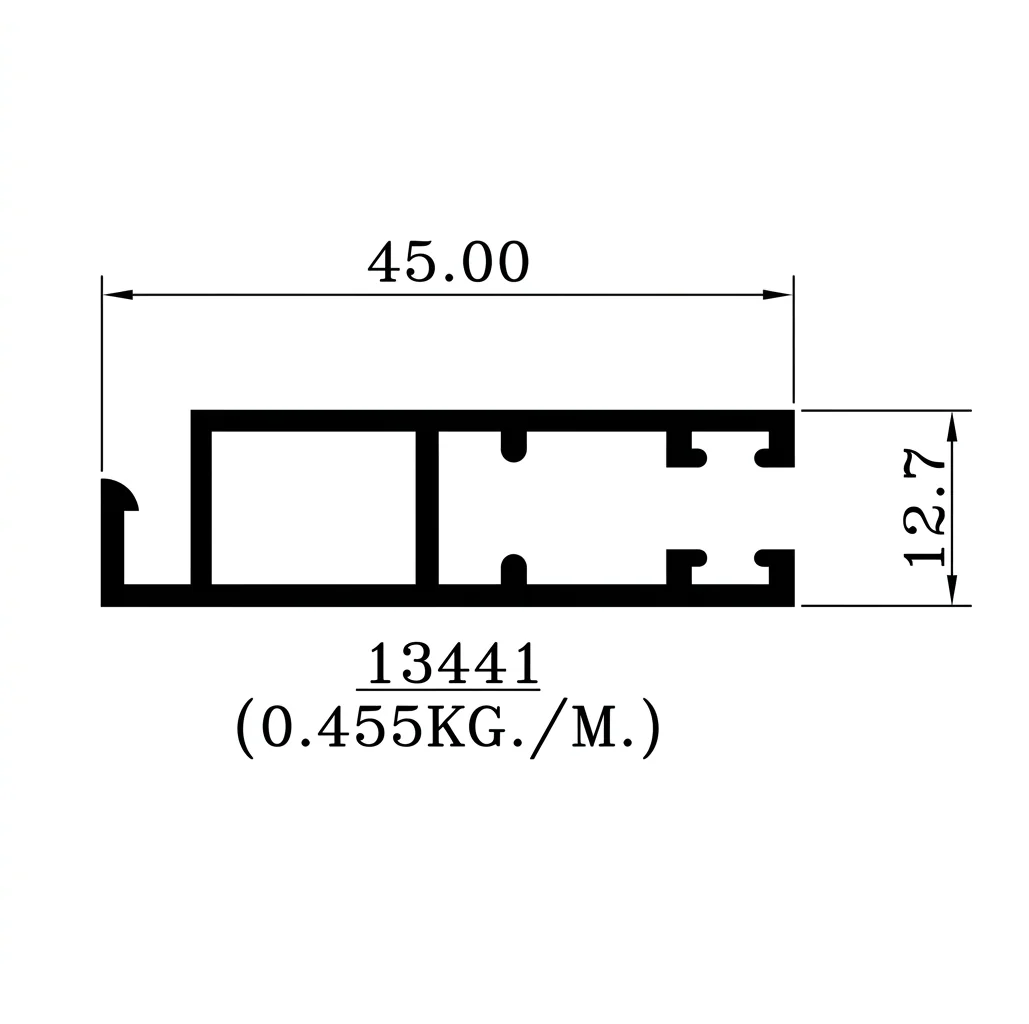

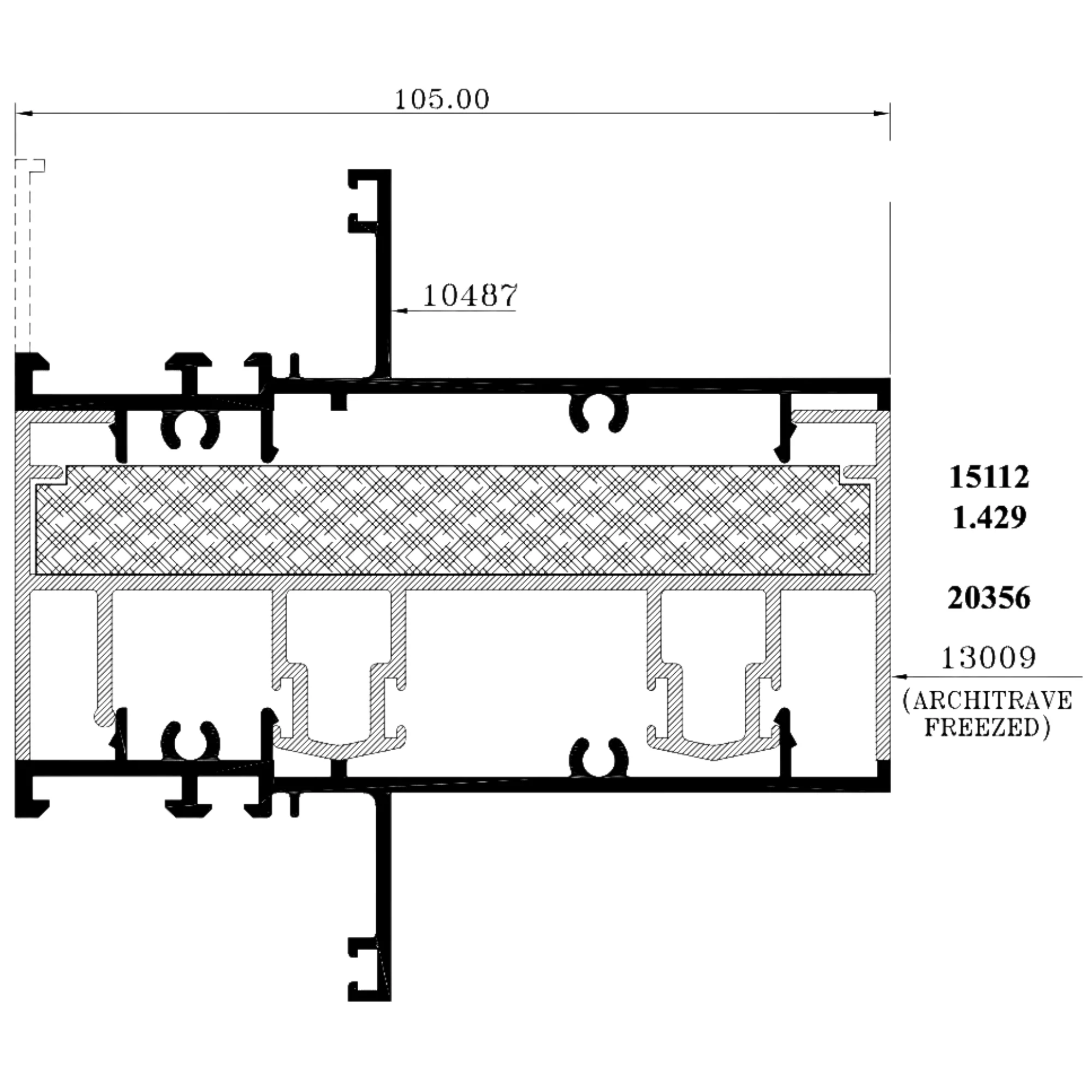

Parts explorer (19)

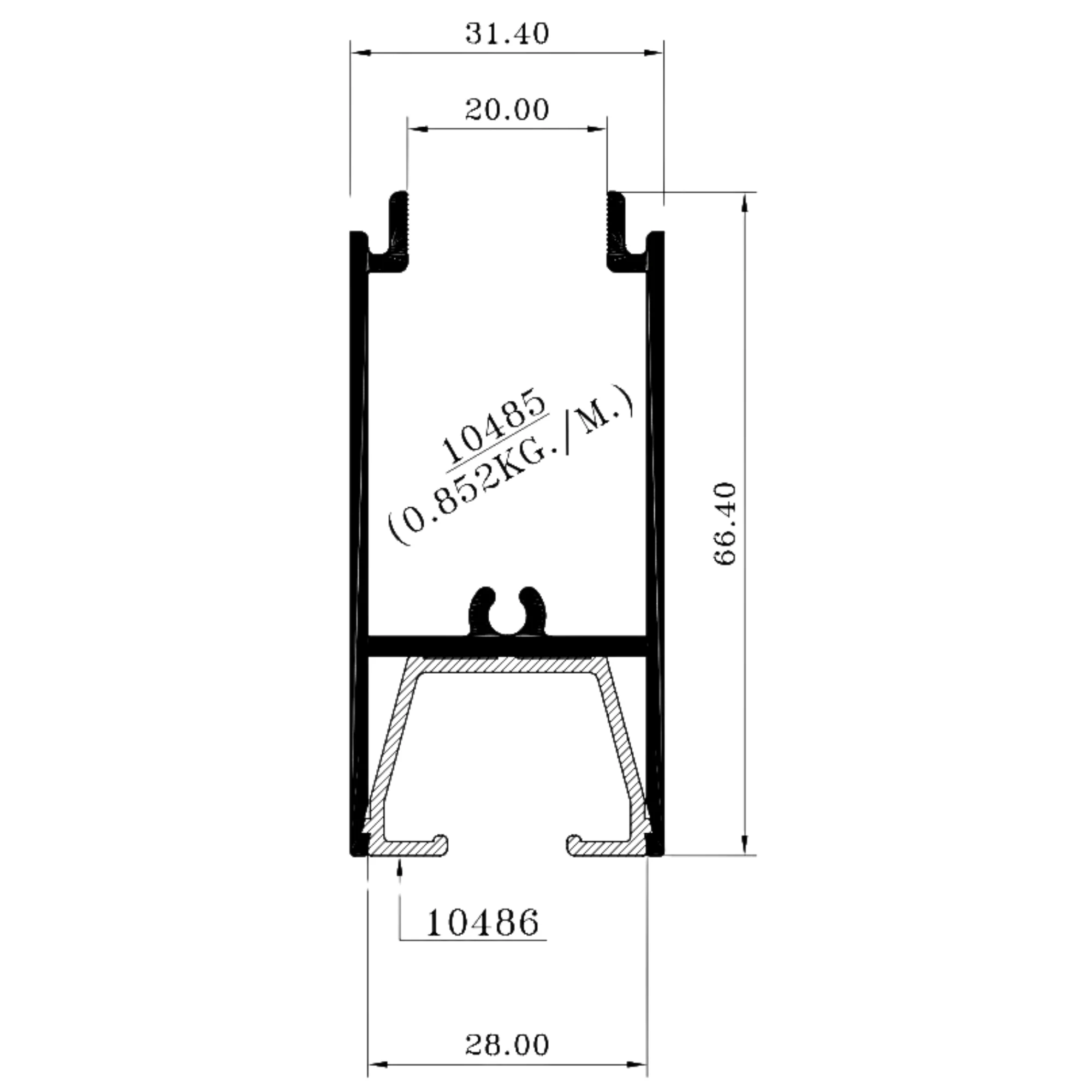

Assembly 10485 + 10486

Die numbers:: 10485, 10486

Multi-profile assembly

System features

Modular Interlocking Architecture
Three distinct multi-vent mid-sections for tailored structural performance
Optimized mass-to-stiffness ratio
Standardized pocket system for thermal isolation materials, weatherstripping and glass gaskets

Applications

High-rise residential developments
commercial building envelopes
fenestration manufacturing
modular architectural facades

Overview

Material: 6000-series aluminum alloy, typically 6063-T6 or 6061-T6 structural tempers
Finish Options: Architectural Anodizing Class I / II / Thermosetting Powder Coating (Qualicoat certified) / Fluoropolymer (PVDF) liquid coatings
System Size: Standard structural frame depth: 105.00 mm; single-glass glazing channel: 12.00 mm via adapter interface

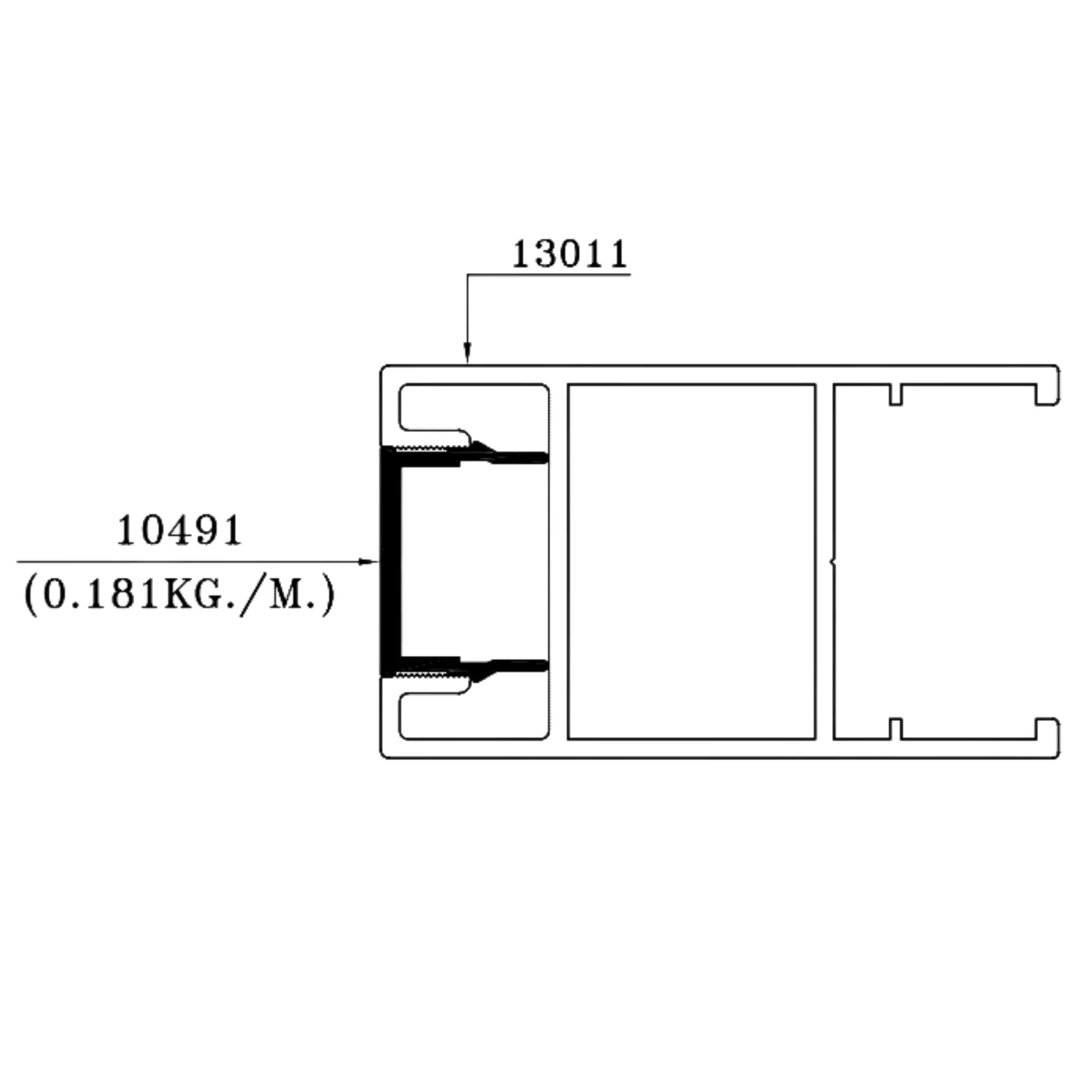

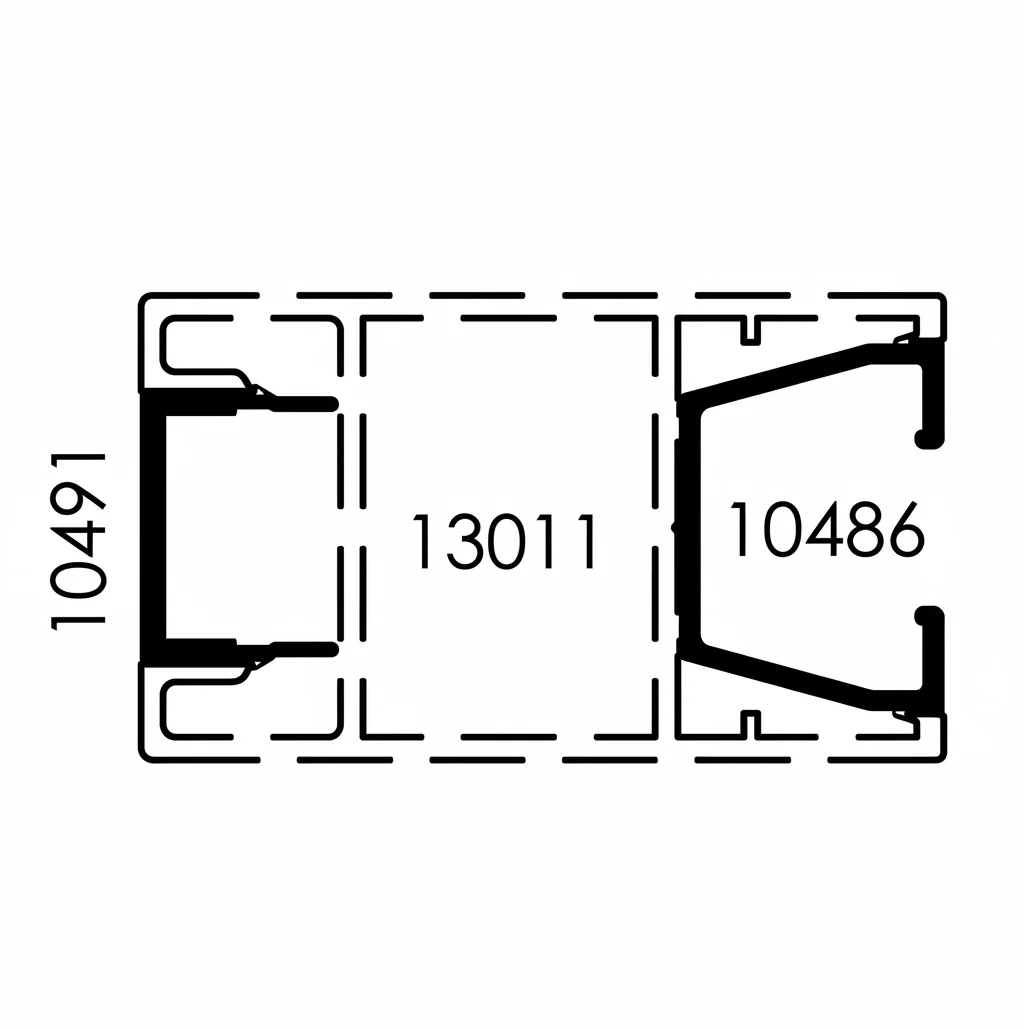

Profile 13011: Main Frame/Mullion Section

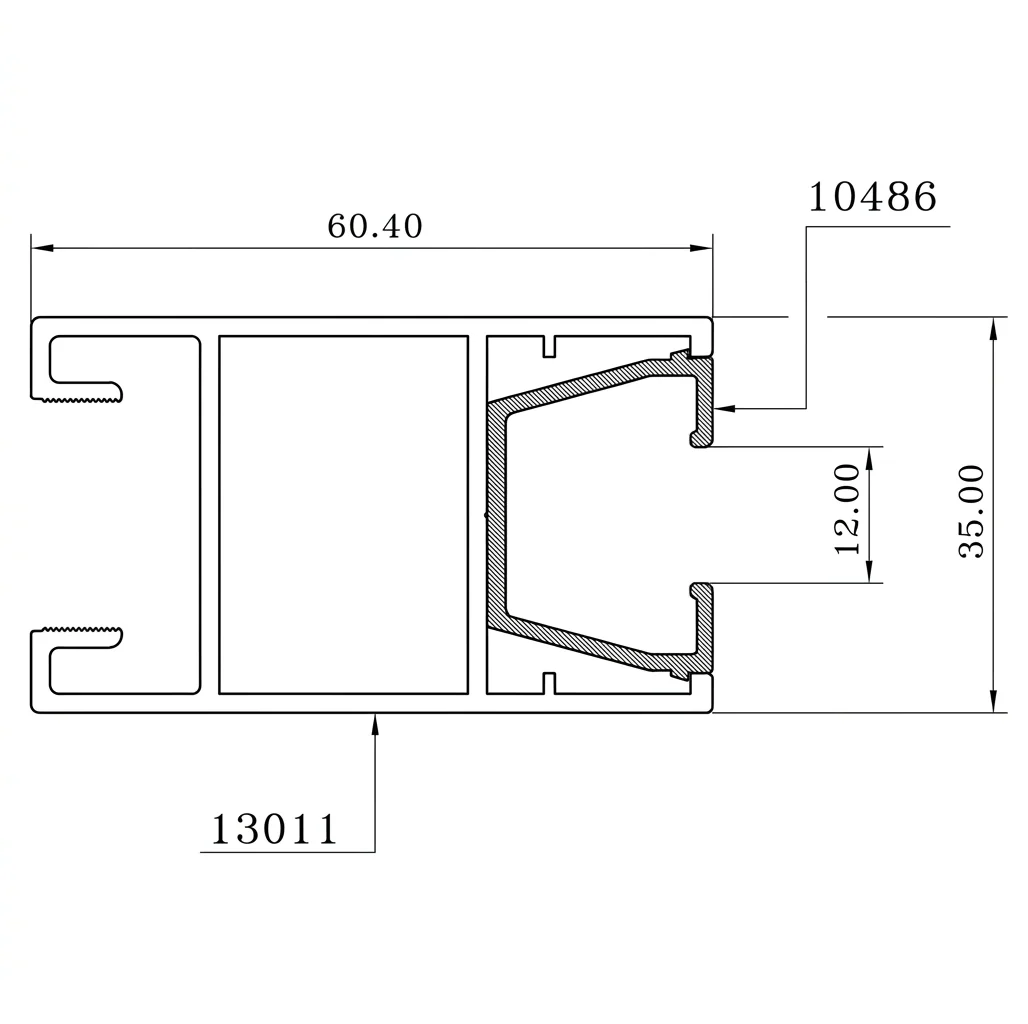

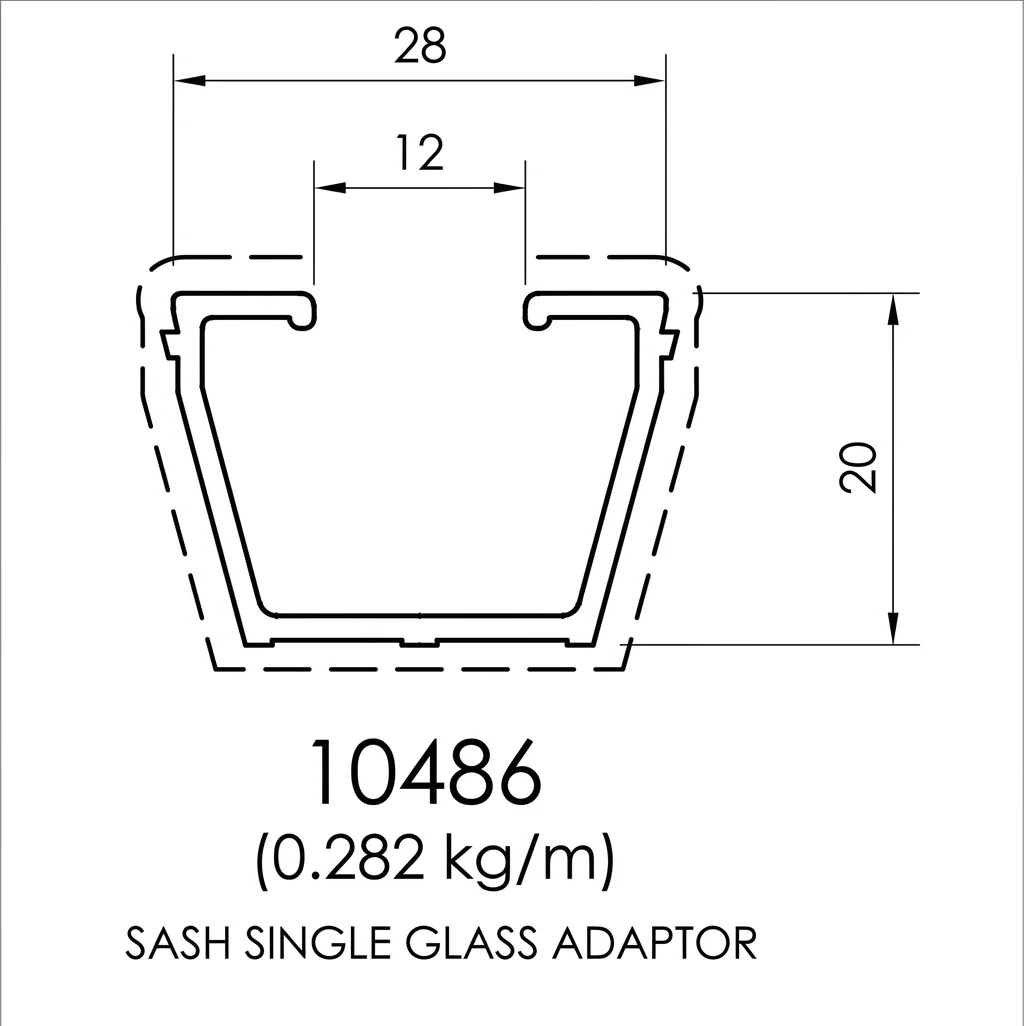

10486: Sash Single Glass Adaptor, 0.282 kg/m, 28 _ 20 mm, internal width 12 mm

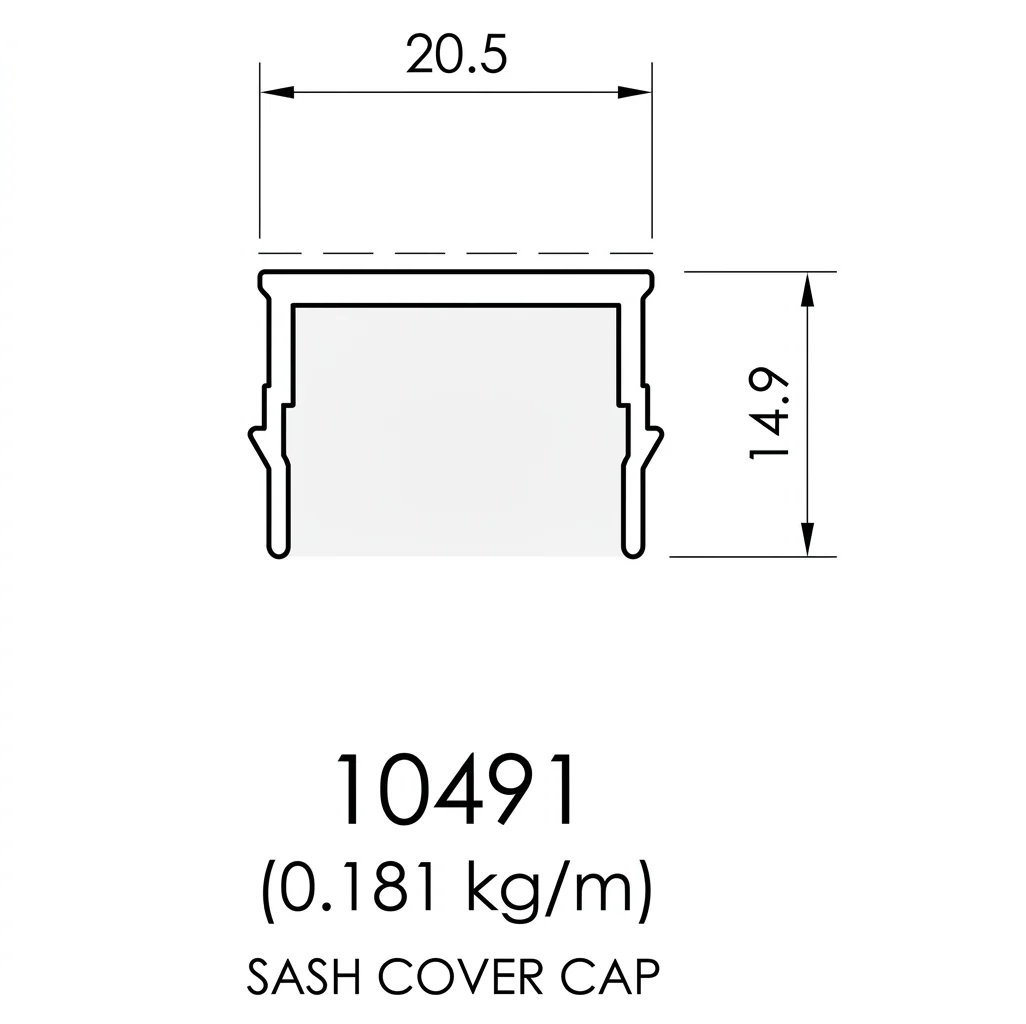

10491: Sash Cover Cap, 0.181 kg/m, 20.50 _ 14.90 mm

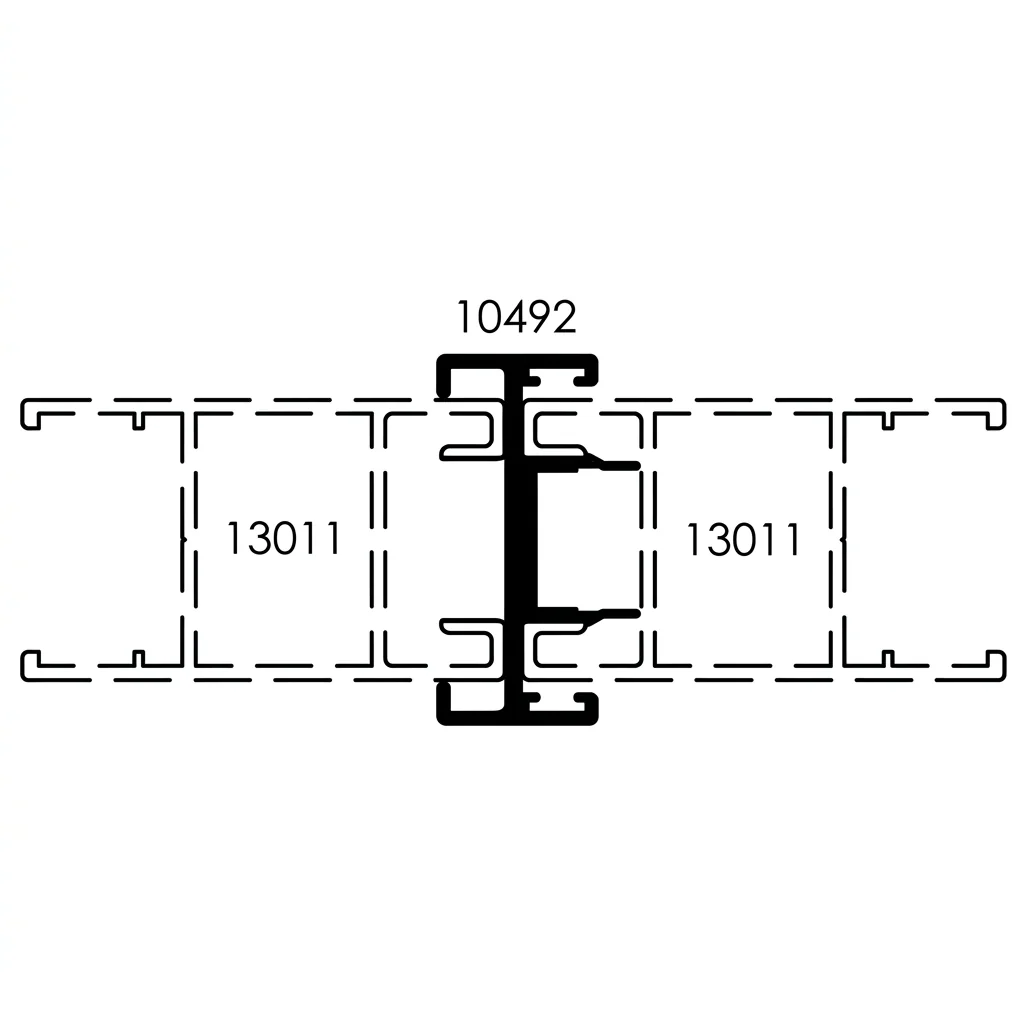

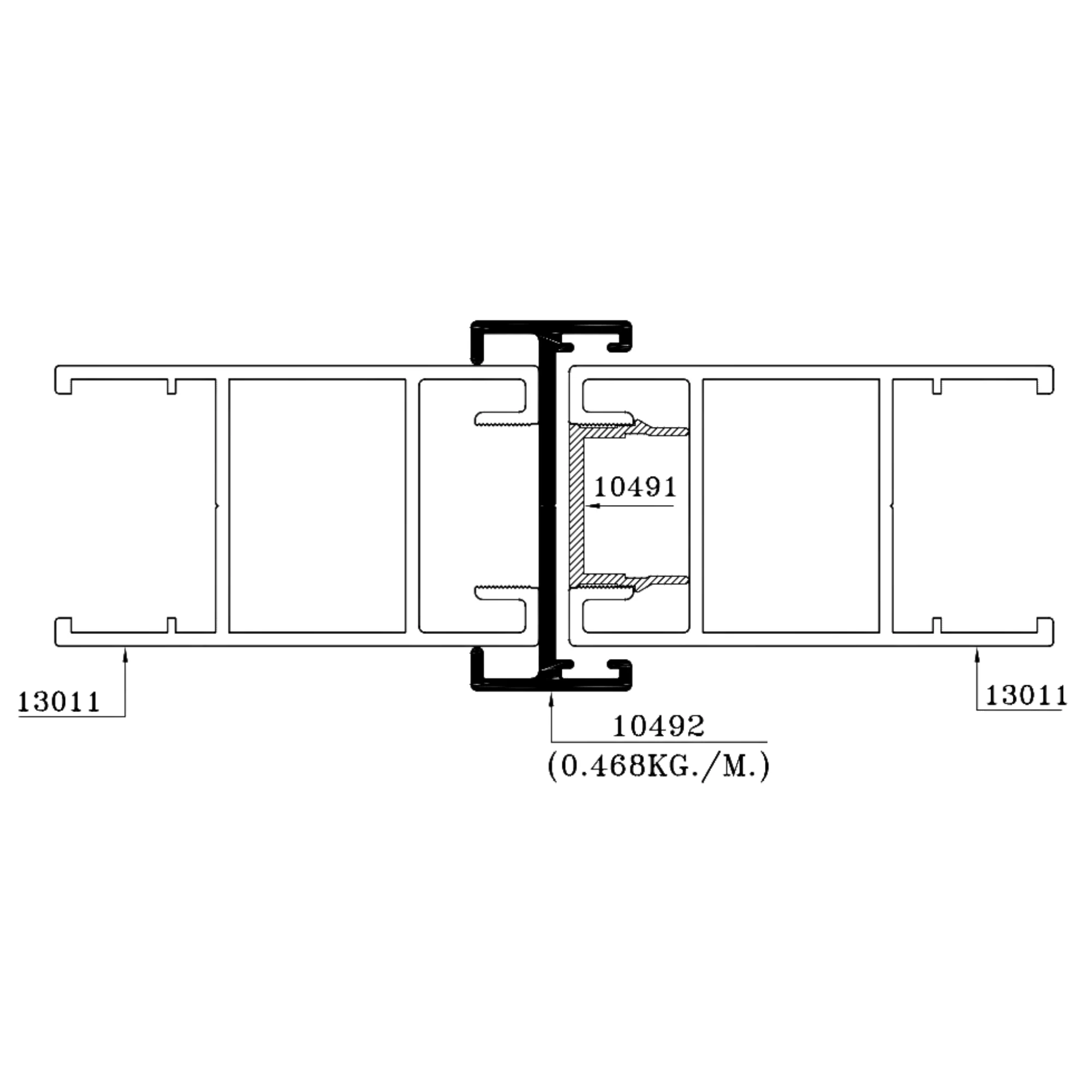

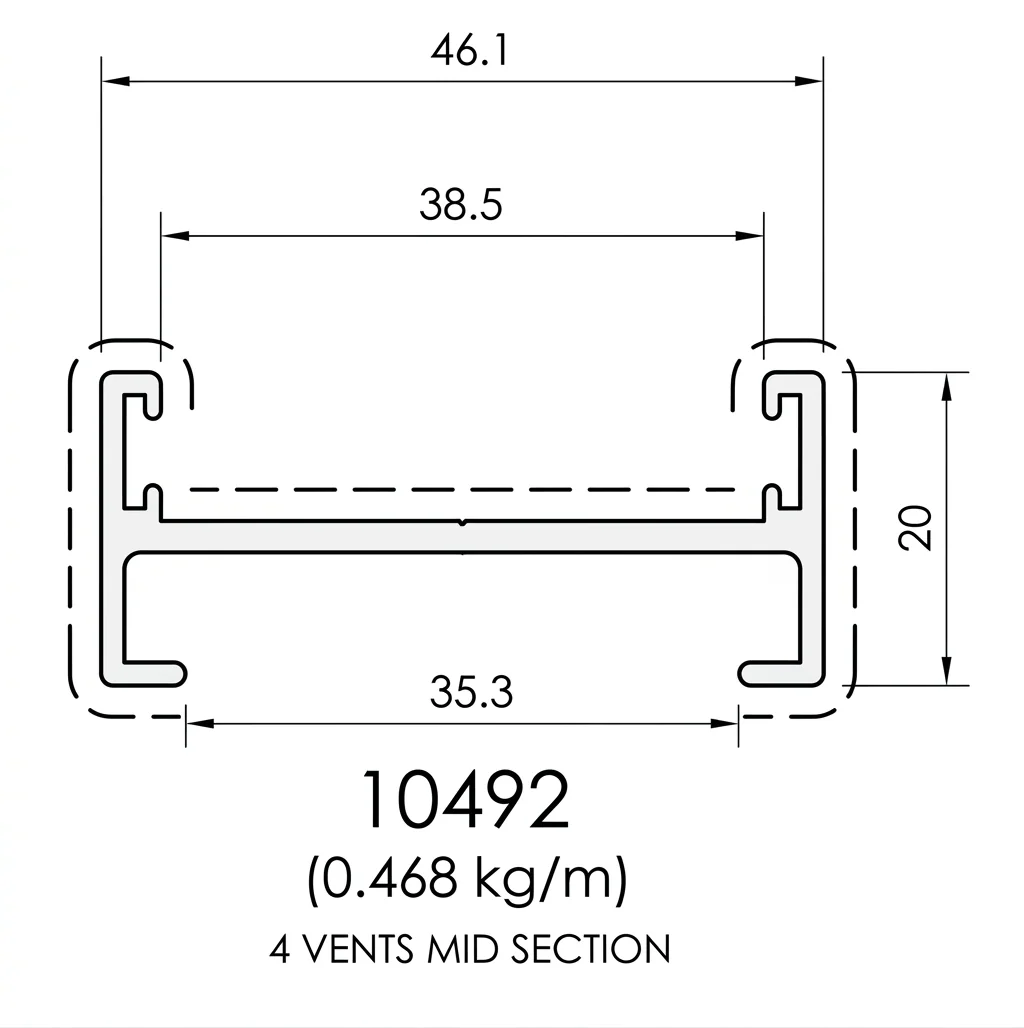

10492: 4-Vents Mid Section Heavy Interlock, 0.468 kg/m, 46.10 _ 38.50 mm

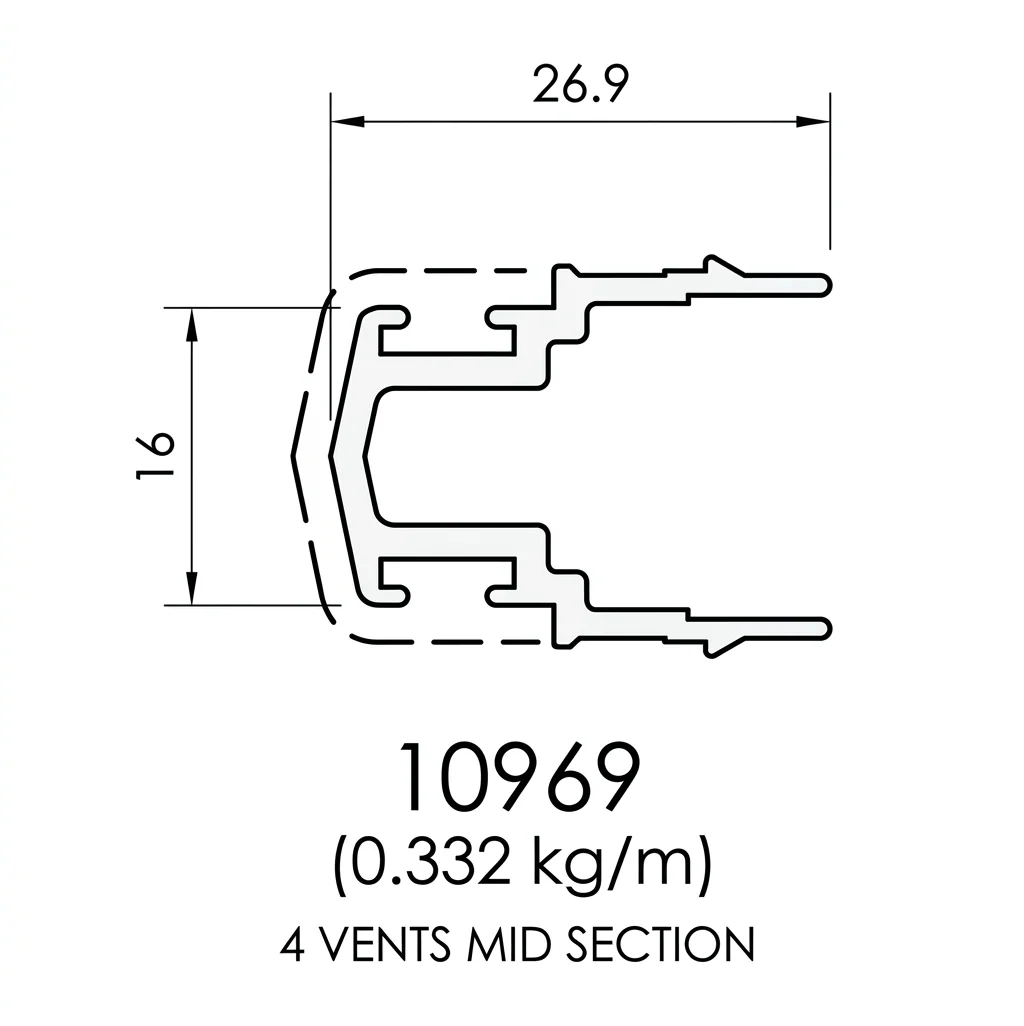

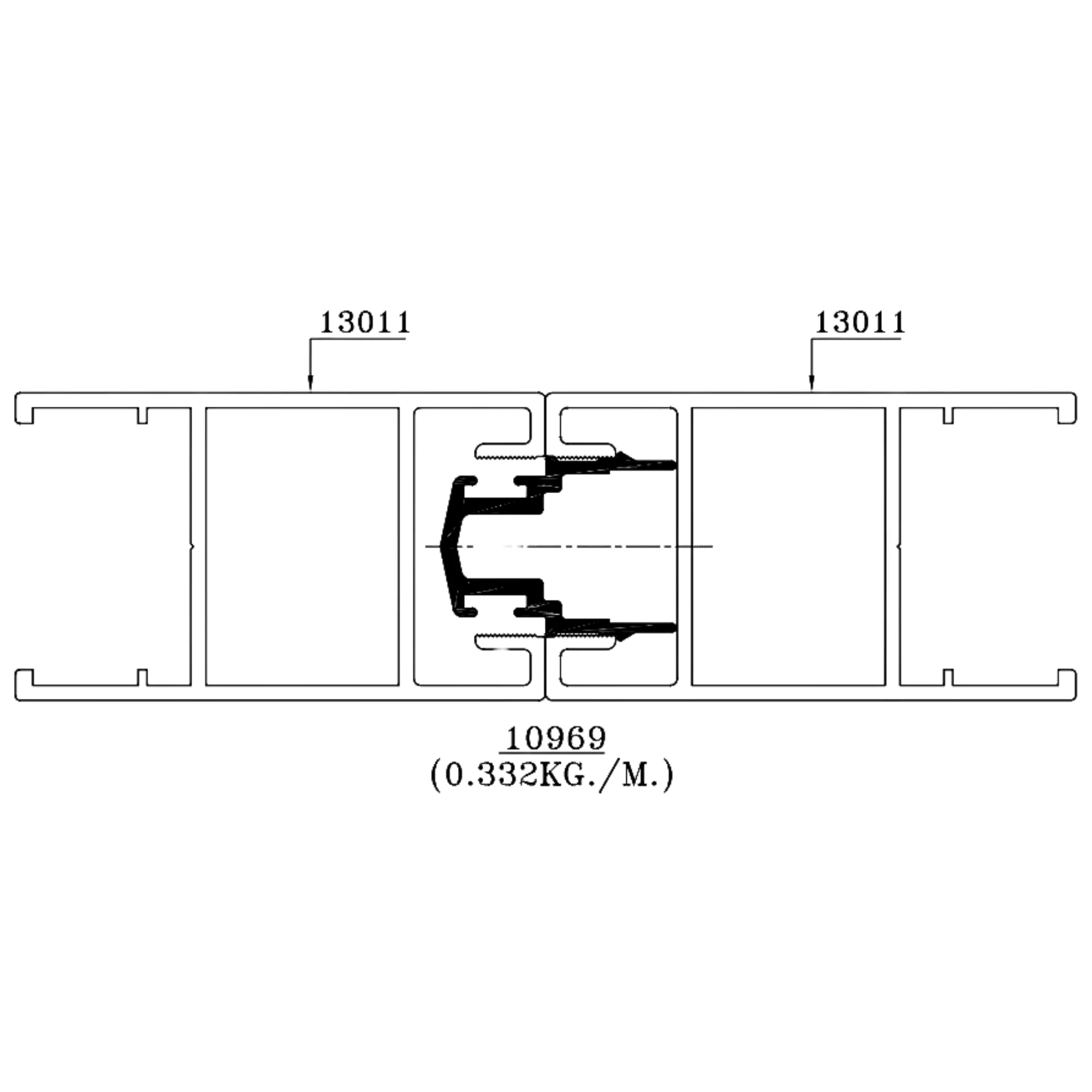

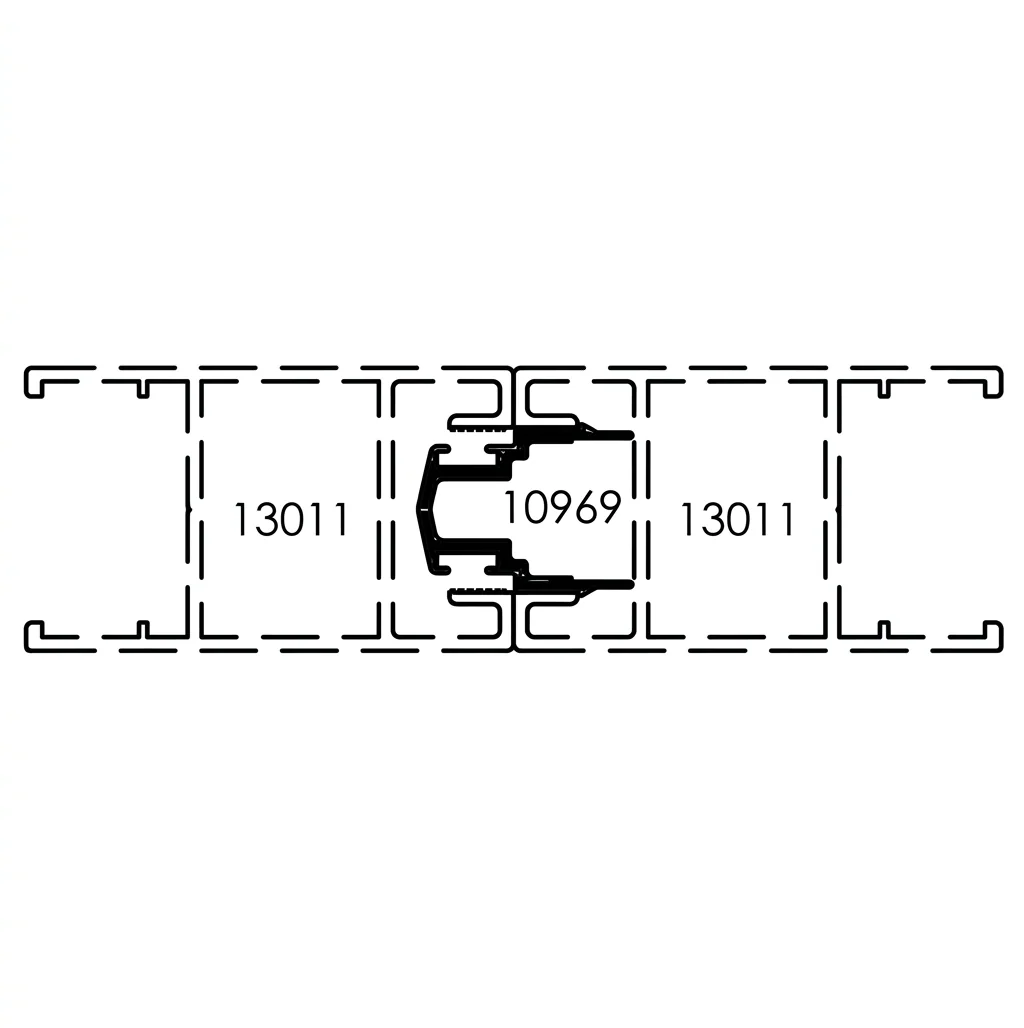

10969: 4-Vents Mid Section Standard Hook, 0.332 kg/m, 26.90 _ 16.00 mm

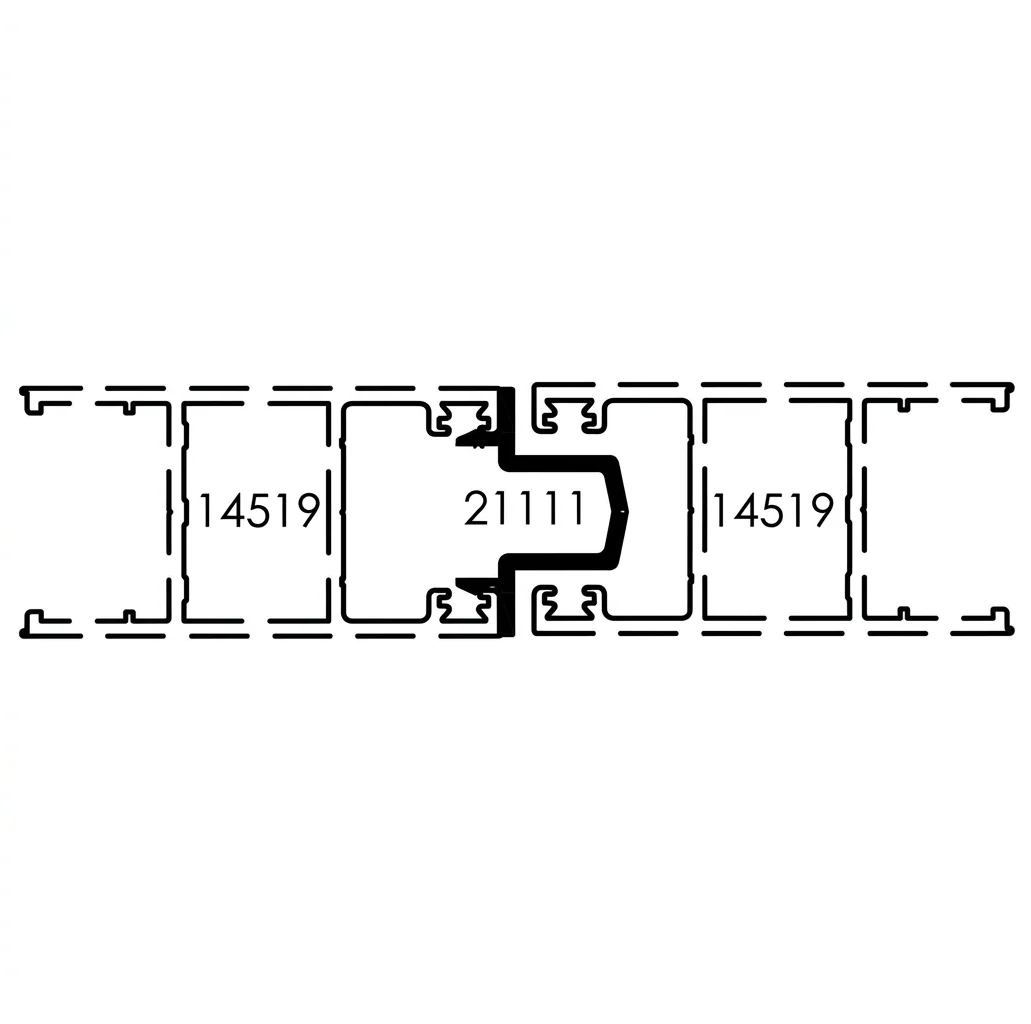

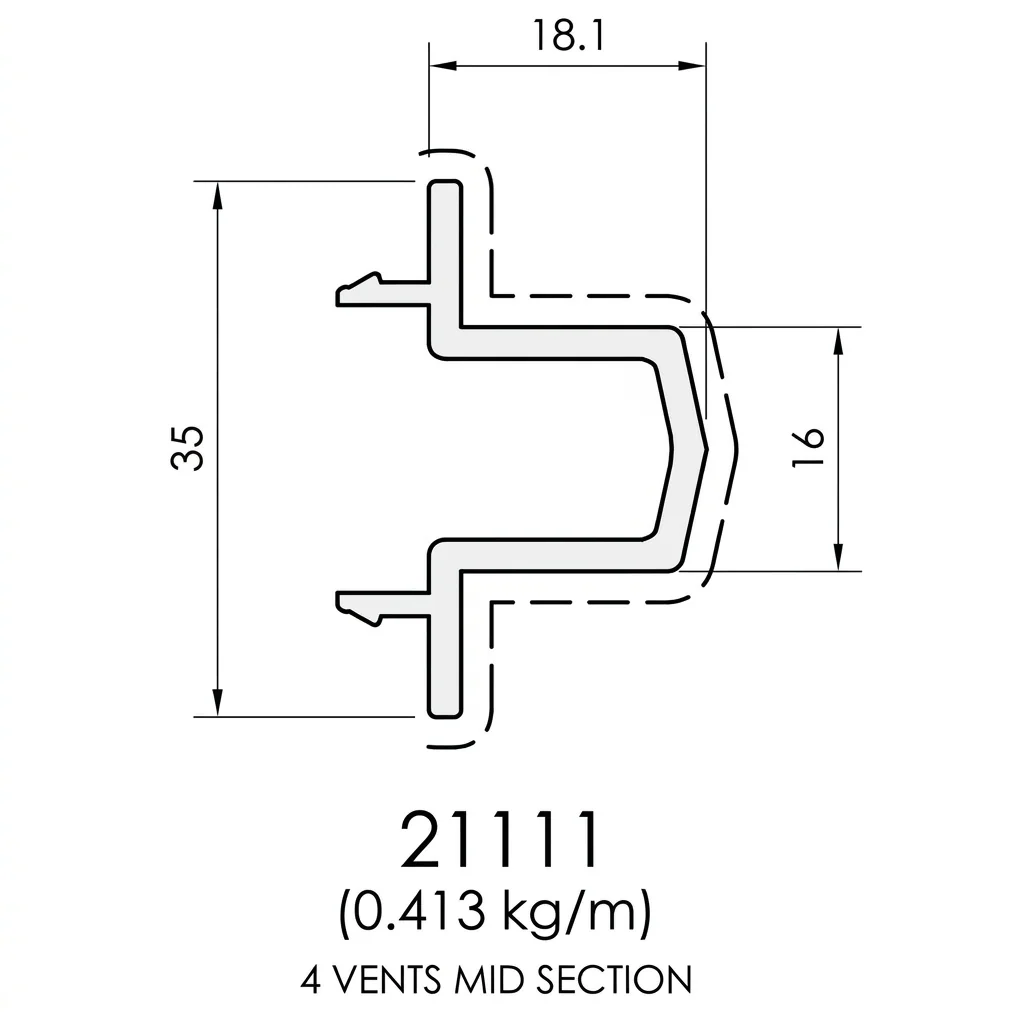

21111: 4-Vents Mid Section Deep Hook, 0.413 kg/m, 35 _ 18.10 mm

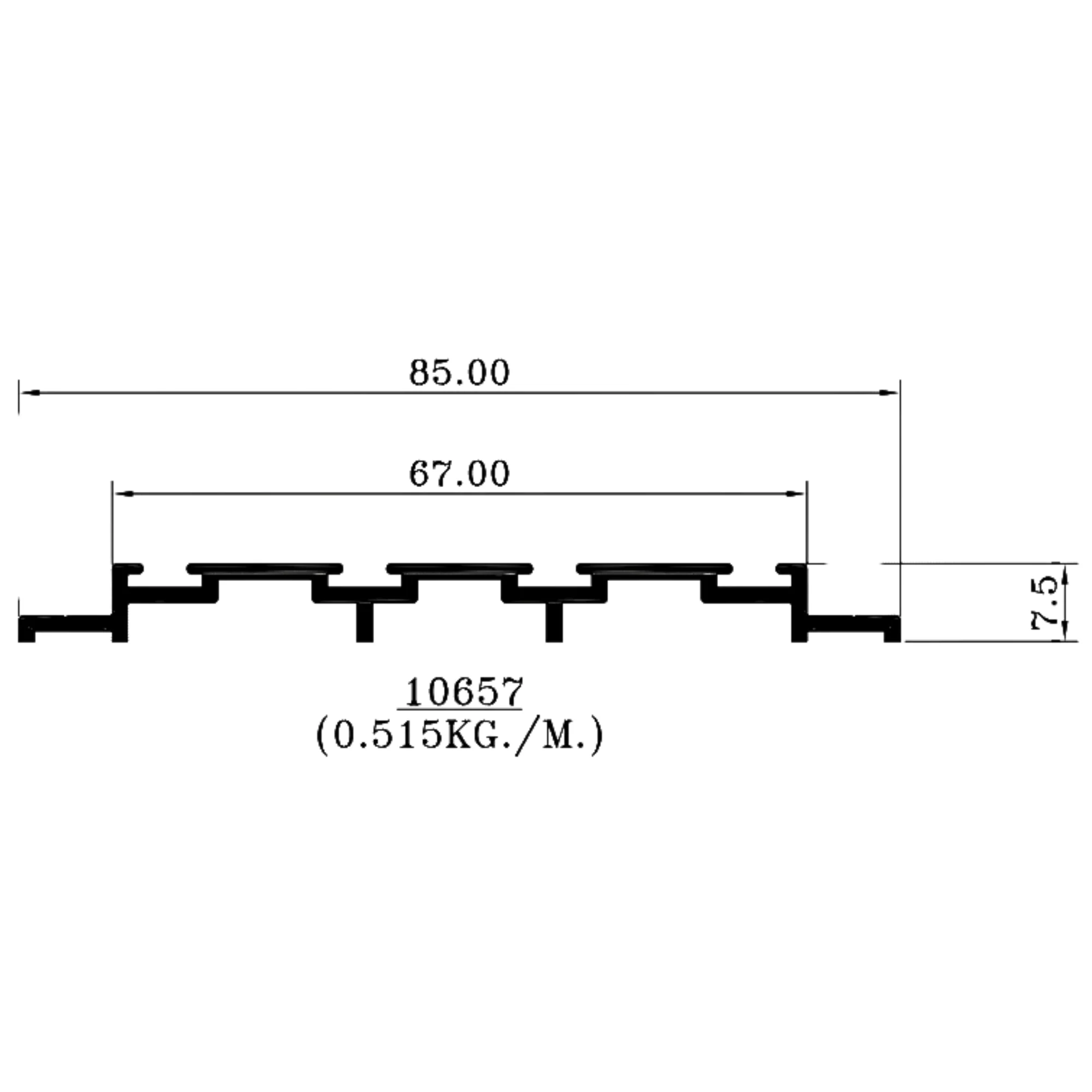

10657: Dust Proof Profile/Track Insulator, 0.515 kg/m, 85 _ 7.50 mm

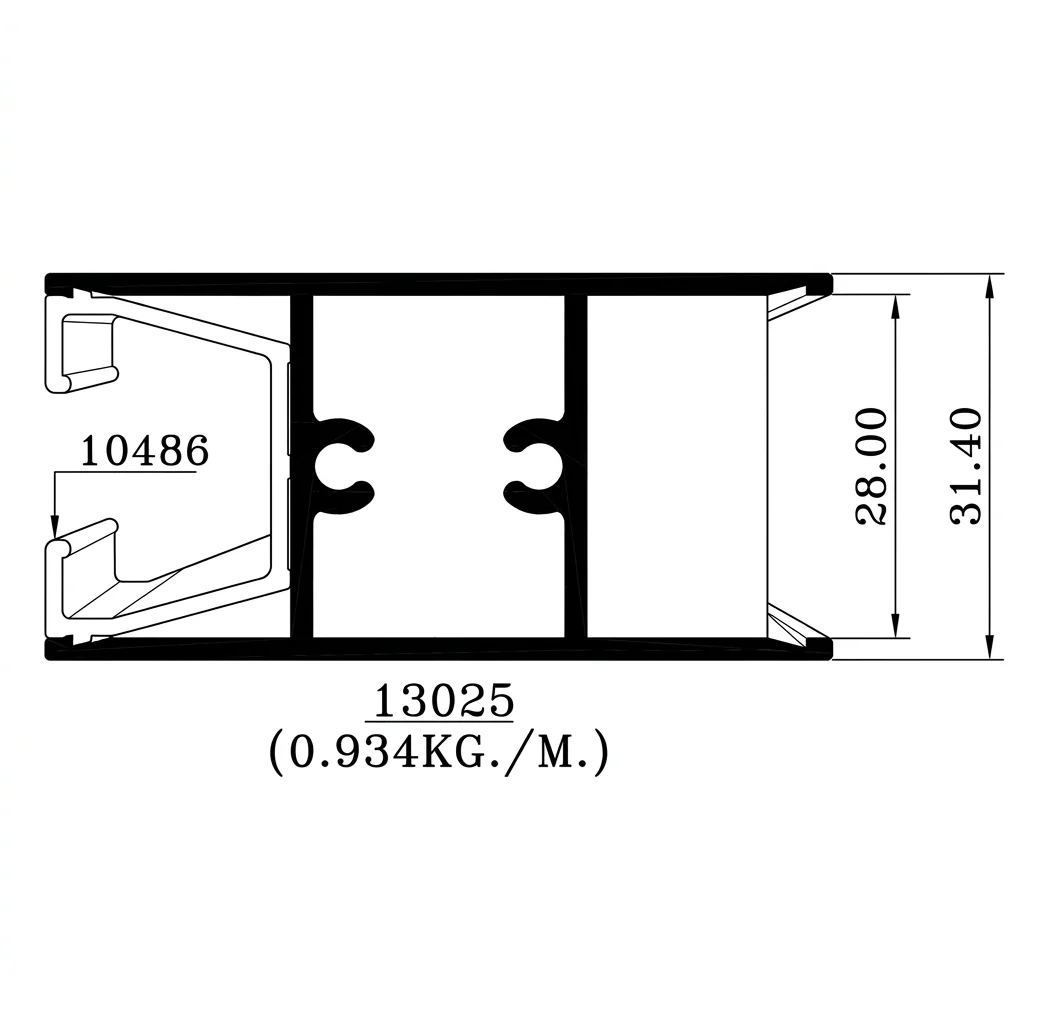

13025: Outer Frame Rail, 0.934 kg/m, height 31.40 mm, base 28 mm

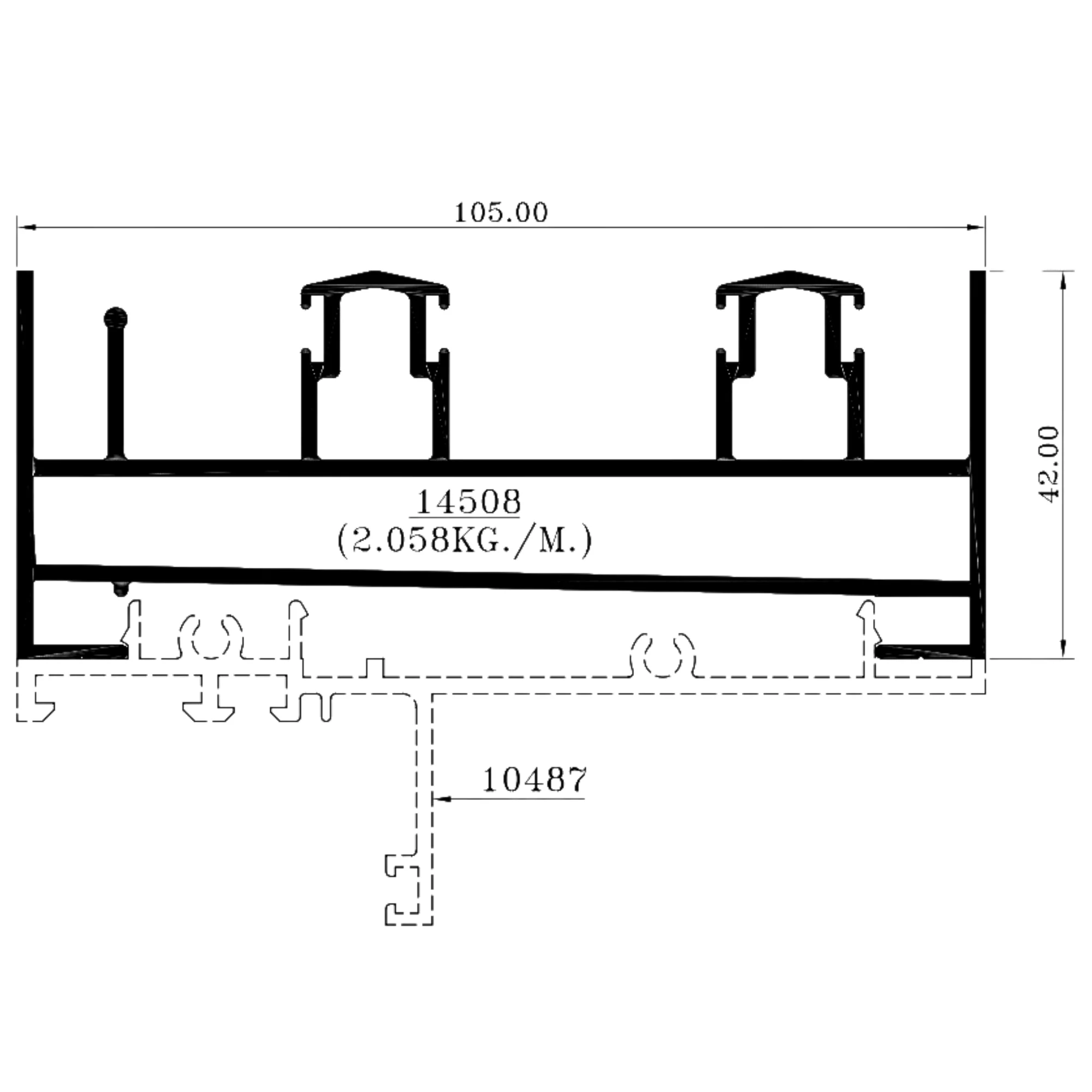

14508: Heavy Duty Bottom Outer Frame, 2.058 kg/m, 105 _ 42 mm
10485: Internal Sash Profile, 0.852 kg/m, 66.40 _ 28 mm
11321: Drip Line/Outer Flashing Trim, 0.251 kg/m, height 22 mm. Geometric tolerances: EN 755-9 and EN 12020-2. Proprietary industrial designs attributed to Gulf Extrusions unauthorized reproduction or third-party disclosure restricted.
