Sliding Systems Family

3-Track & 4-Track Sliding Systems

A technical collection of aluminum profiles engineered for high-occupancy fenestration systems. The system provides wider architectural footprints with structural track widths of 137.50 mm for 3-track configurations and 178.00 mm for 4-track configurations, with a standardized 49 mm frame height. It is designed to maximize openable panel surface area while integrating deep structural tracks, multi-rail weather seals and dedicated interlocking stile components for structural integrity.

Parts explorer (8)

Assembly 10654 + 81725

Die numbers:: 10654, 81725

Multi-profile assembly

System features

Multi-Panel Expansion
Standardized 1.5–1.6 mm nominal wall thickness
Deep Anti-Lift Track Rails
Bottom drainage relief
Uniform Component Interlock
compatibility with weather strips, PVC slider tracks and centralized hardware channels

Applications

Large-scale residential balconies
high-end patio transitions
resort and luxury hospitality perimeter walls
commercial office partitions
flexible interior division systems

Overview

Material: 6000-series architectural aluminum alloy, typically 6063-T5 or 6063-T6
Finish Options: Clear / Color Anodized, 15–25 microns / Powder Coated, Qualicoat standard, 60–80 microns / PVDF / Fluorocarbon coating / Sublimated Wood-Grain finishes
System Size: 3-track frame width: 137.50 mm; 4-track frame width: 178.00 mm; standard frame height: 49.00 mm; component widths include 11.5, 31.4, 33.05, 35, 40 and 77 mm

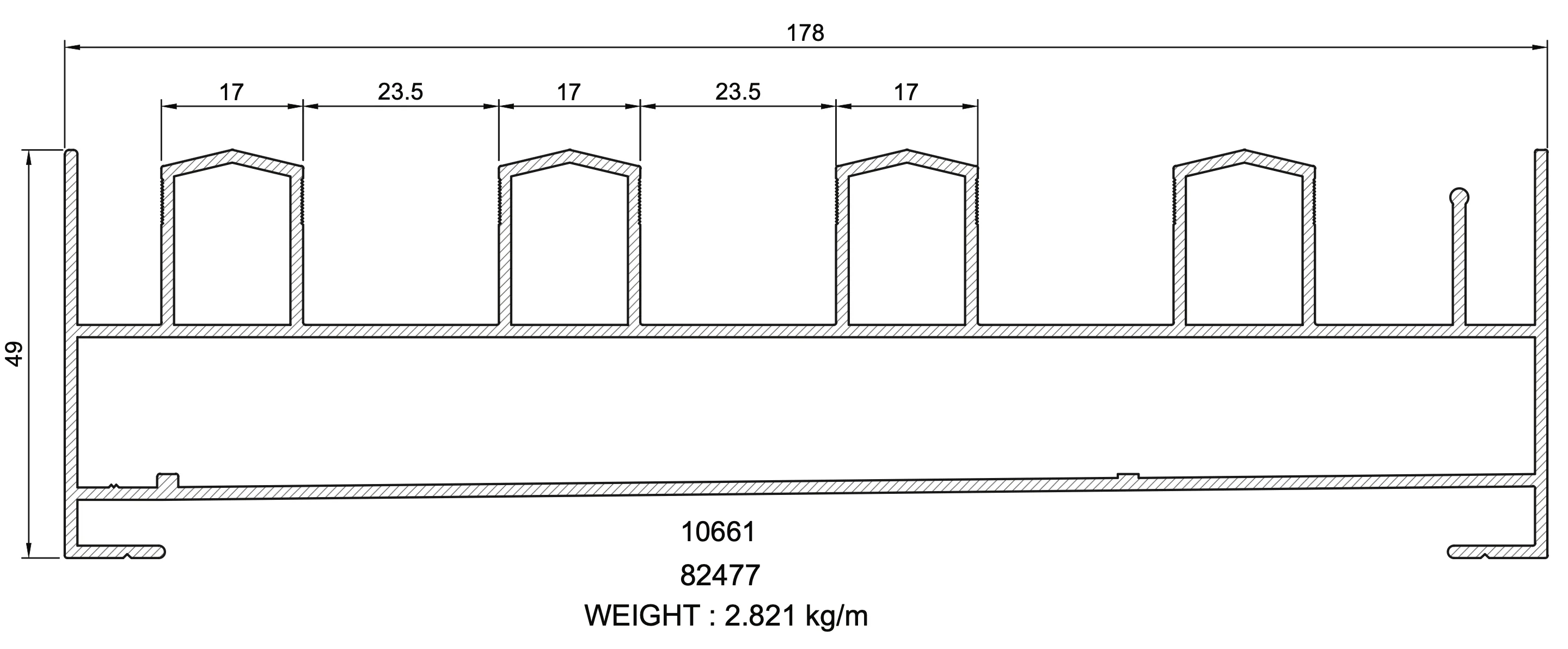

10661/84277 4-Track Bottom Outer Frame: 2.821 kg/m, height 49 mm, width 178 mm, four 23.5 mm track spaces with 17 mm steps

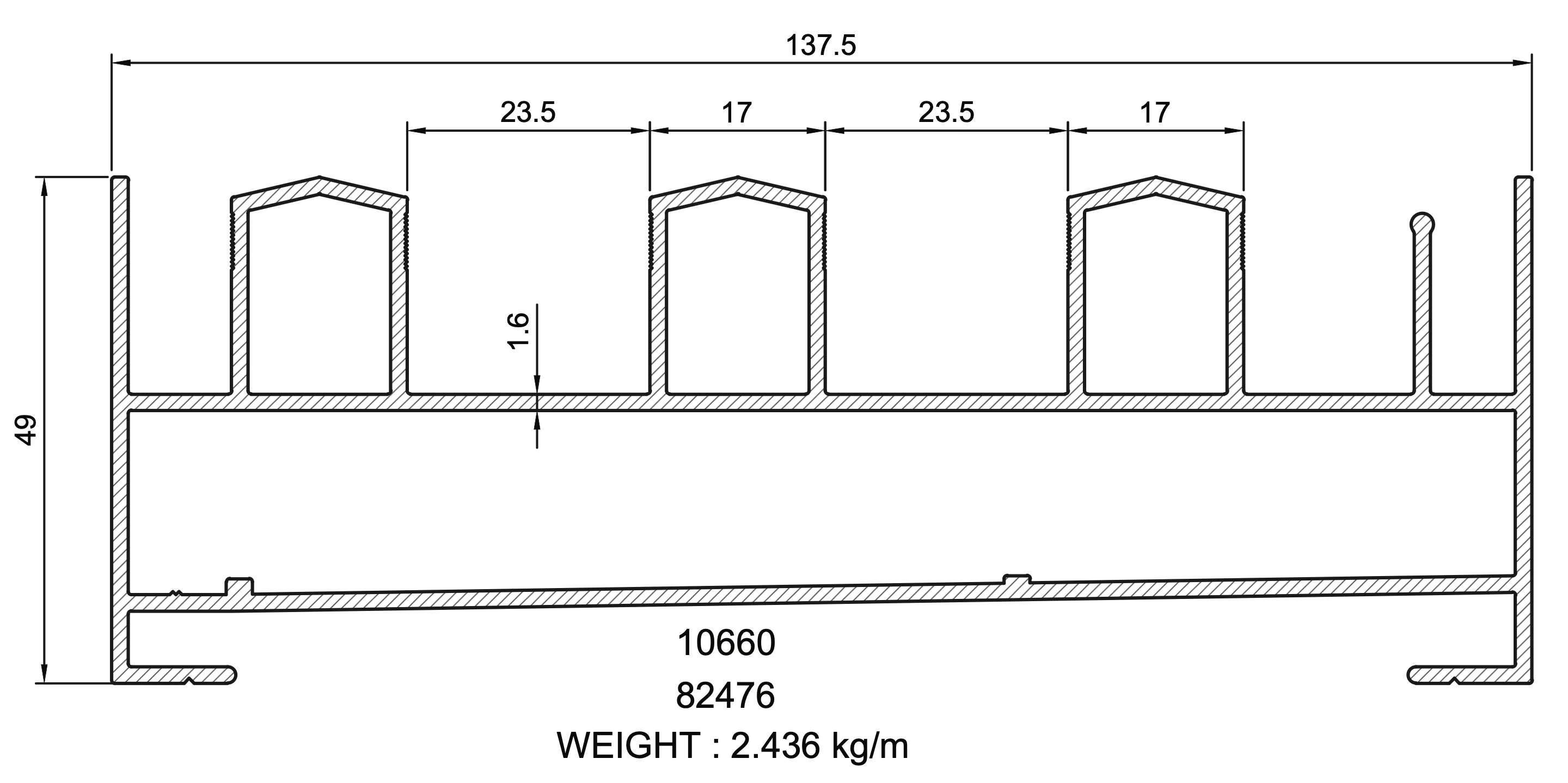

10660/82476 3-Track Bottom Outer Frame: 2.436 kg/m, height 49 mm, width 137.50 mm

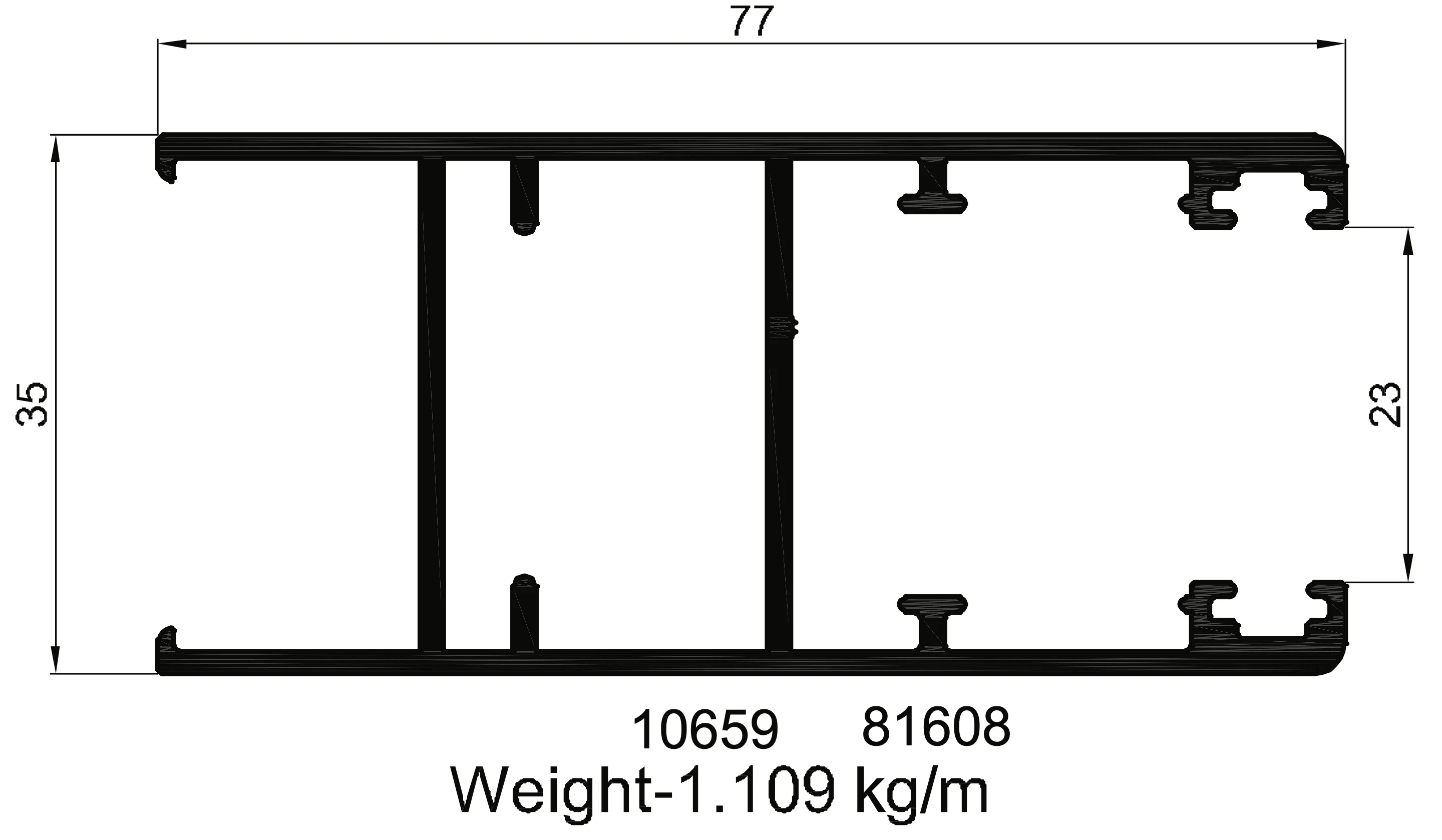

10659/81608 Side Frame/Track: 1.109 kg/m, height 35 mm, width 77 mm, internal track pocket depth 23 mm

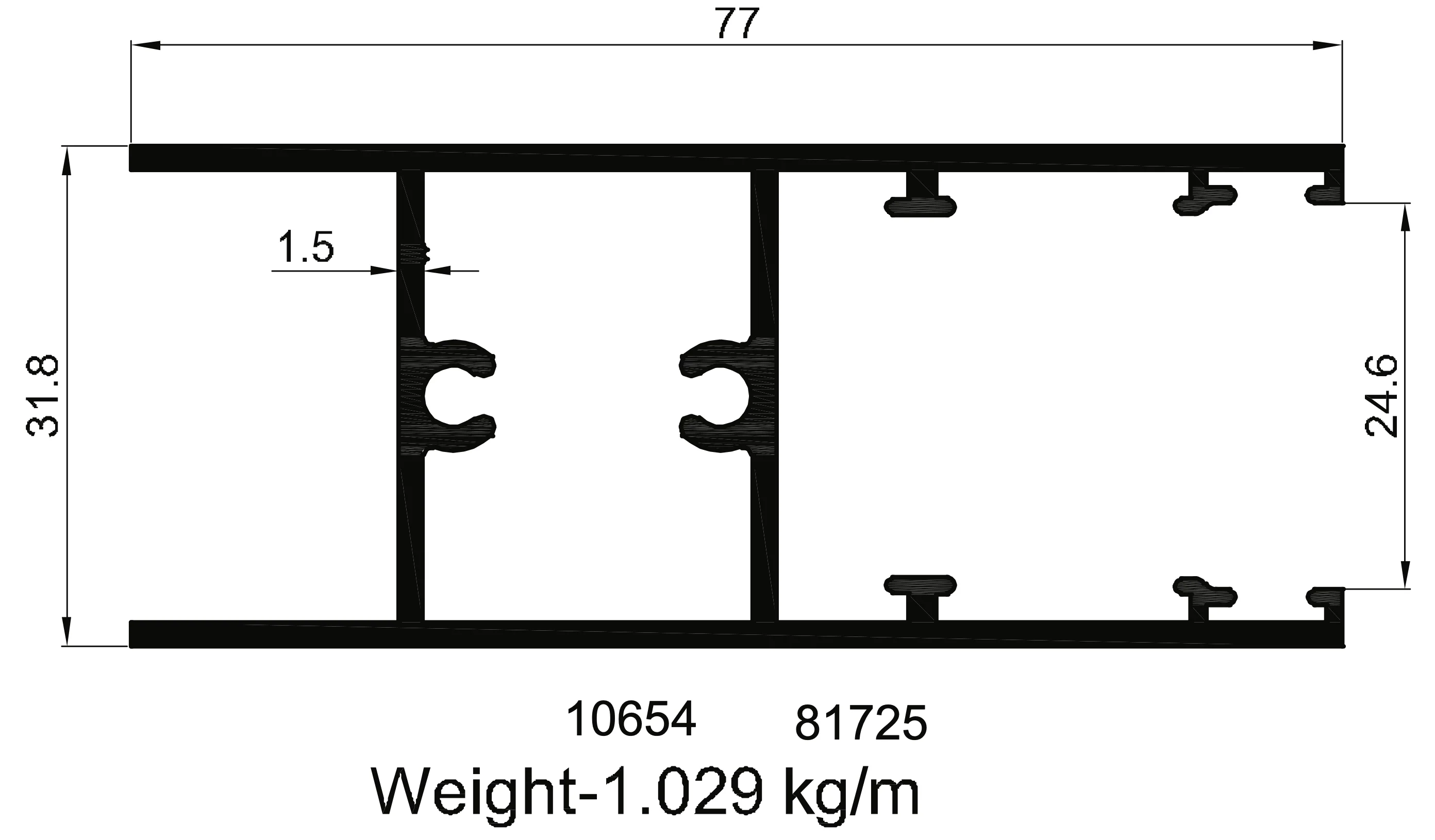

10654/81725 Top/Side Frame: 1.029 kg/m, height 31.8 mm, width 77 mm, guide pocket depth 24.6 mm, wall thickness 1.5 mm

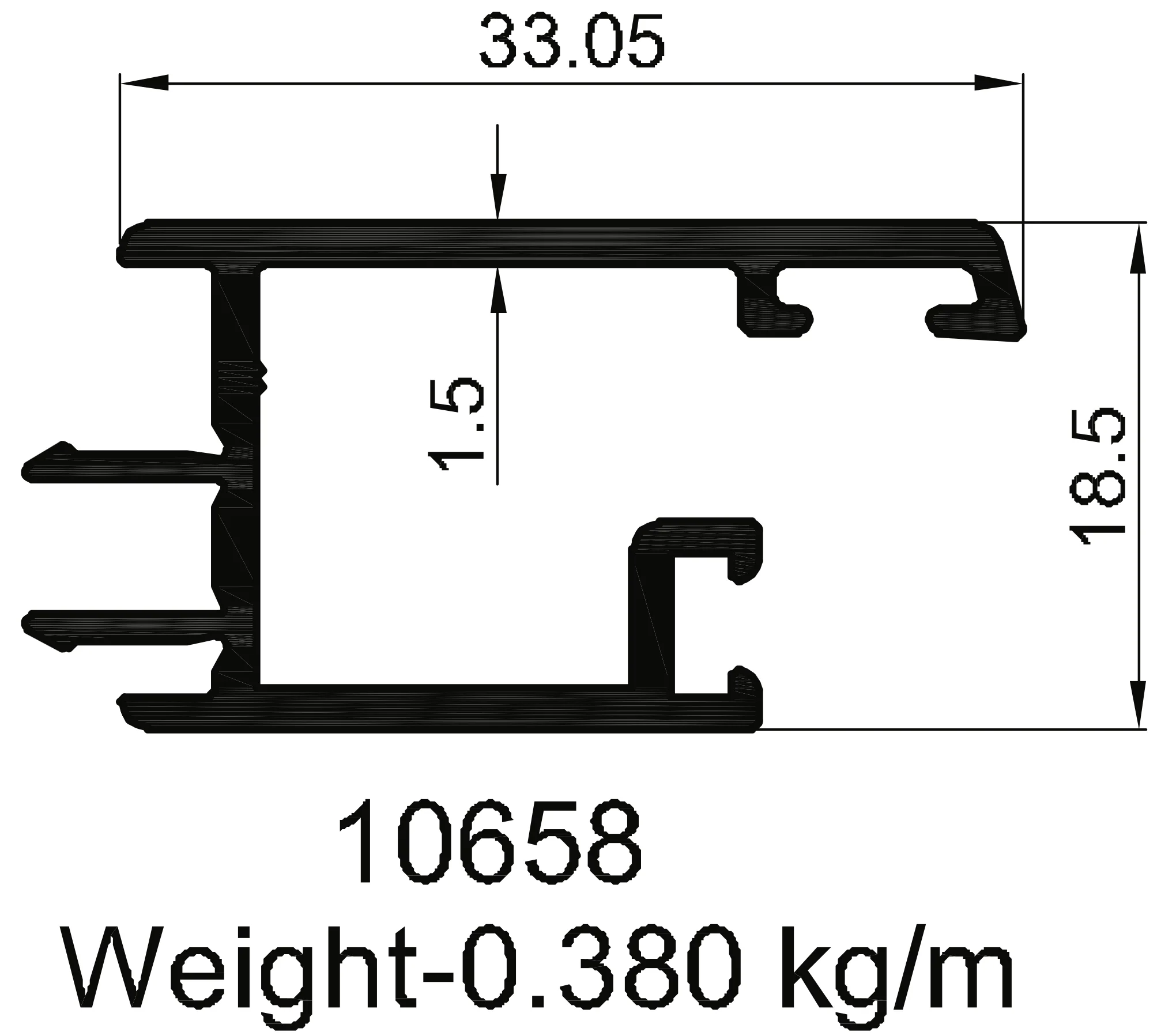

10658 Sash/Interlocking Profile: 0.380 kg/m, width 33.05 mm, depth 18.5 mm, wall thickness 1.5 mm

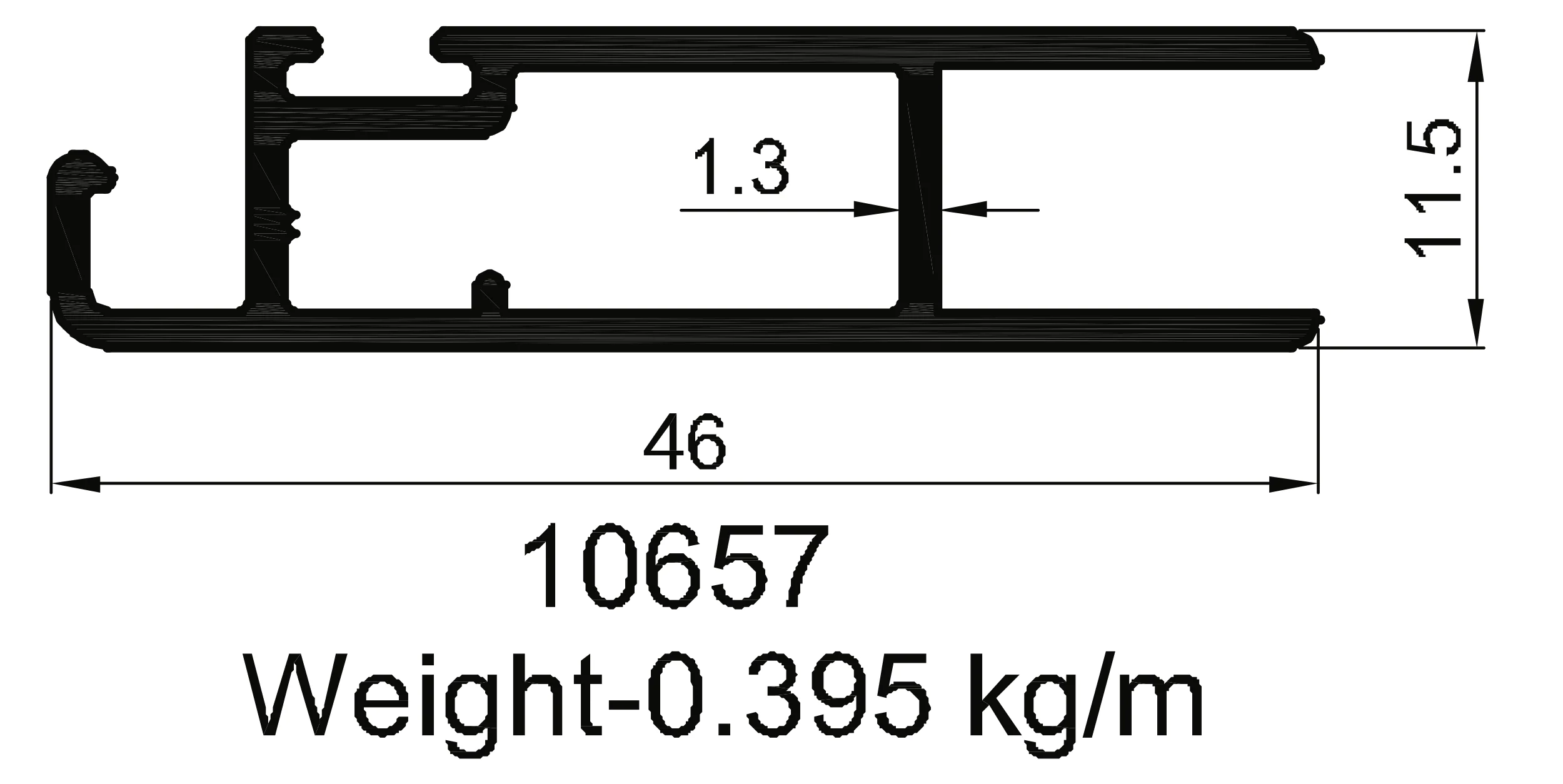

10657 Glazing/Sash Component: 0.395 kg/m, width 46 mm, depth 11.5 mm, wall thickness 1.3 mm

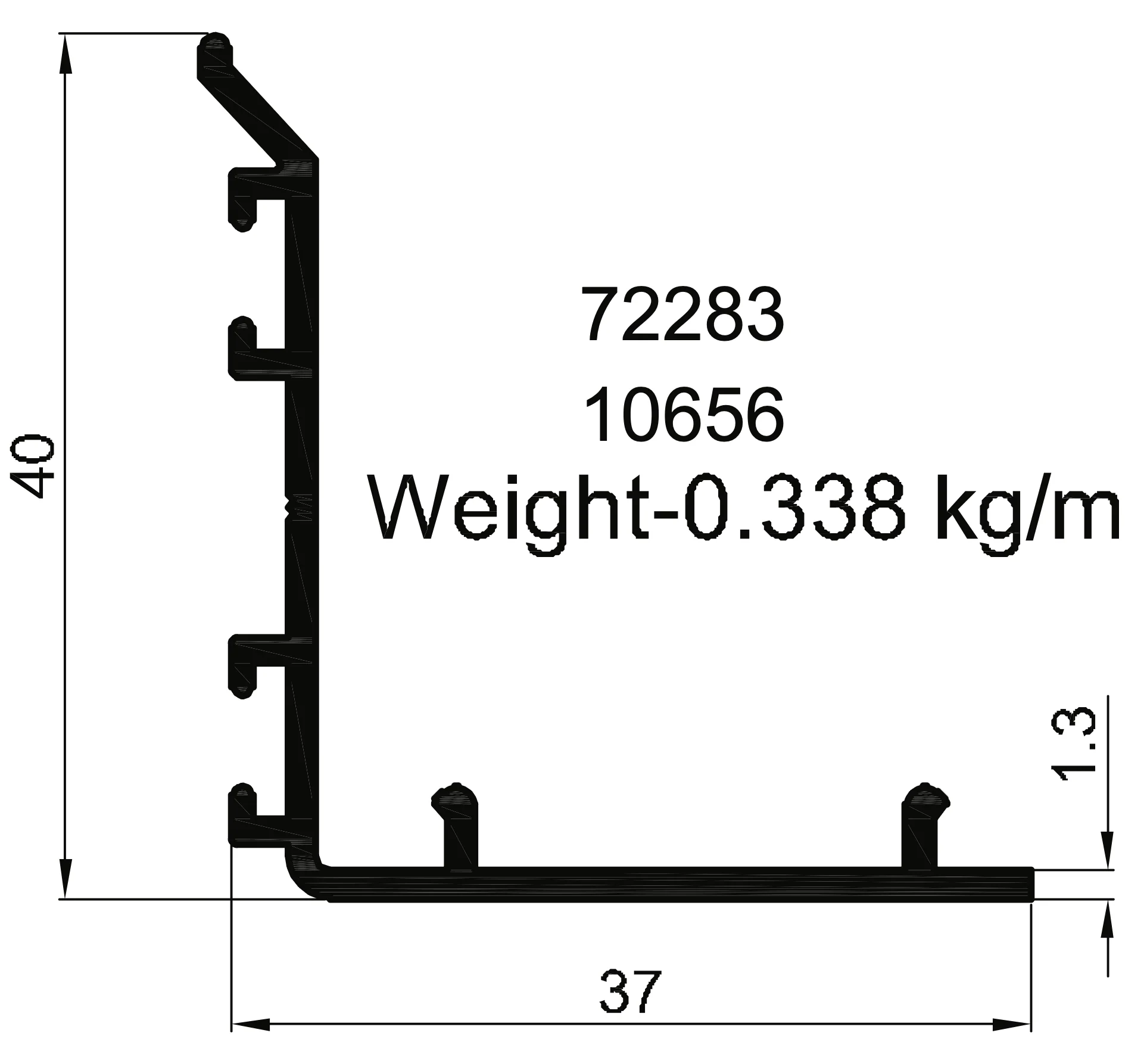

72283/10656 Angle Adapter/Trim: 0.338 kg/m, 40 _ 37 mm L-profile, wall thickness 1.3 mm

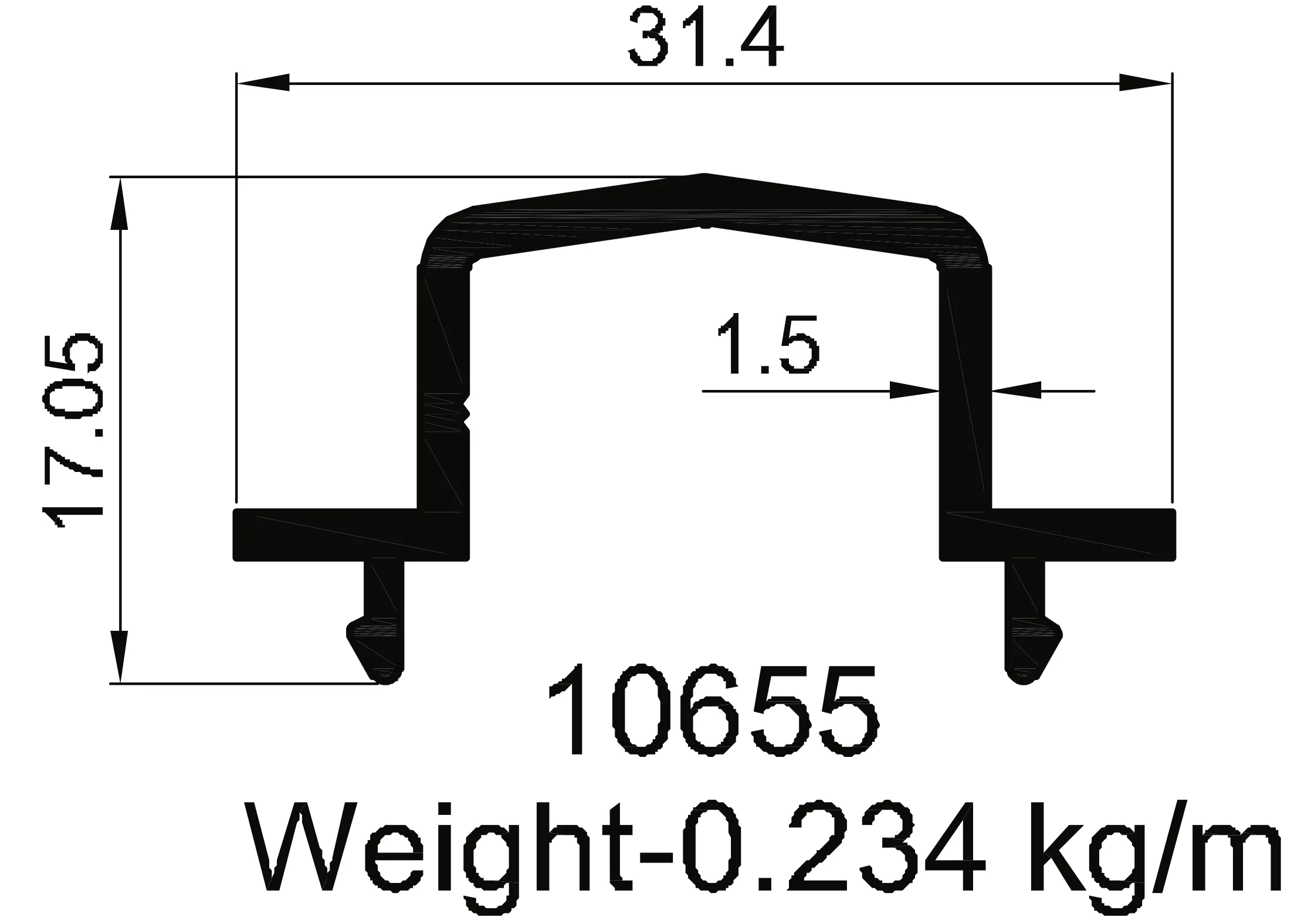

10655 Interlock/Stile: 0.234 kg/m, width 31.4 mm, depth 17.05 mm, wall thickness 1.5 mm.
