4.5 cm Hinged Window Series

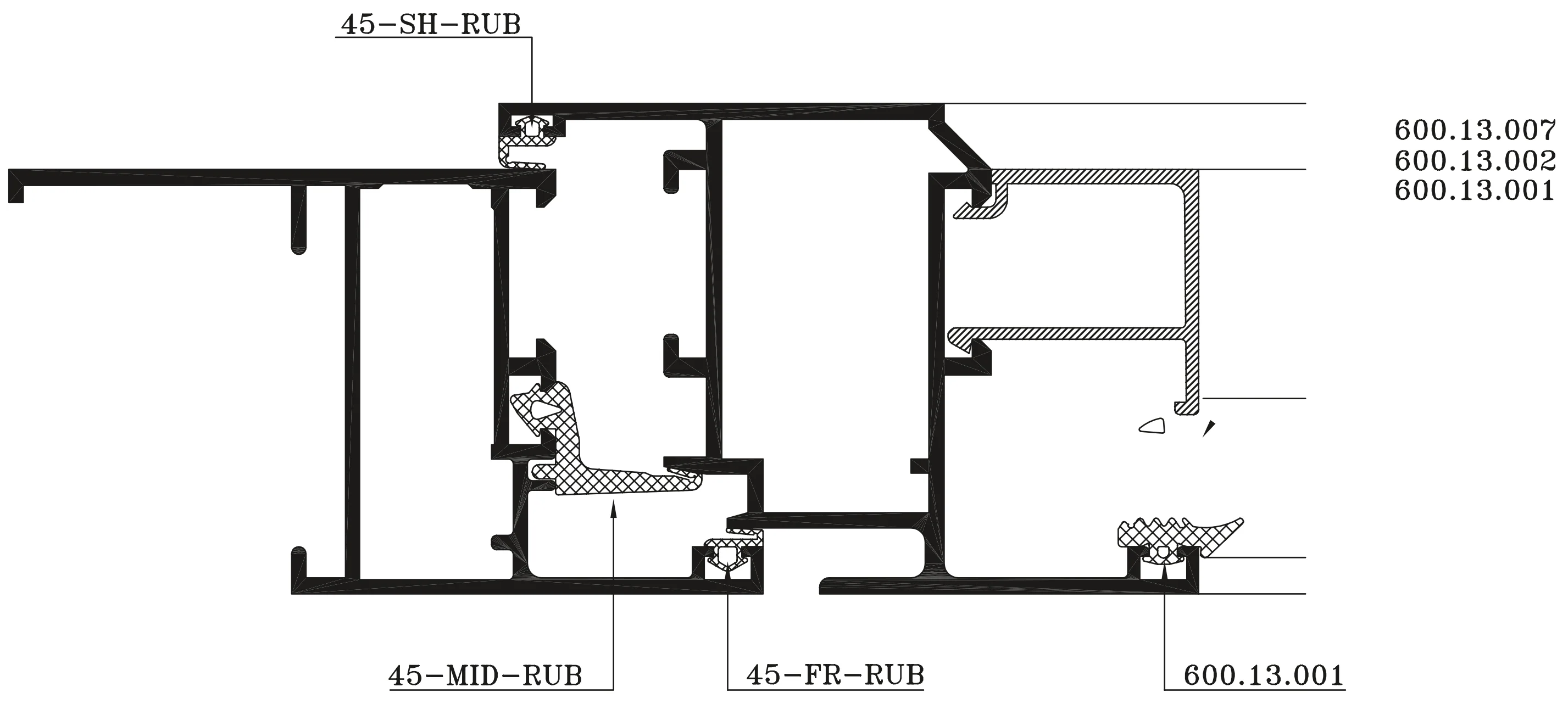

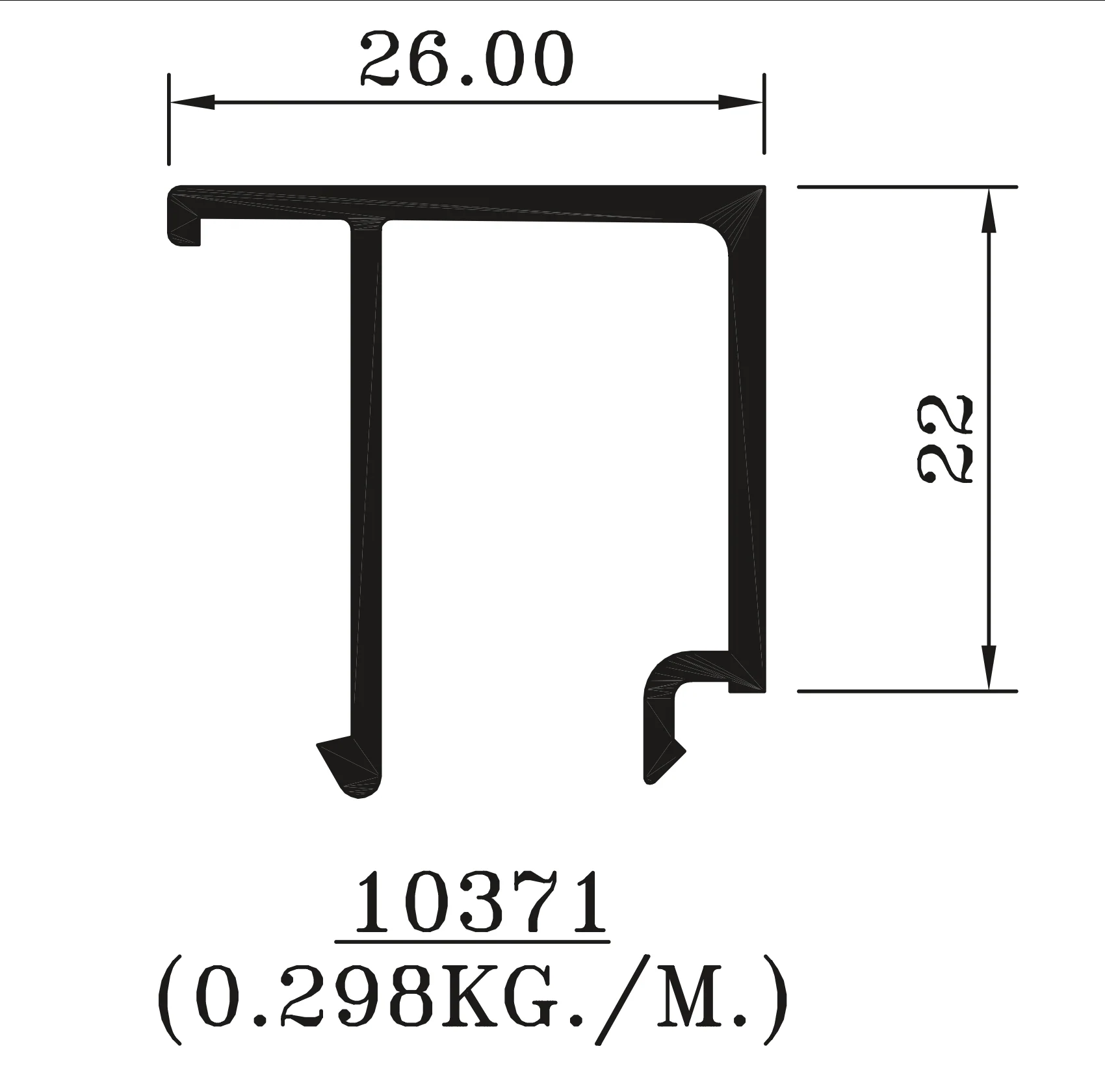

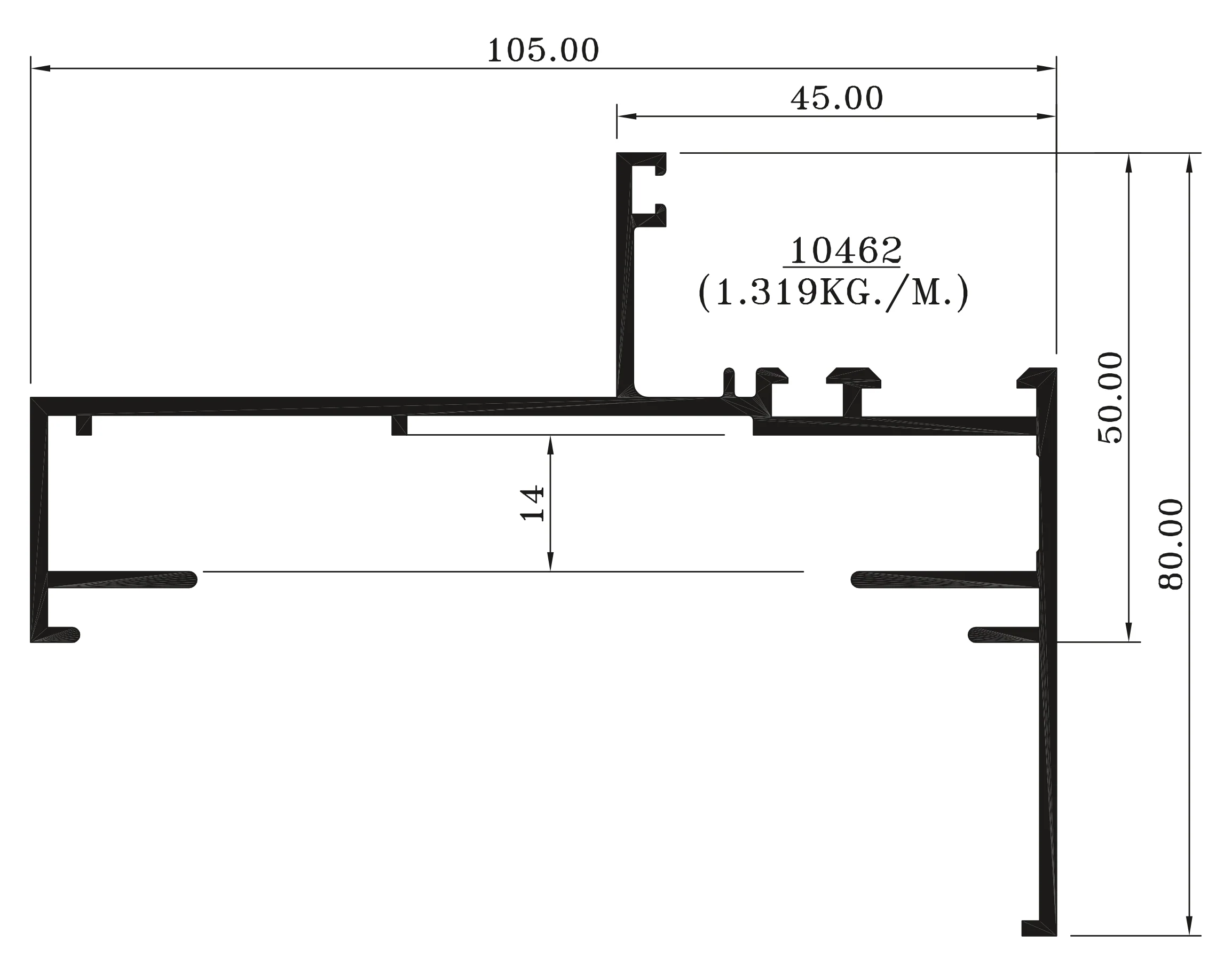

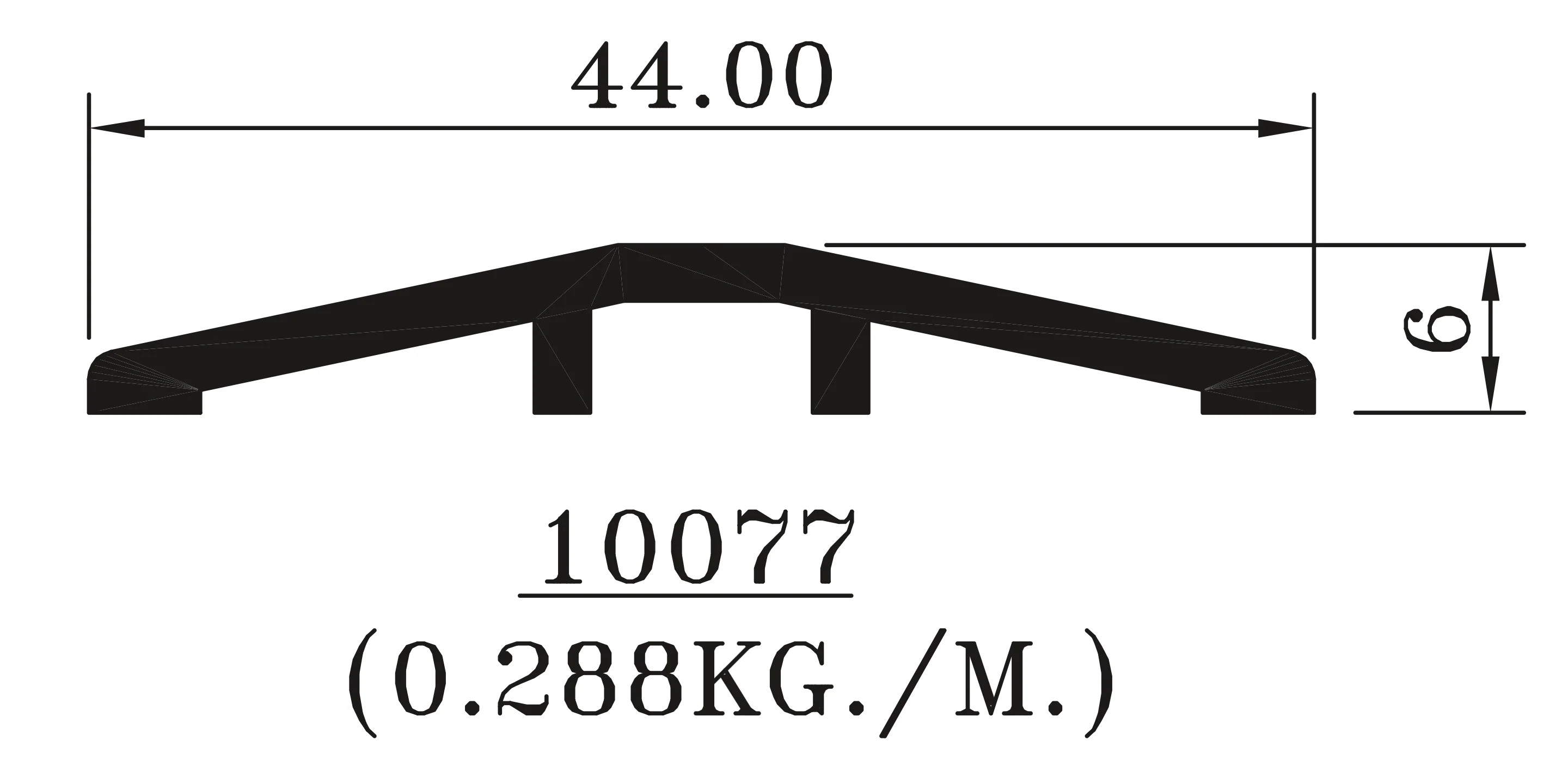

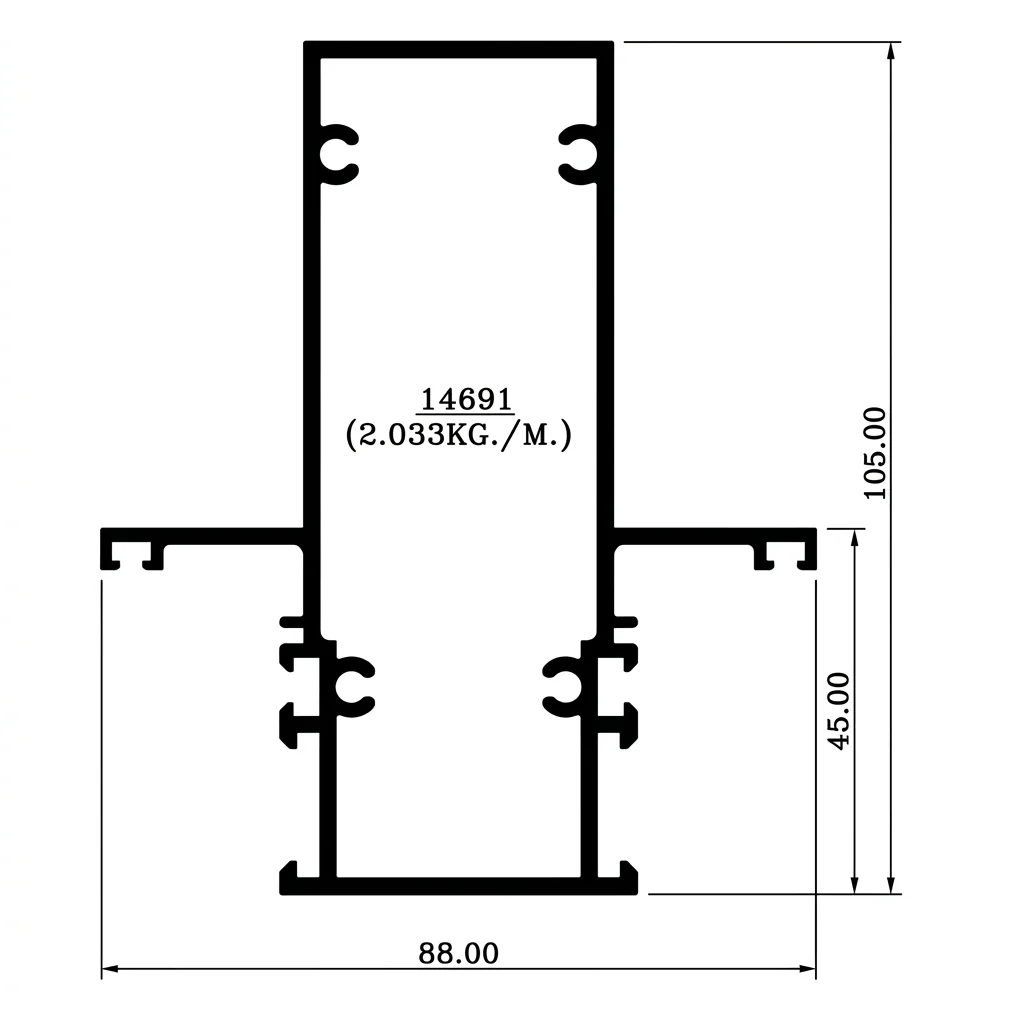

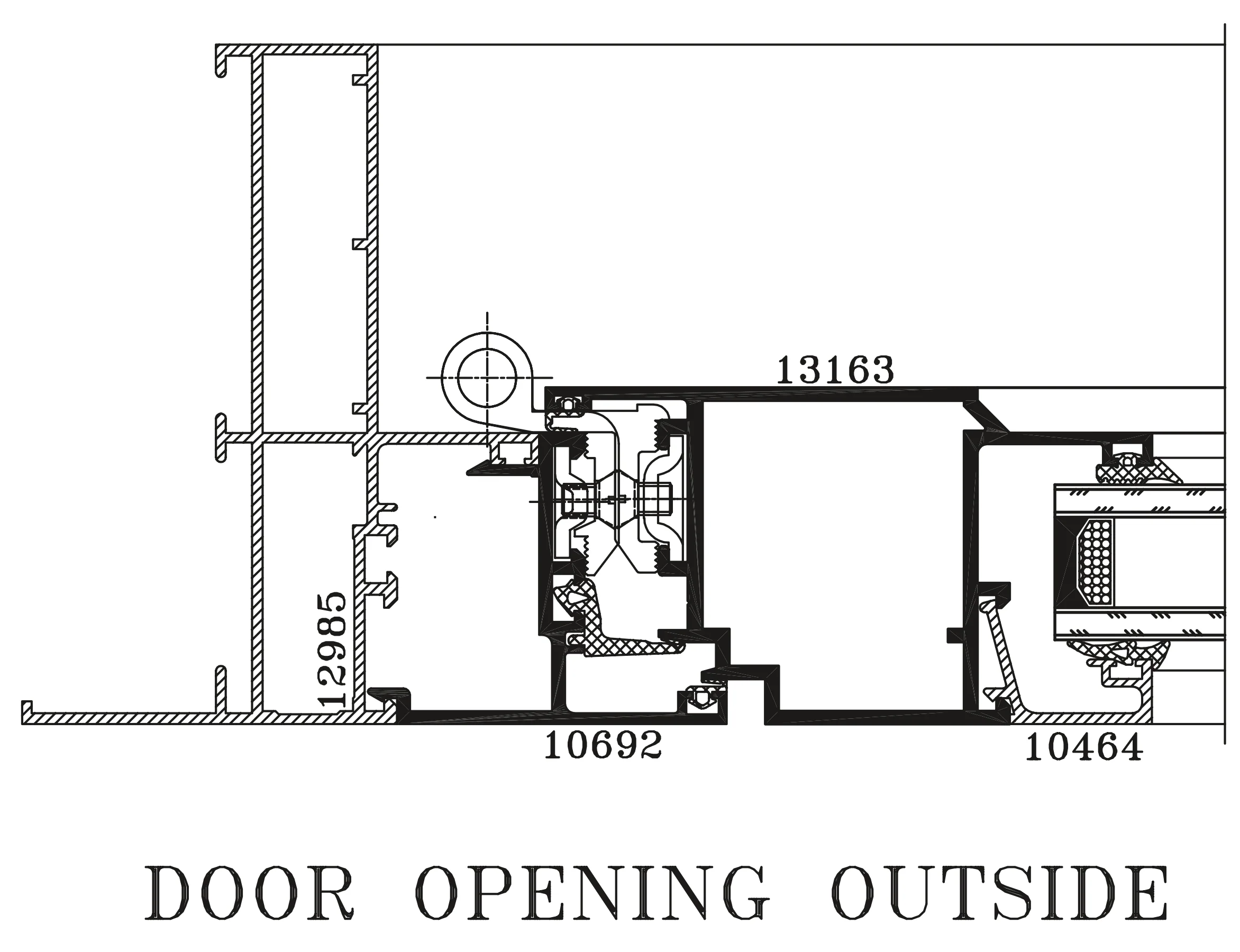

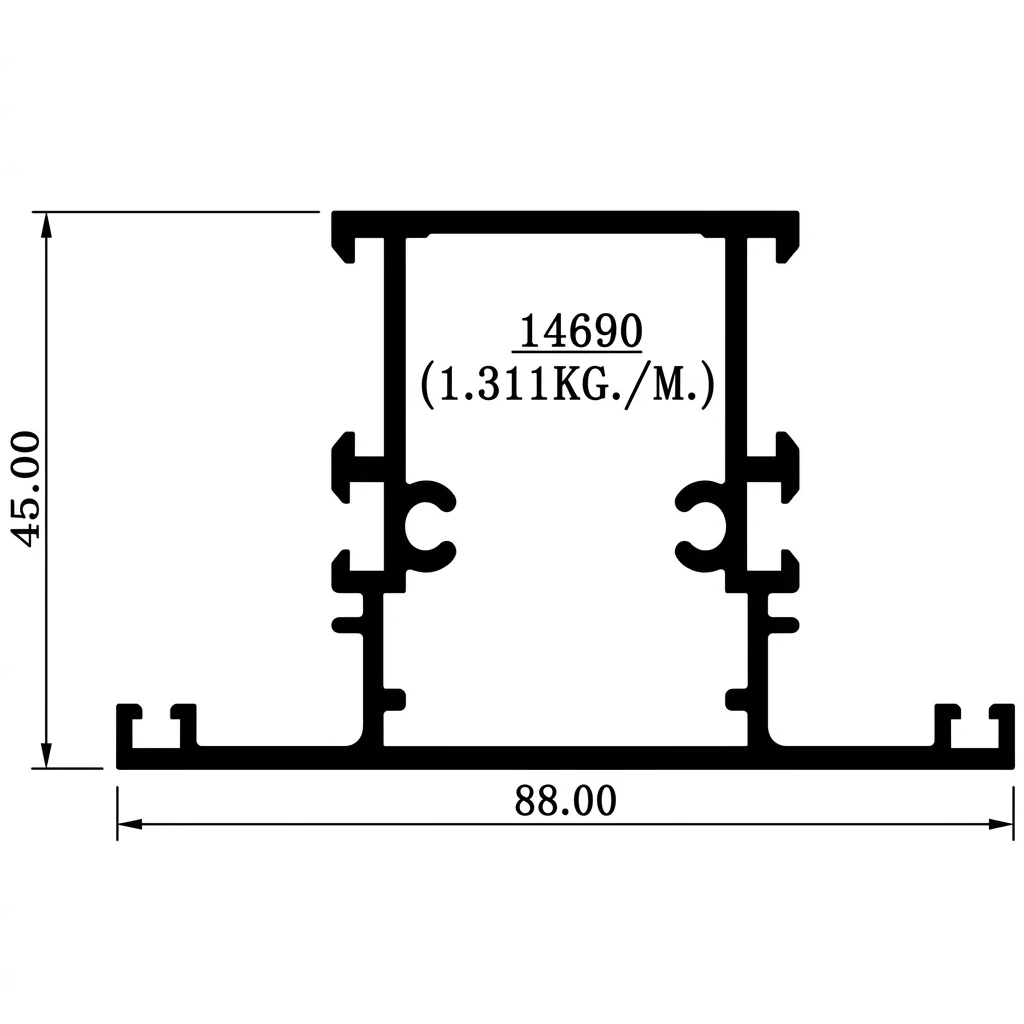

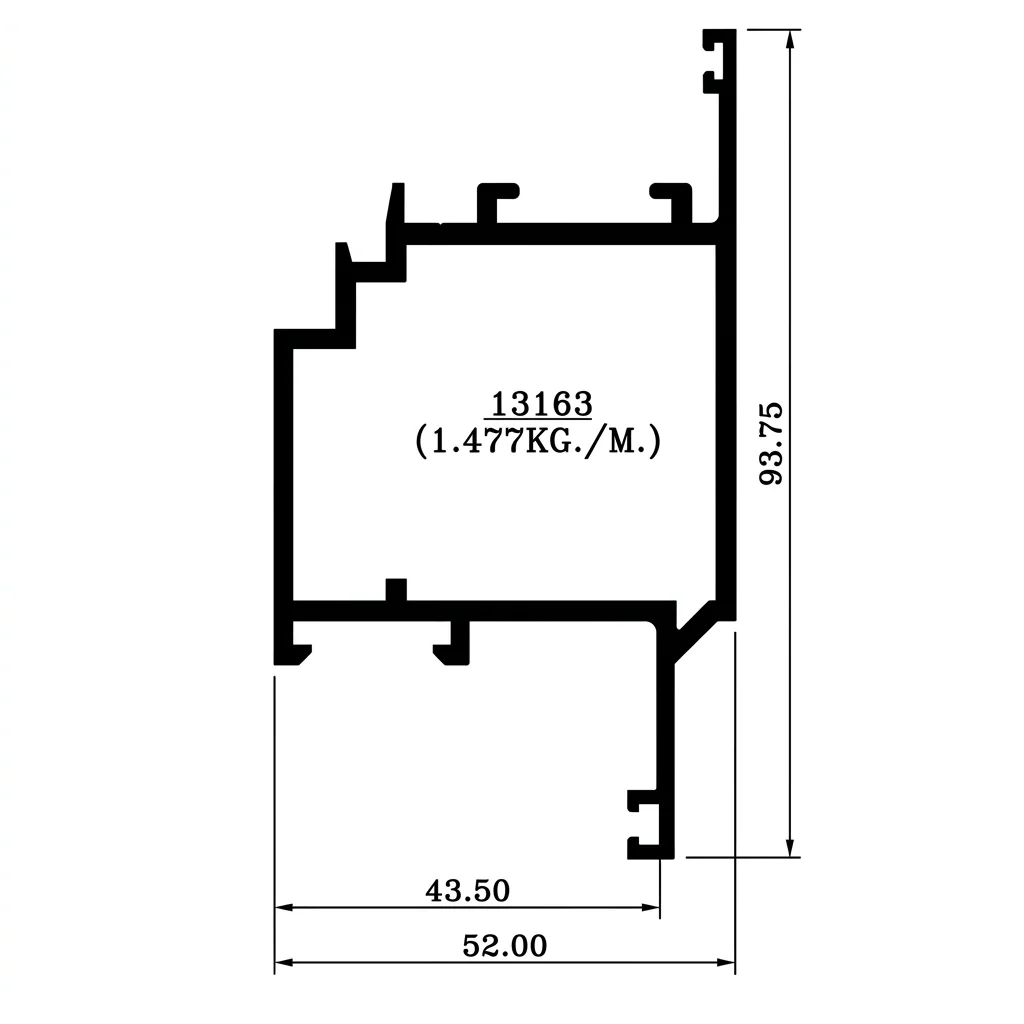

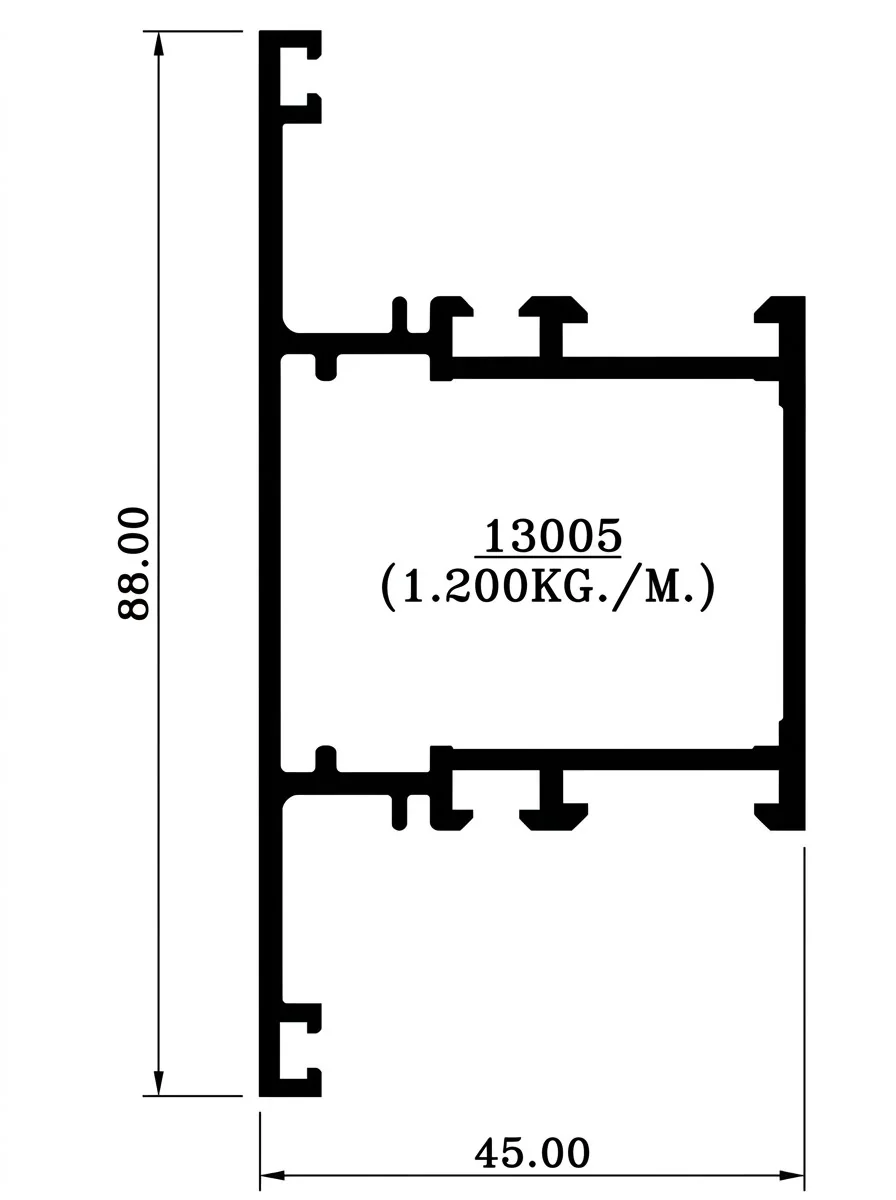

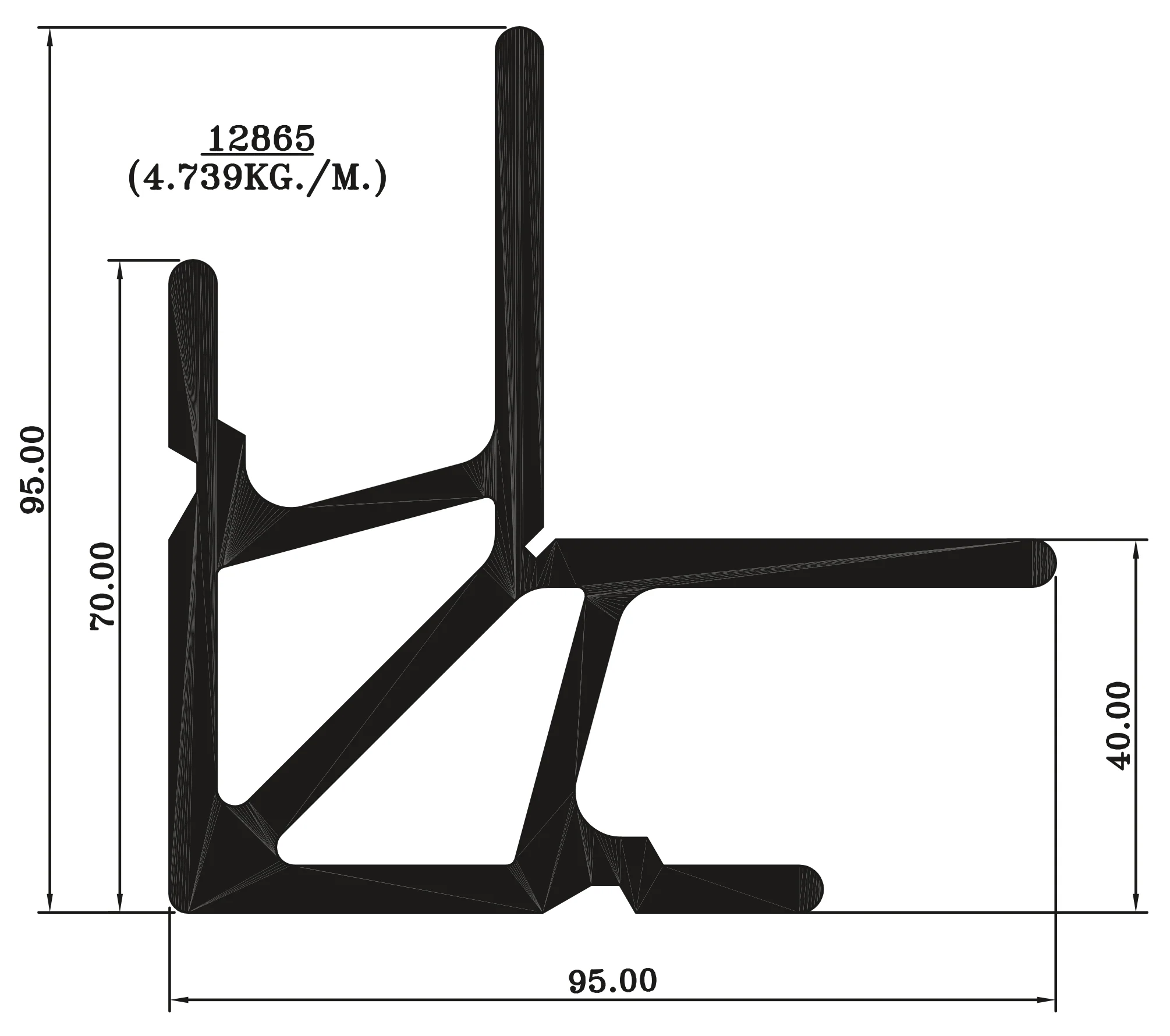

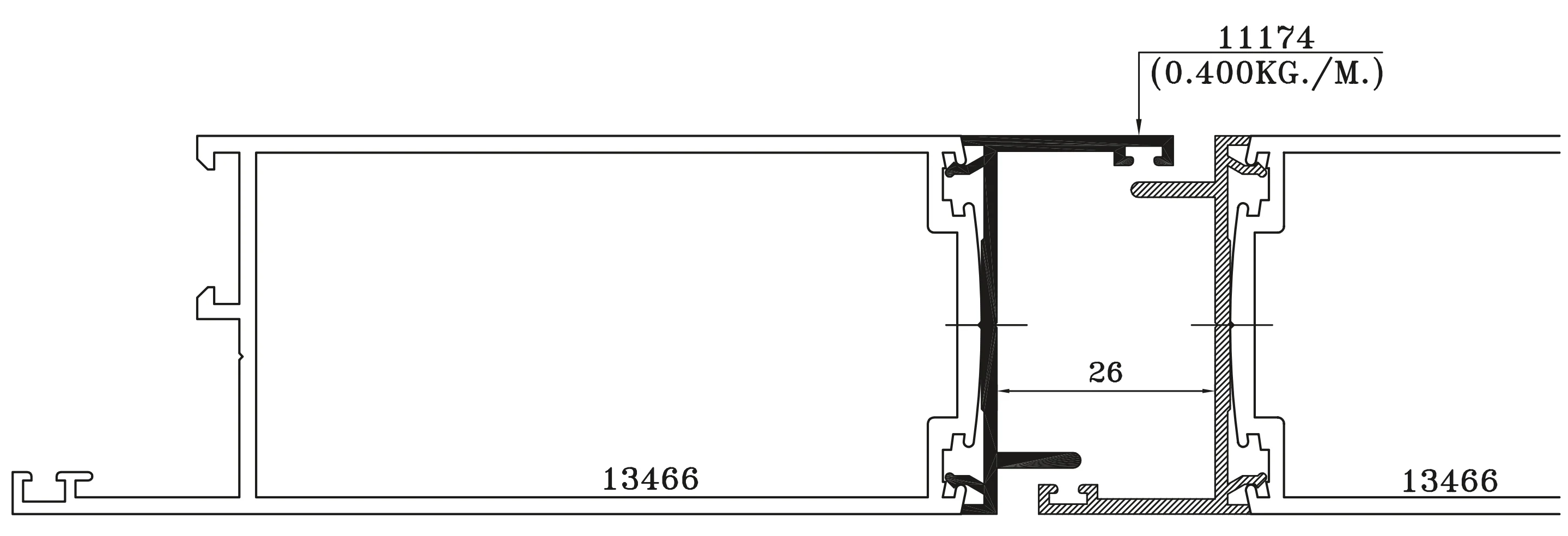

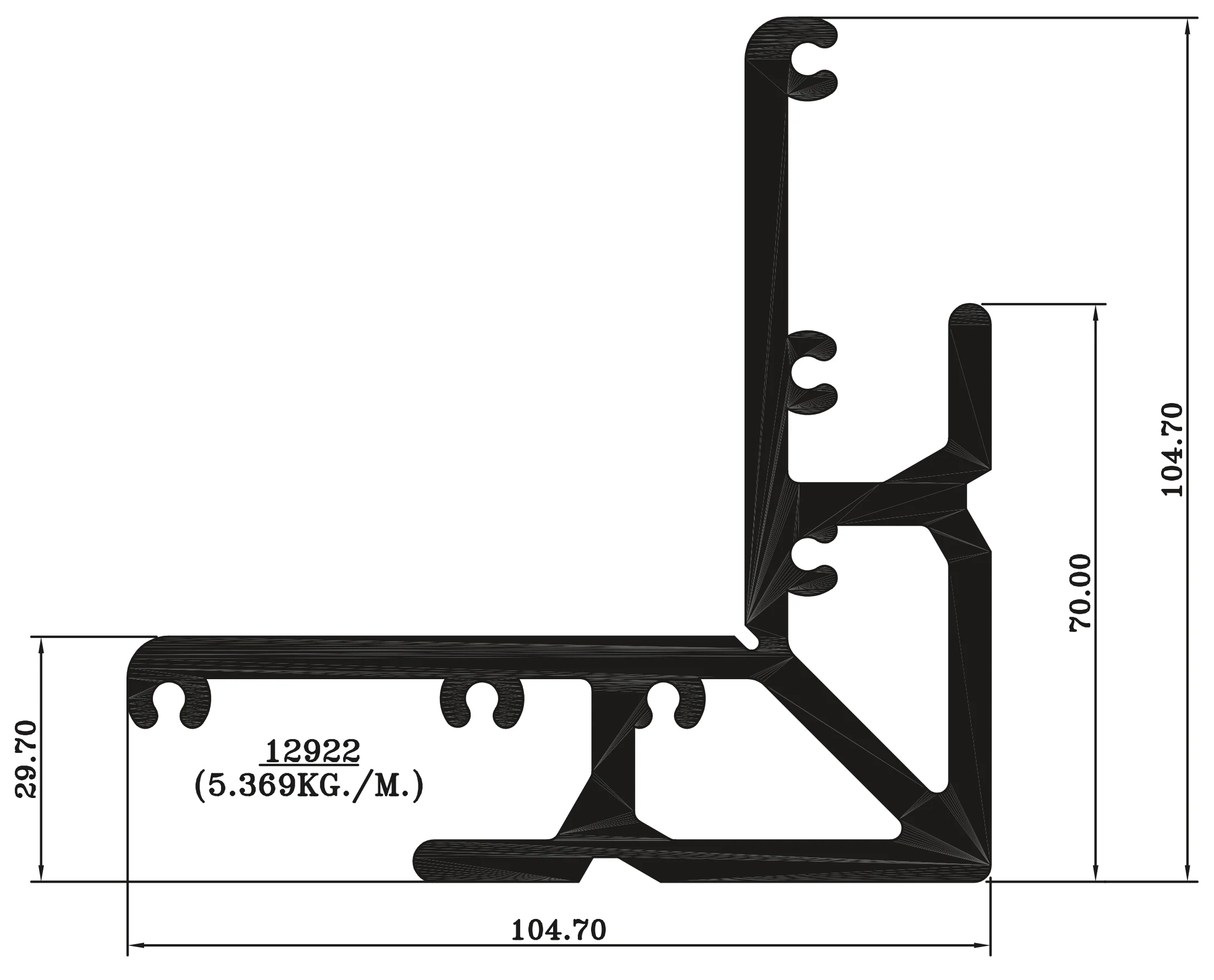

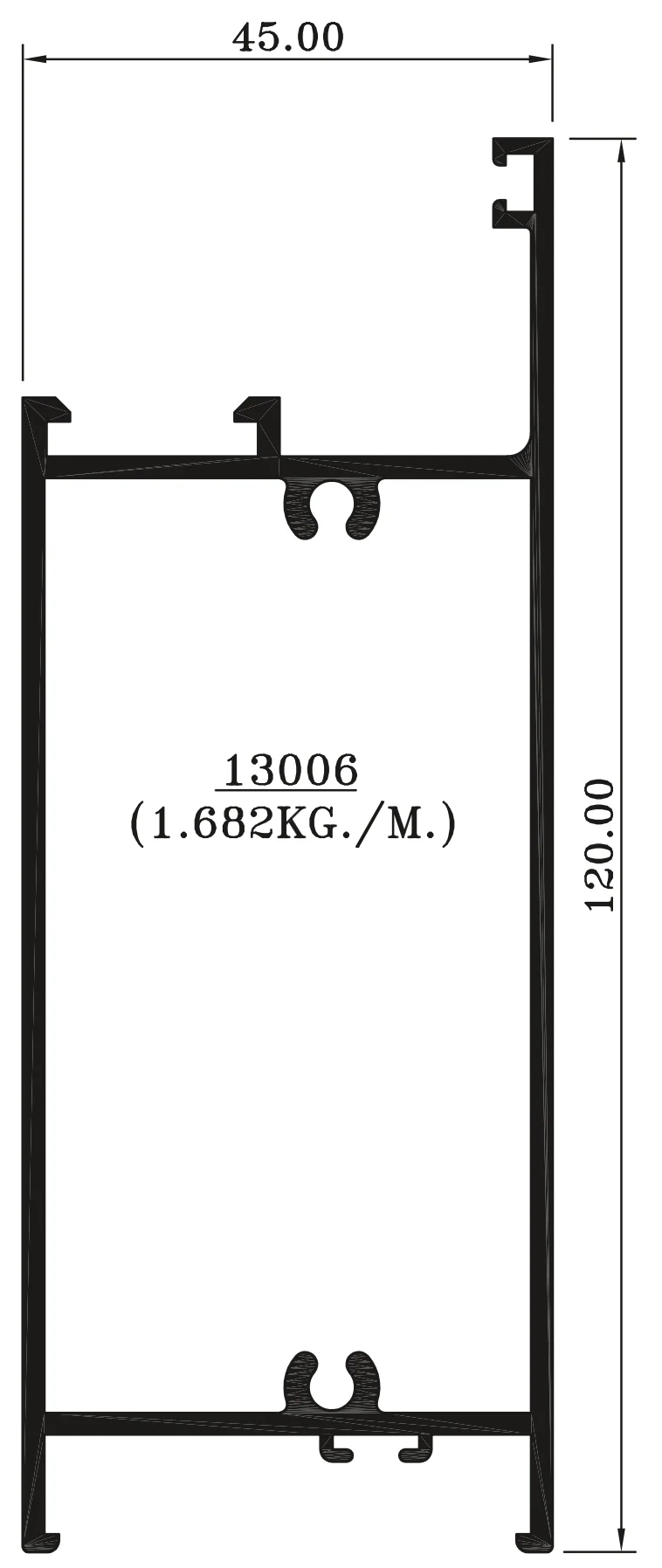

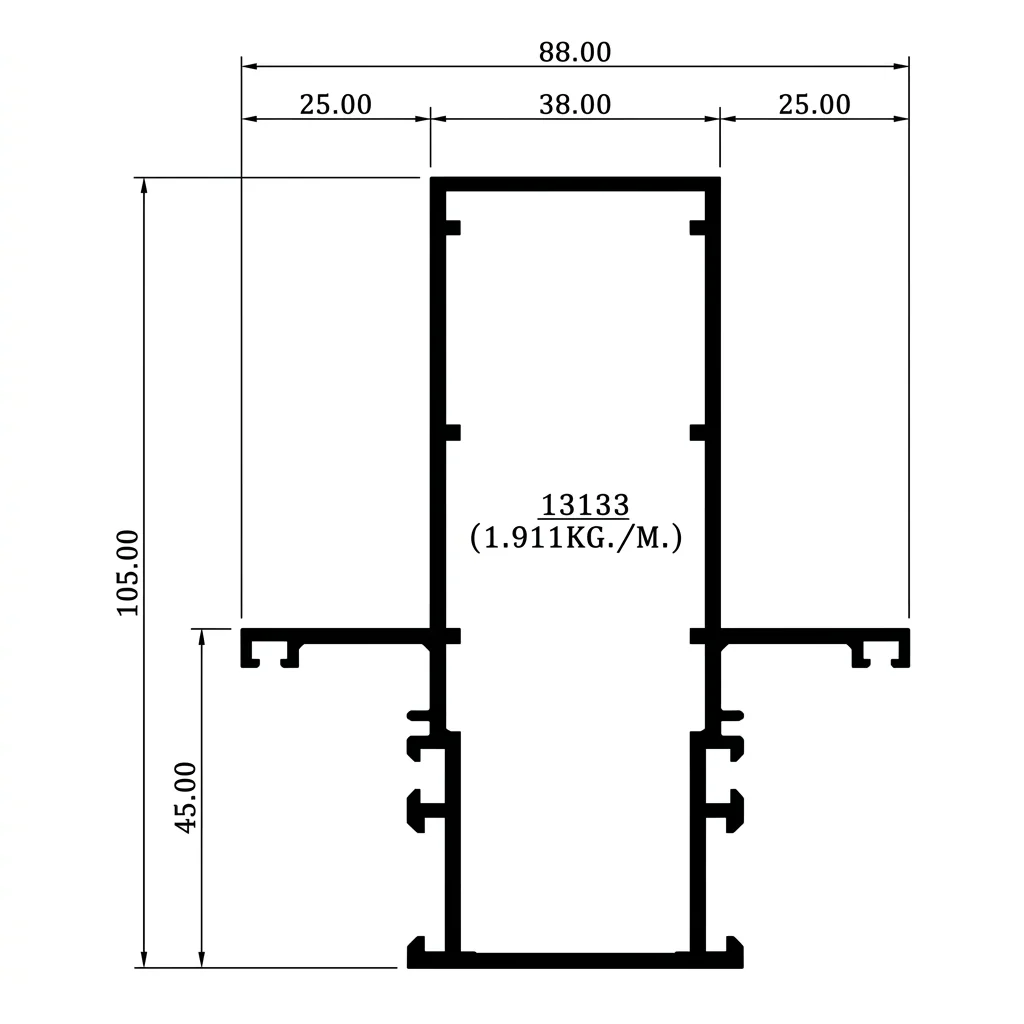

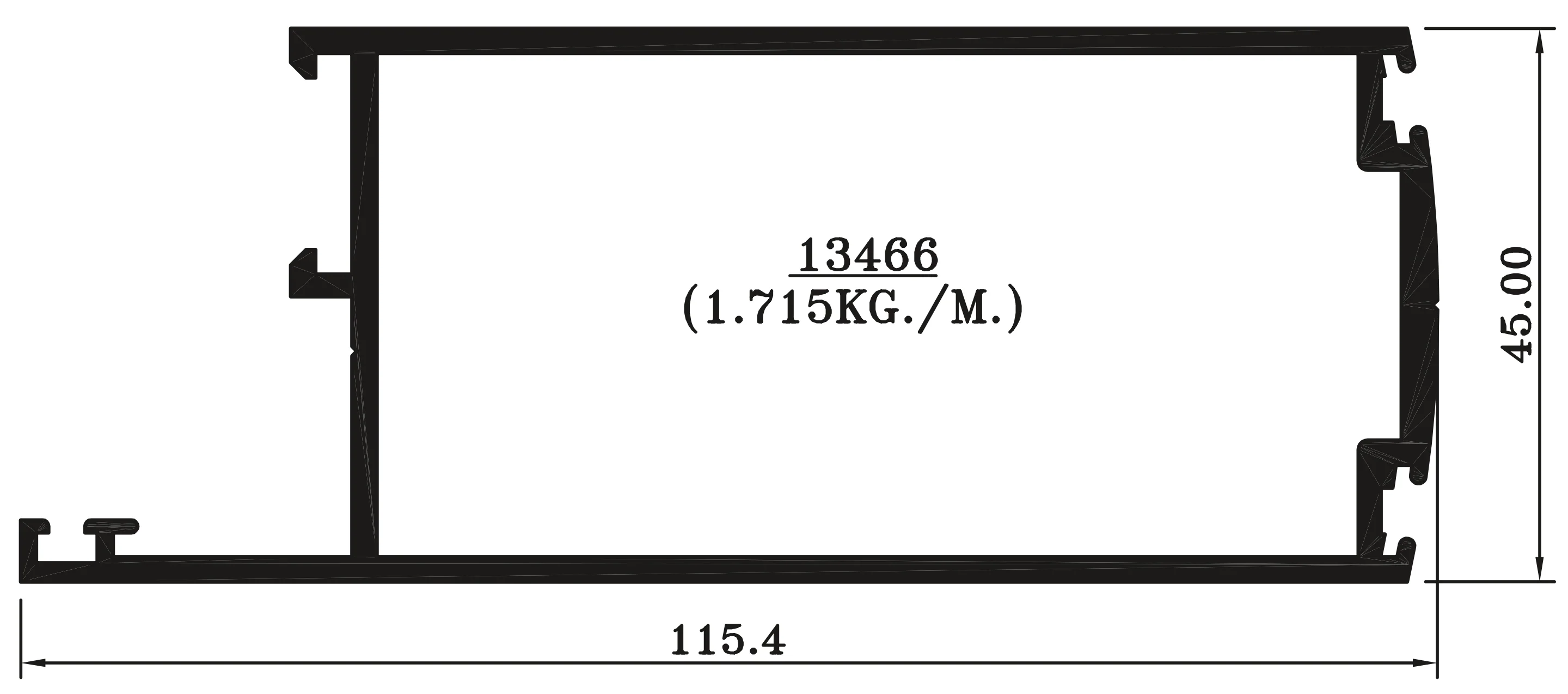

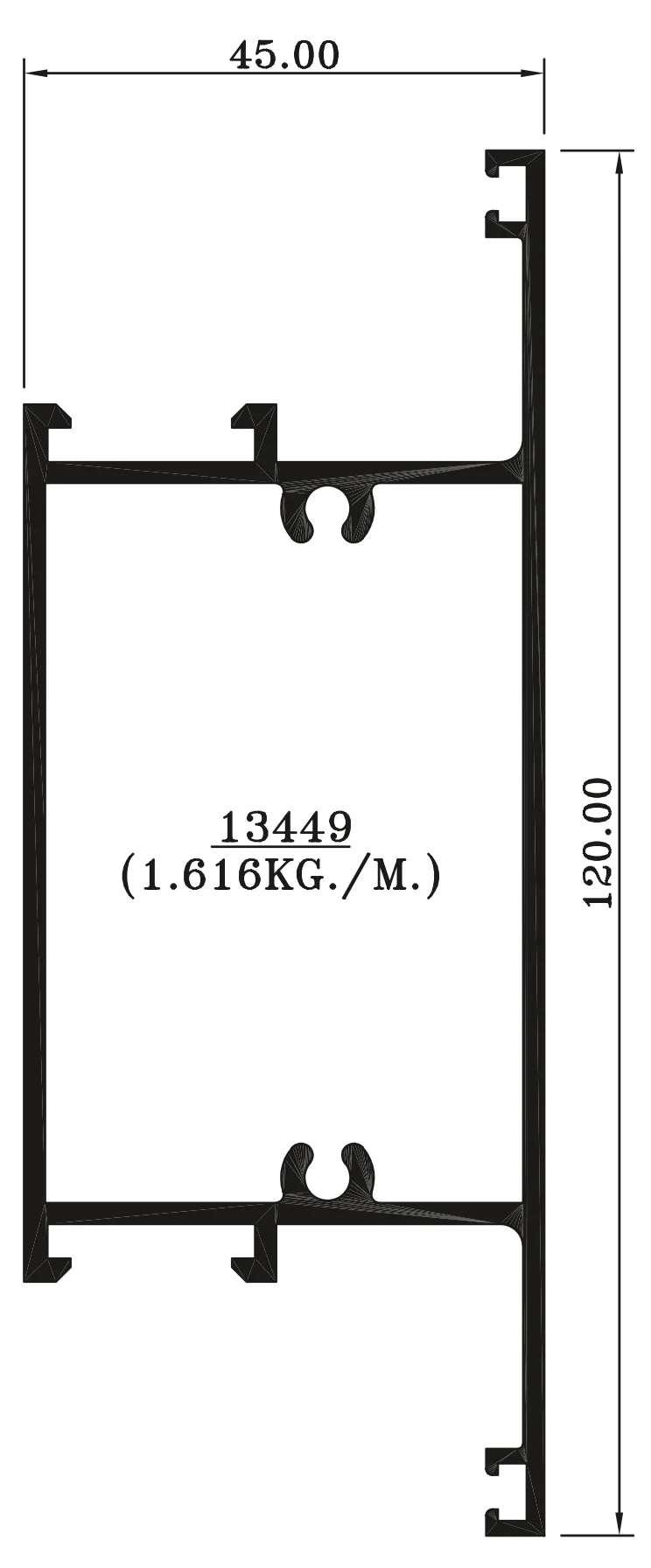

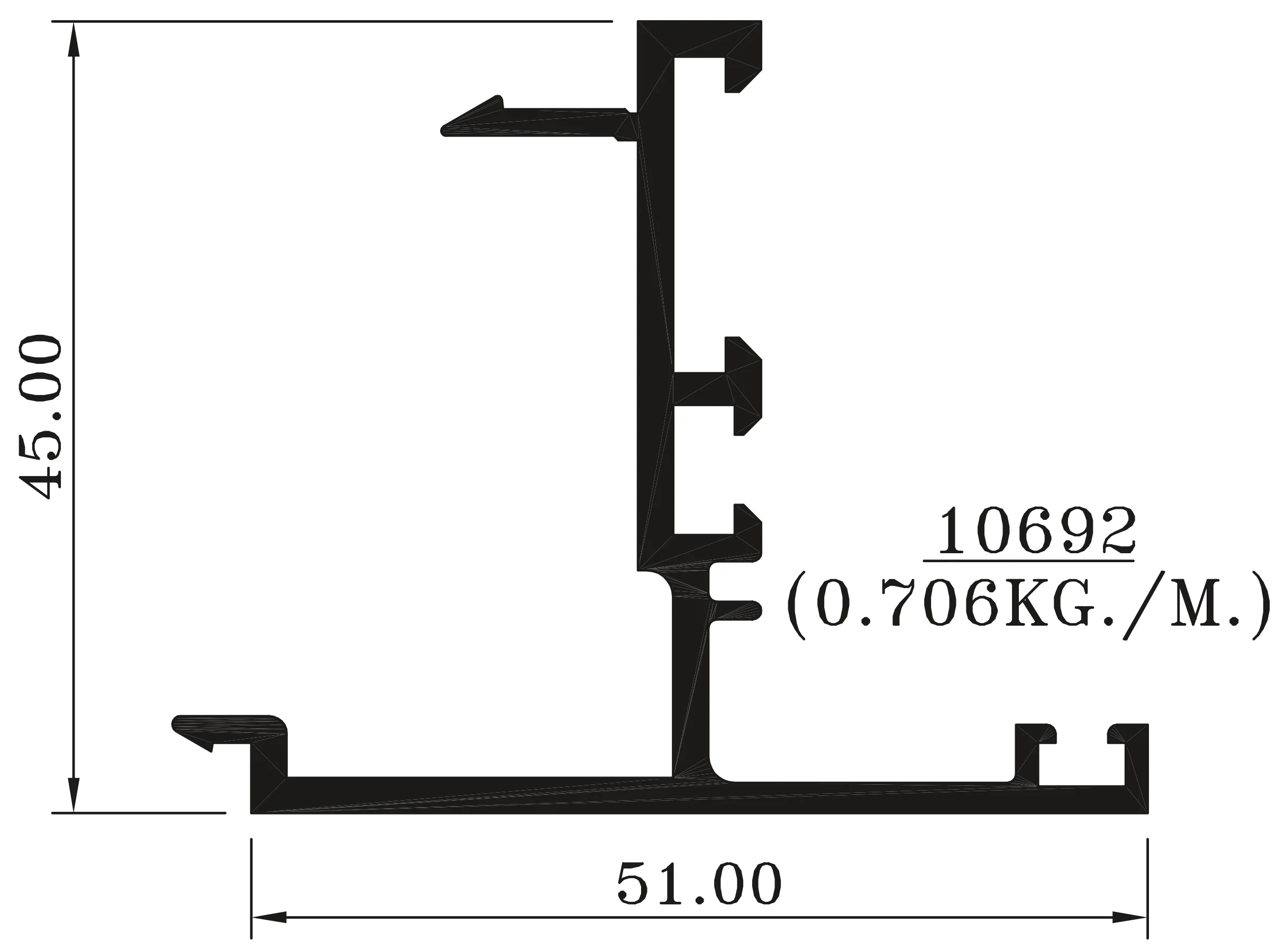

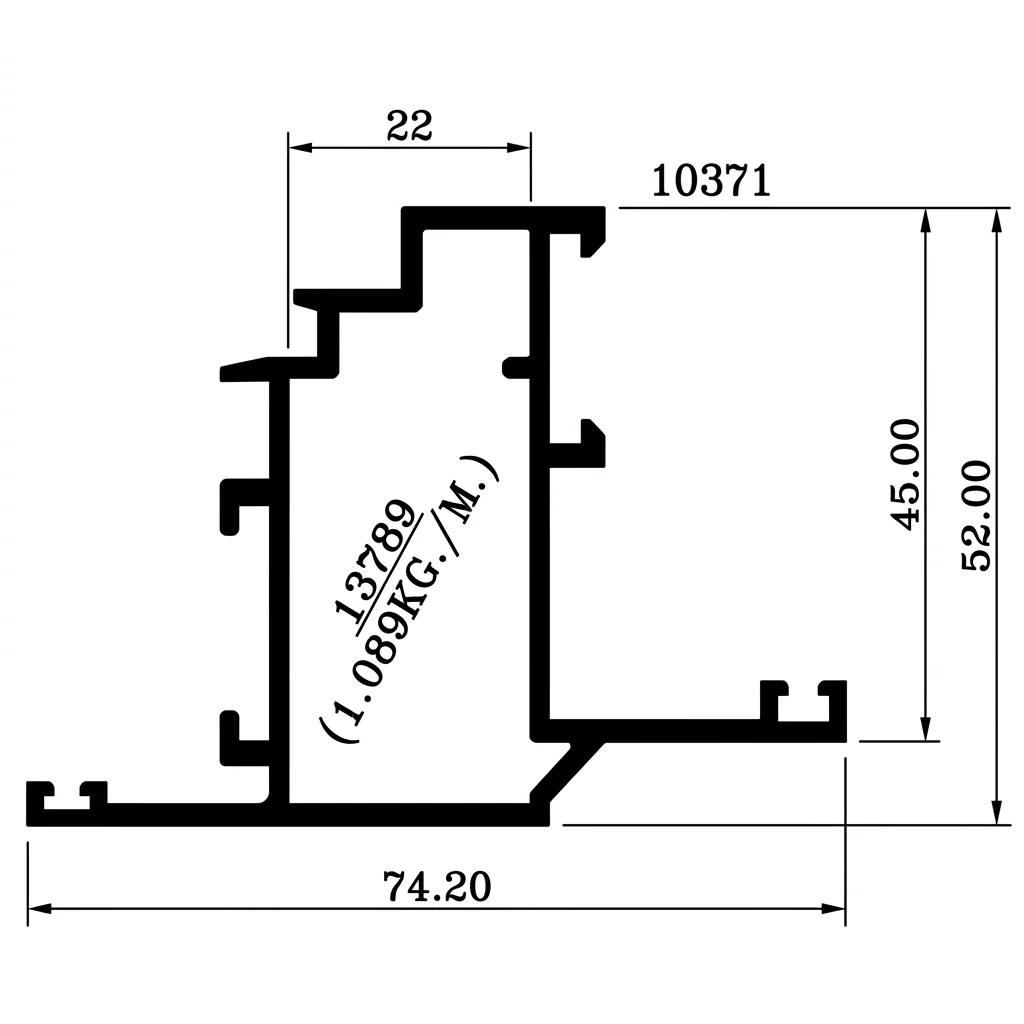

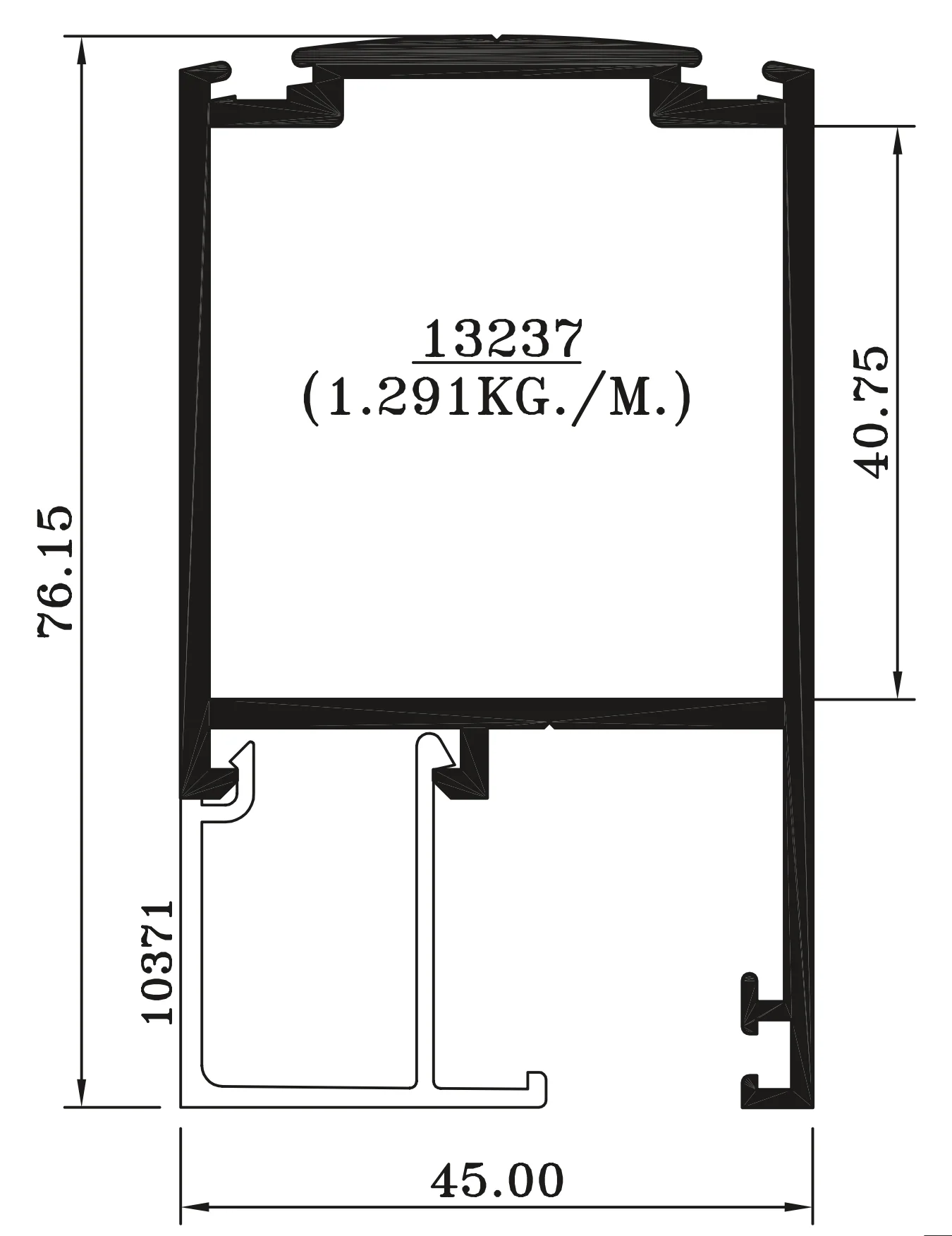

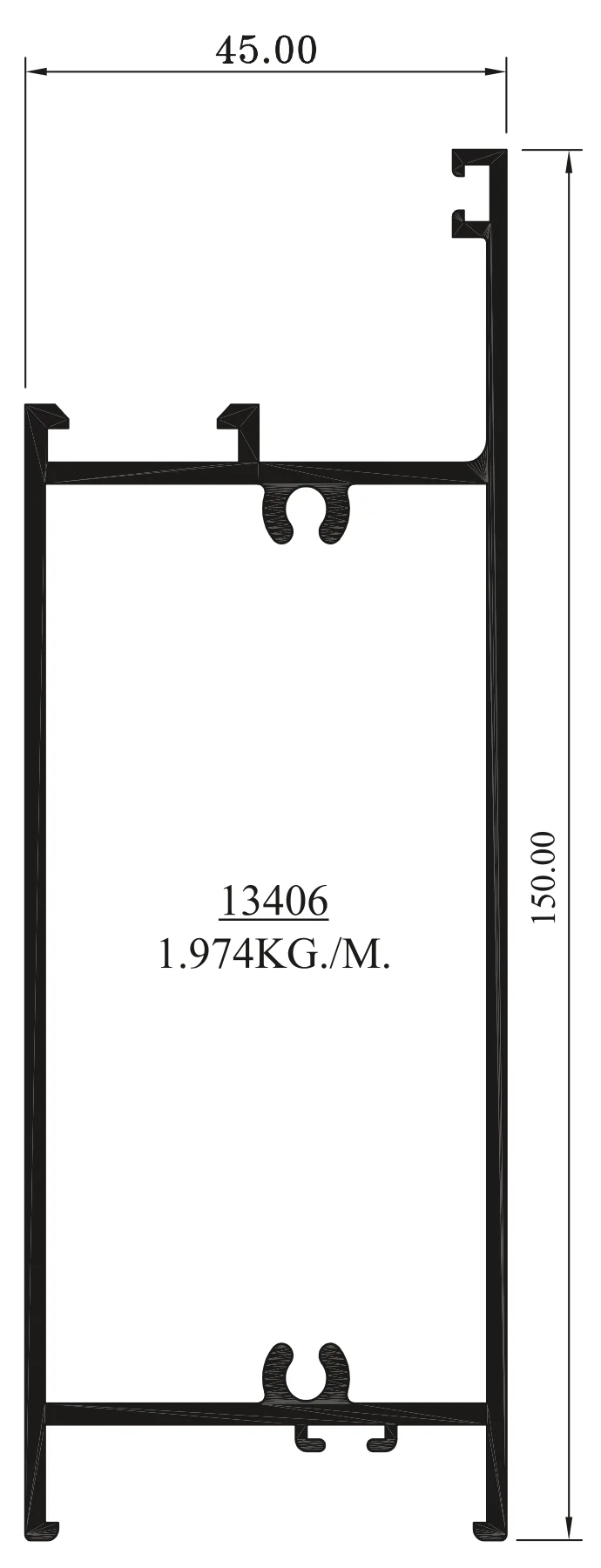

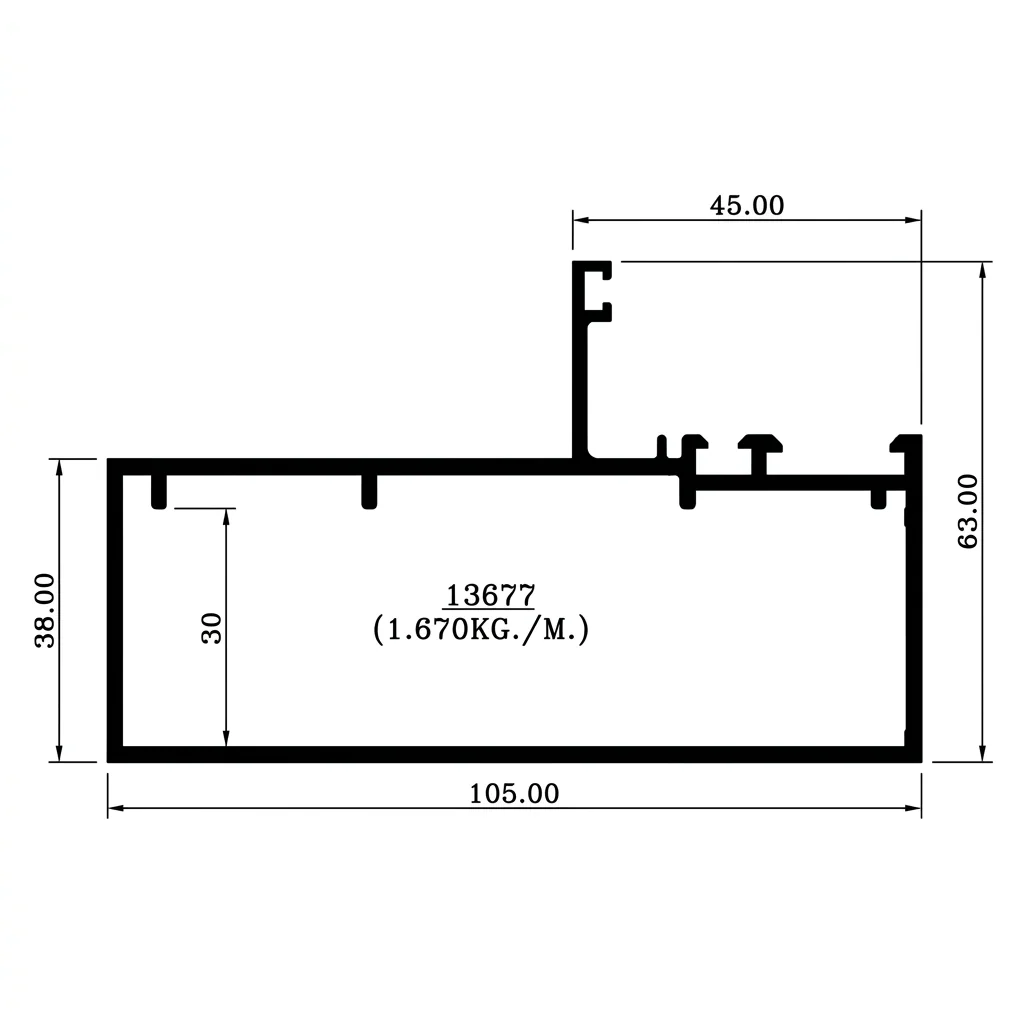

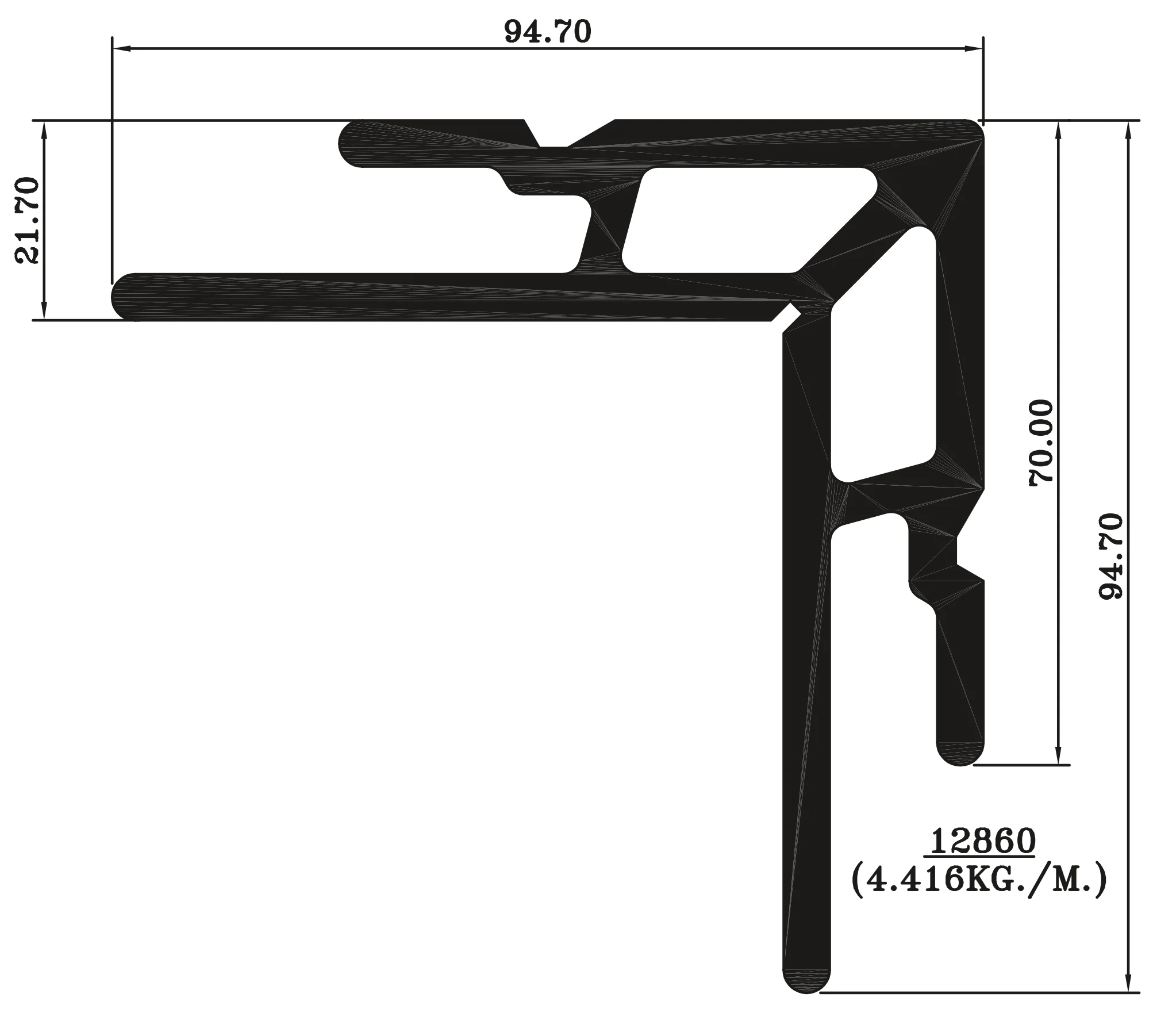

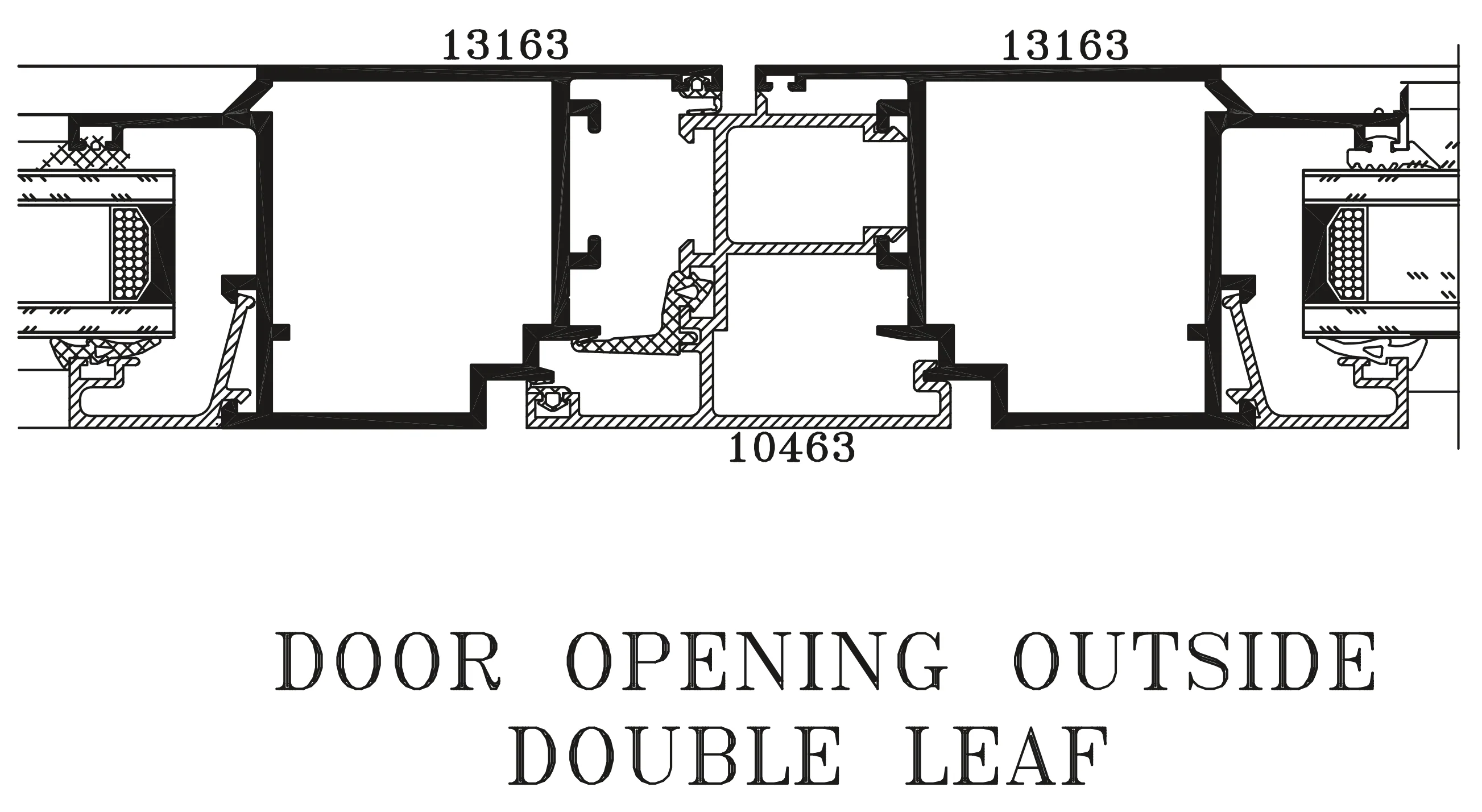

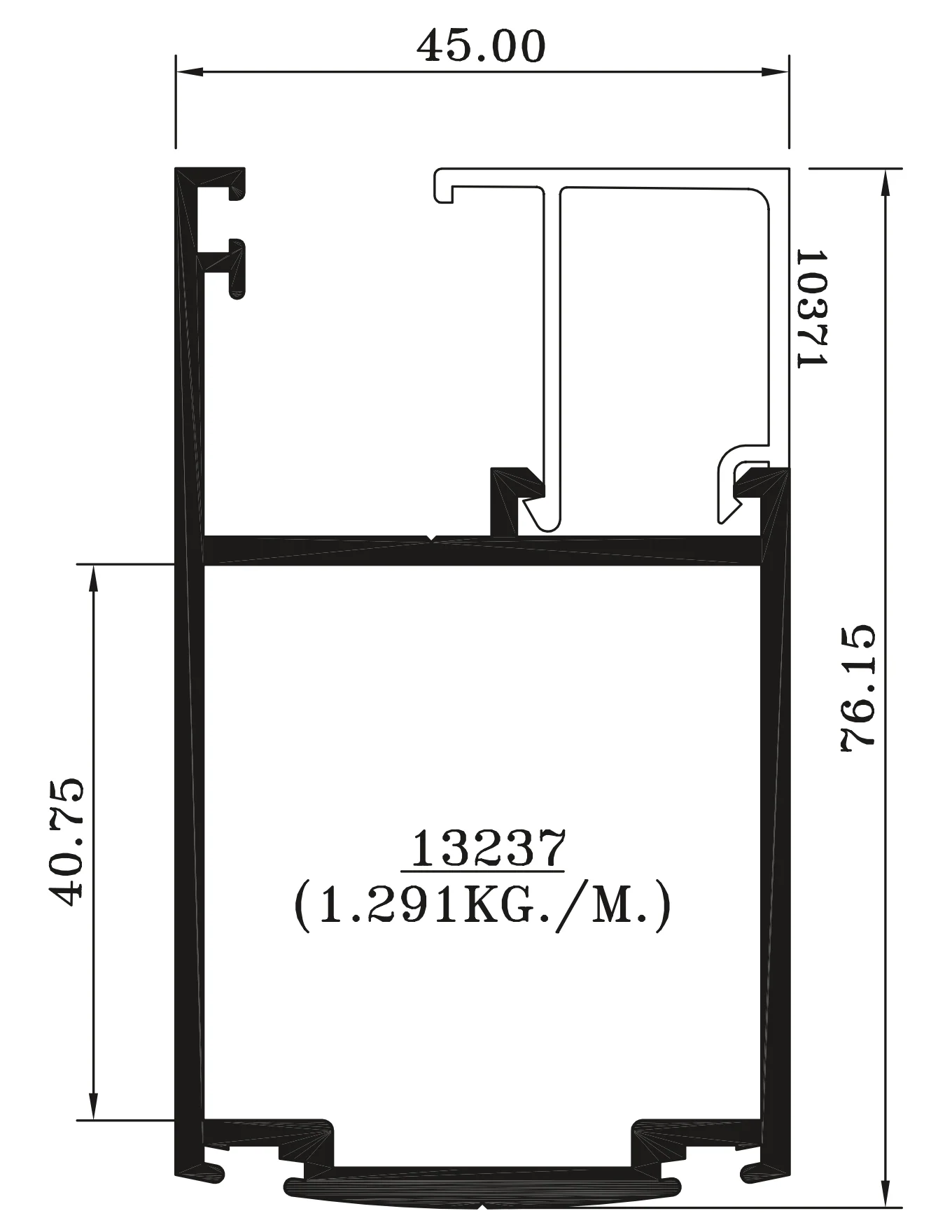

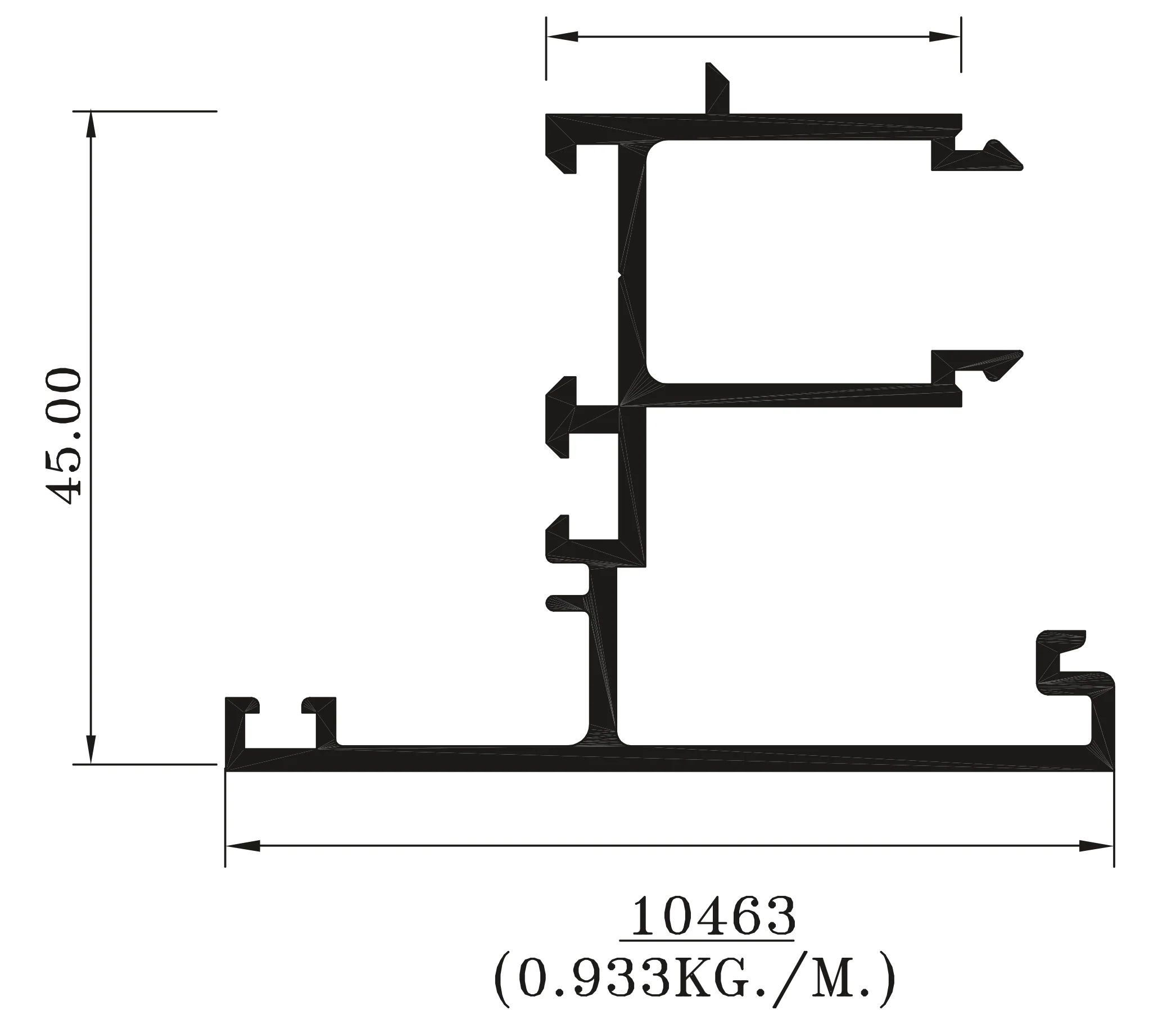

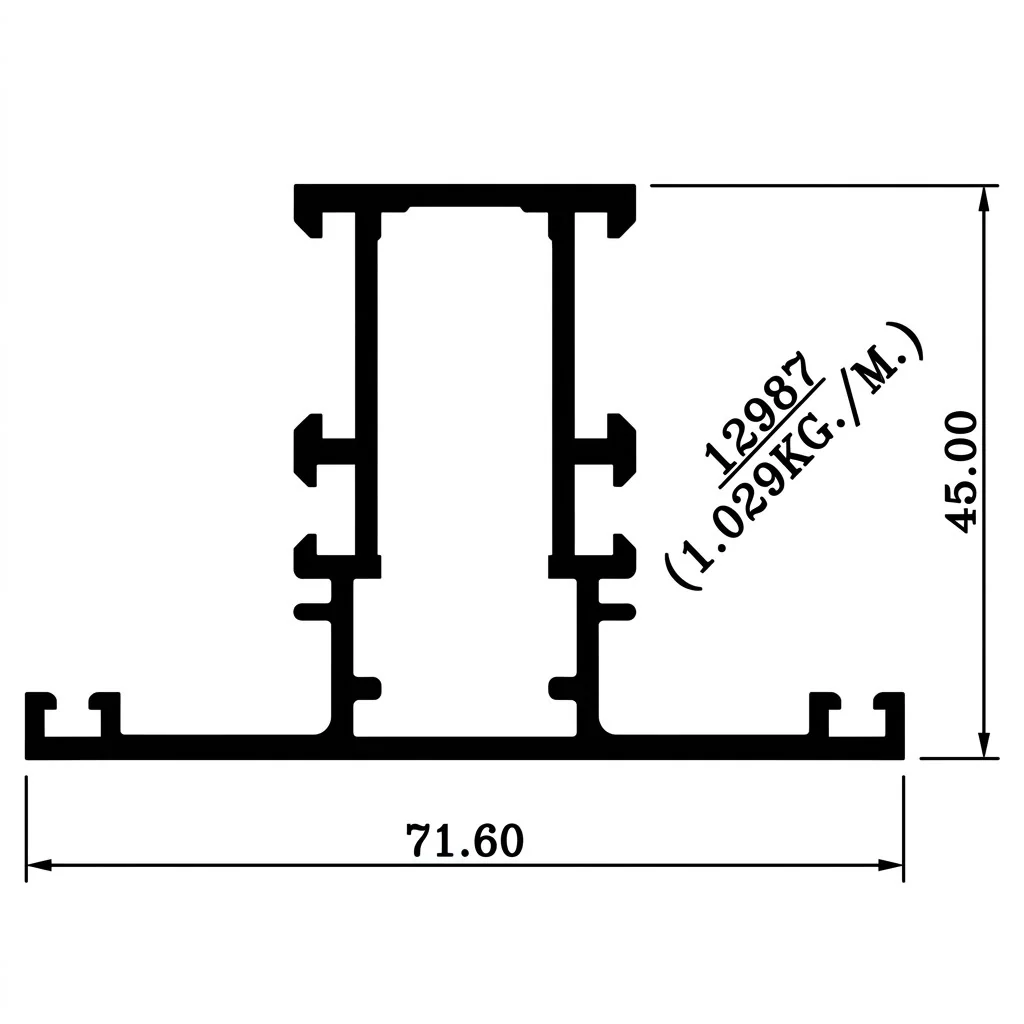

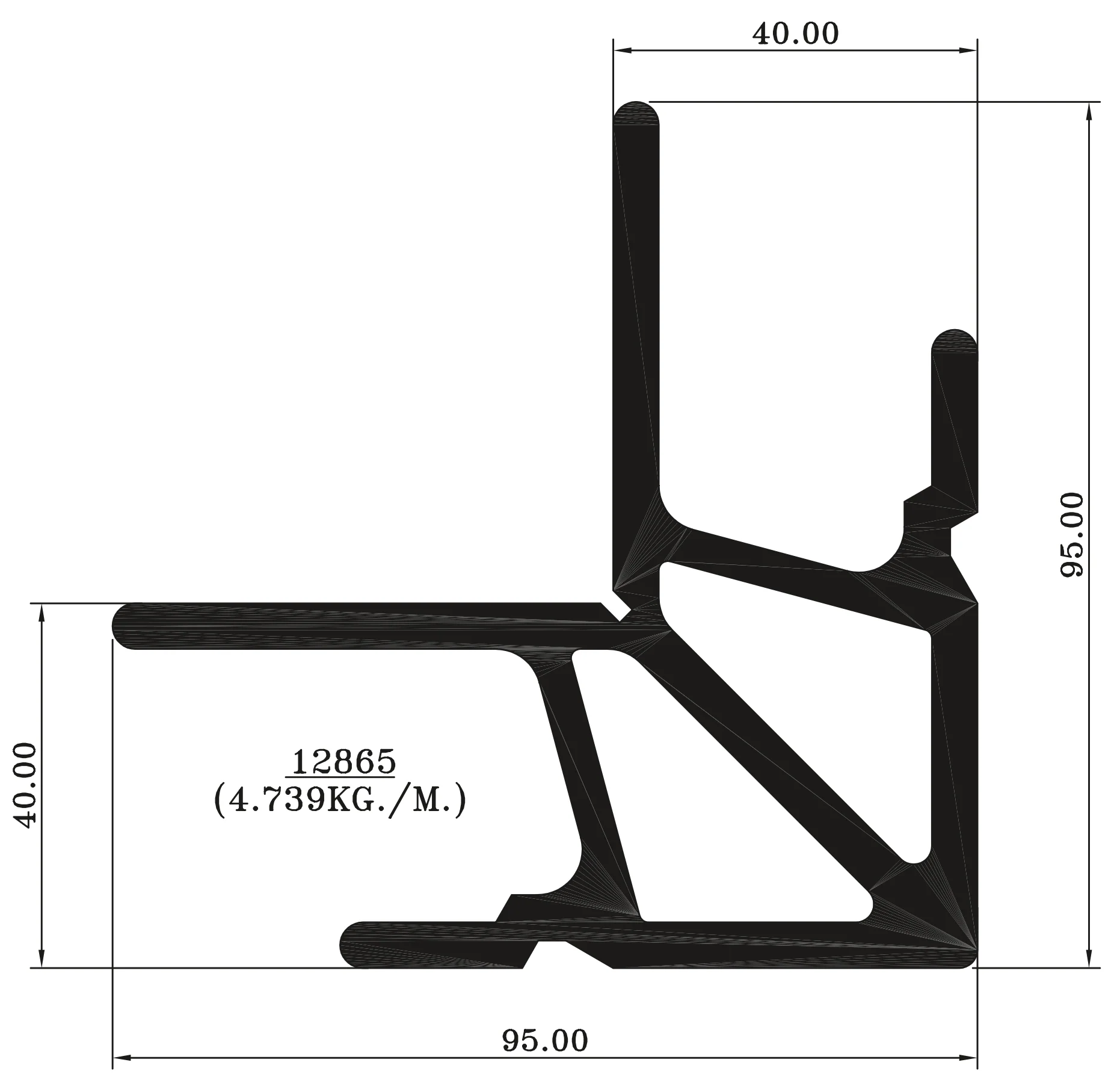

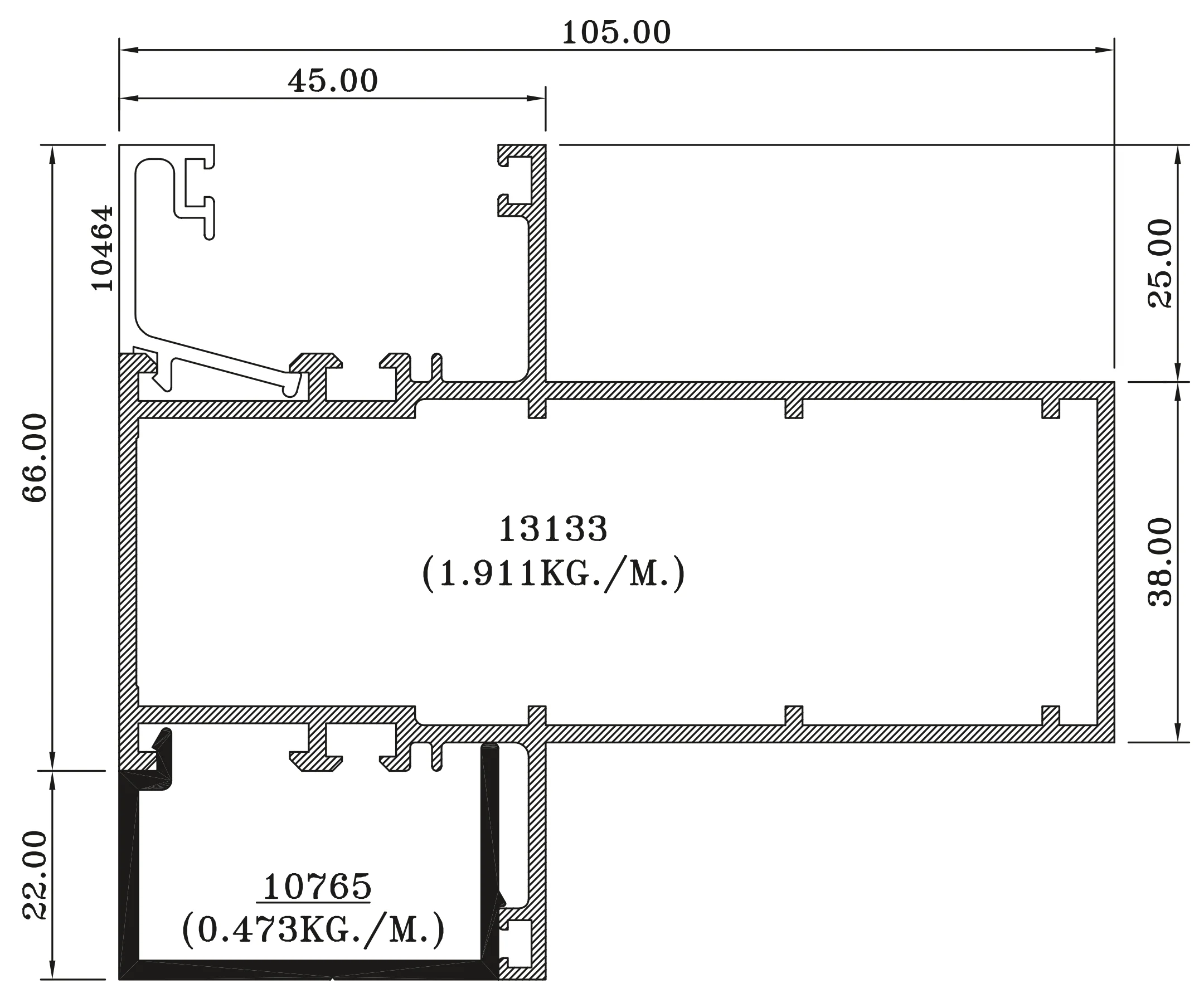

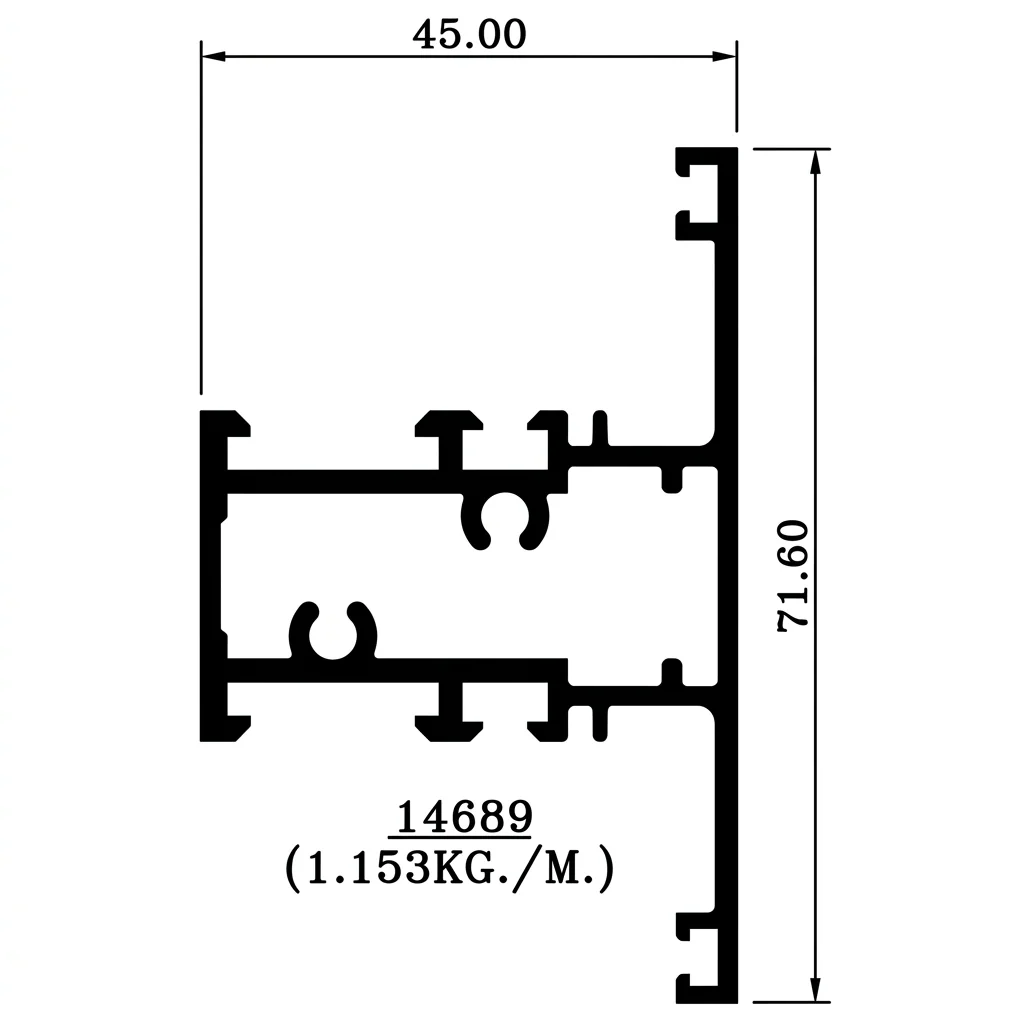

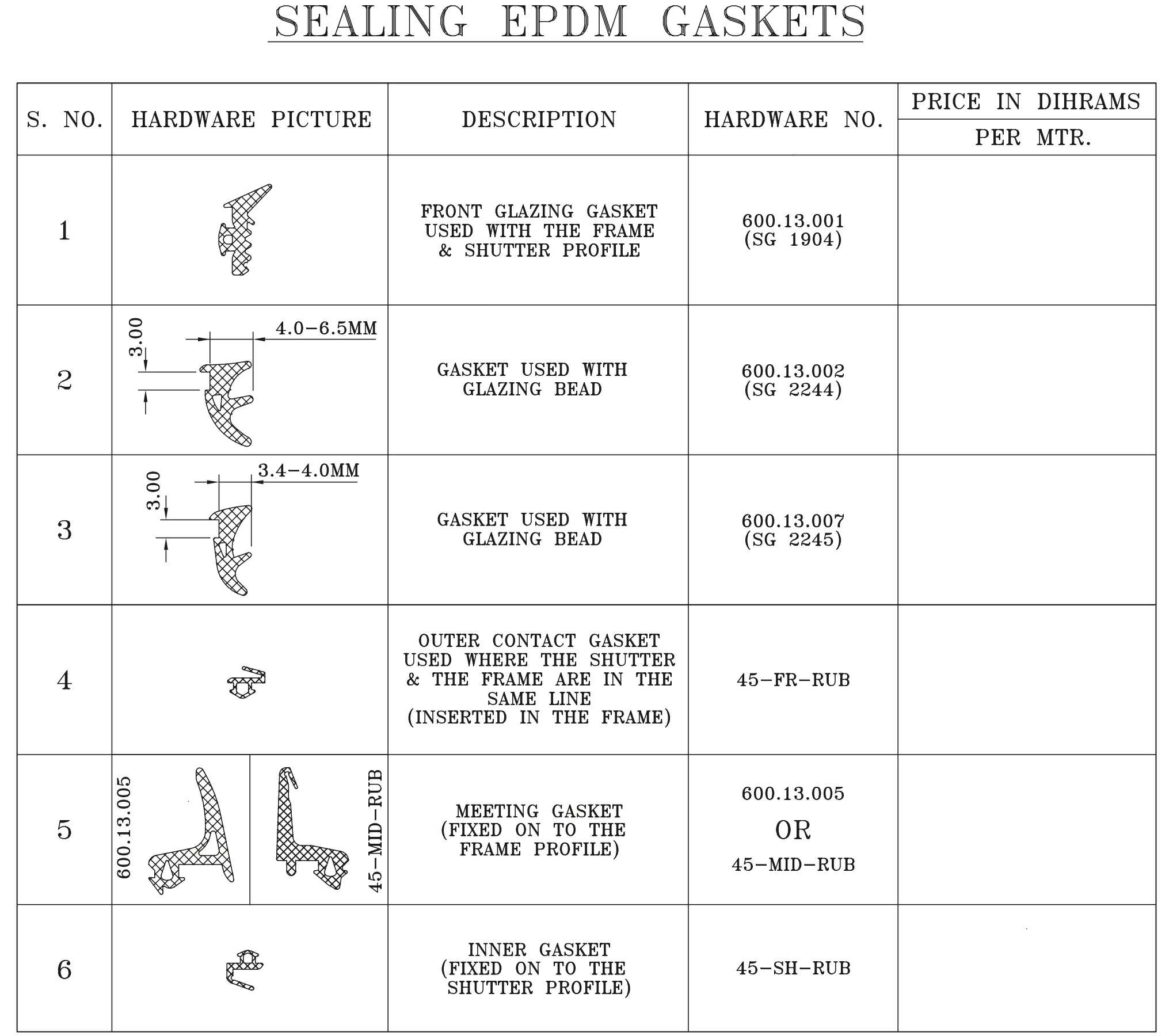

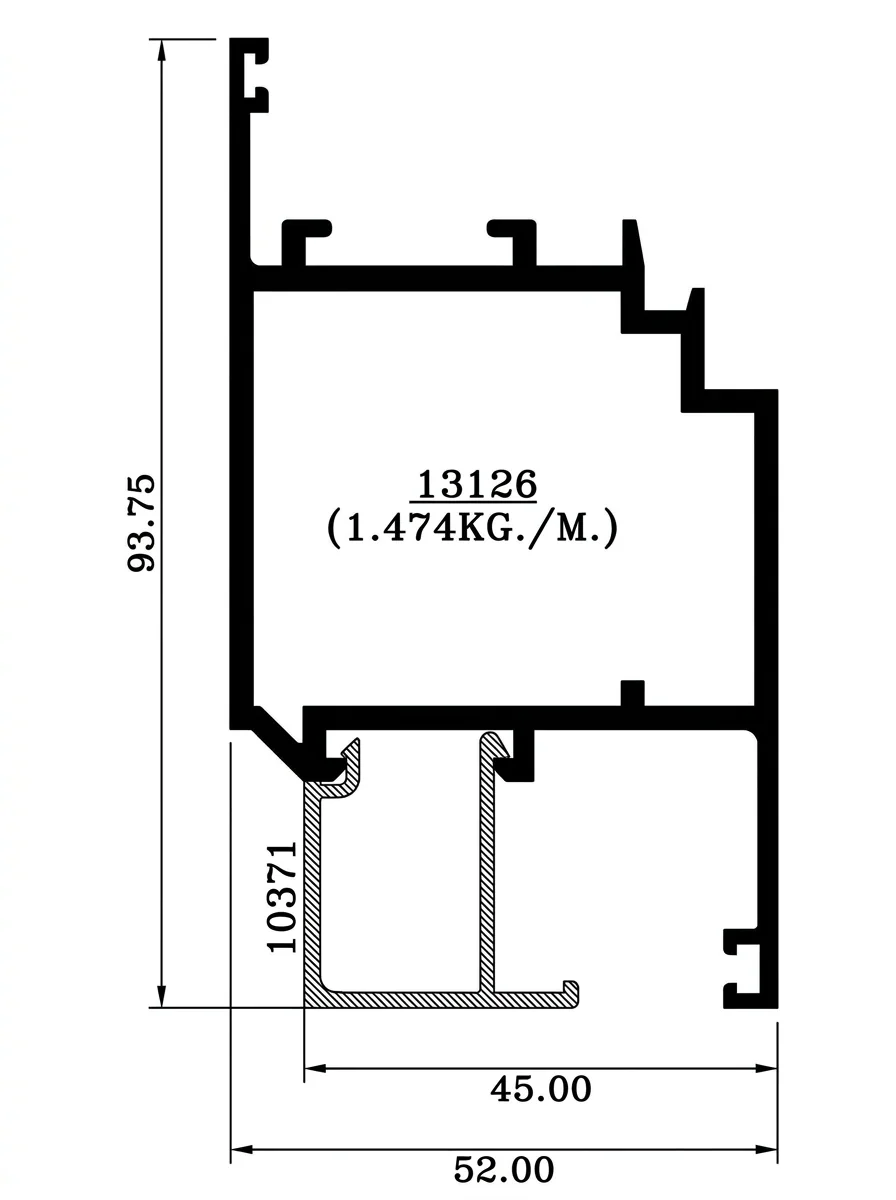

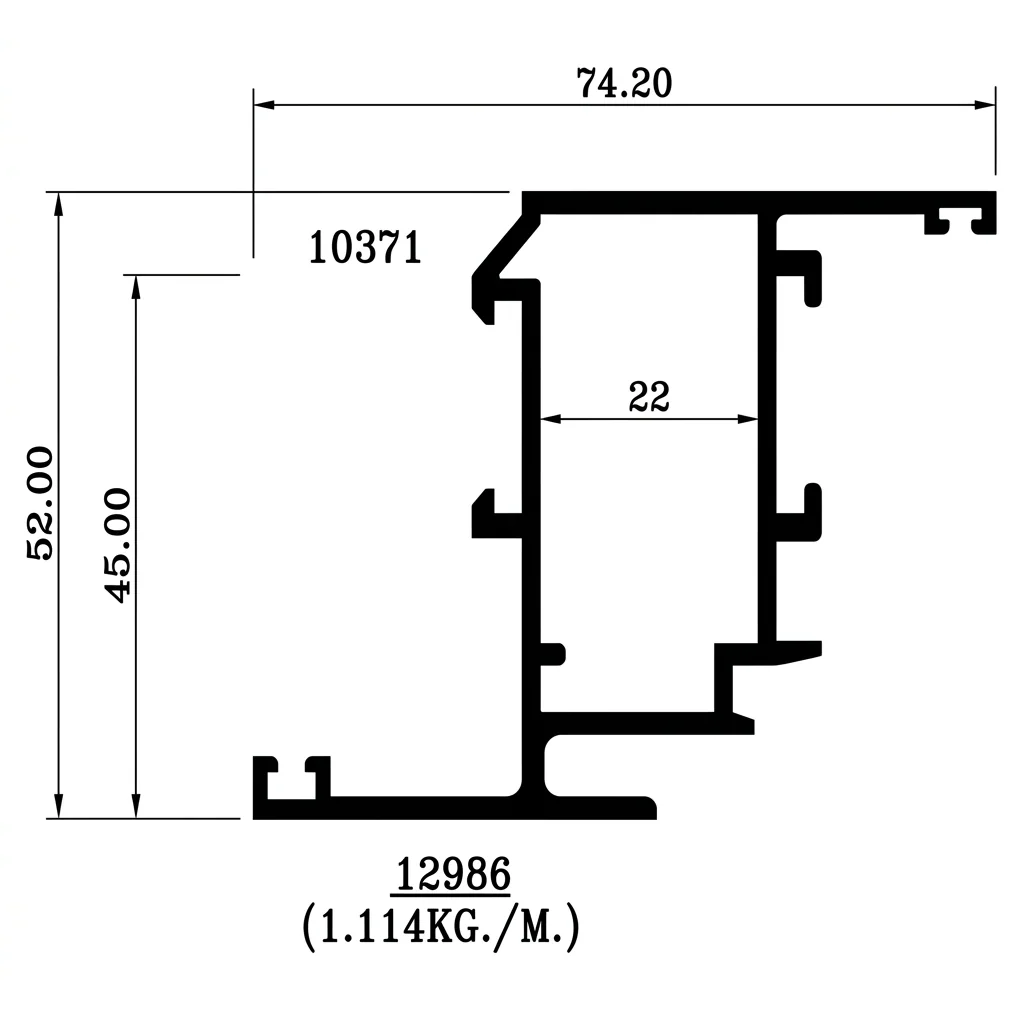

The 4.5 cm Hinged Window Series is a 45 mm-depth hinged (casement) aluminium window system comprising 31 individual profiles — outer frames, sashes, glazing beads, transom/mullion sections, and cast corner brackets — ranging from 0.251 kg/m (small glazing beads) up to 5.360 kg/m (heavy corner brackets). The system supports single-leaf and double-leaf hinged configurations and is designed for use with a dedicated set of EPDM sealing gaskets.
