Balustrades (Glass & Handrail Profile Series)

The Balustrade Profile Series enables modern railing systems for balconies, staircases, terraces, atriums, and safety barriers.; These profiles form the structural base shoe, top cap, handrail, and post/frame elements required to hold glass infills or metal balusters securely.; Designed to meet architectural safety load requirements, the system offers clean visual lines, concealed fixing options, and compatibility with laminated and tempered glass.

Parts explorer (23)

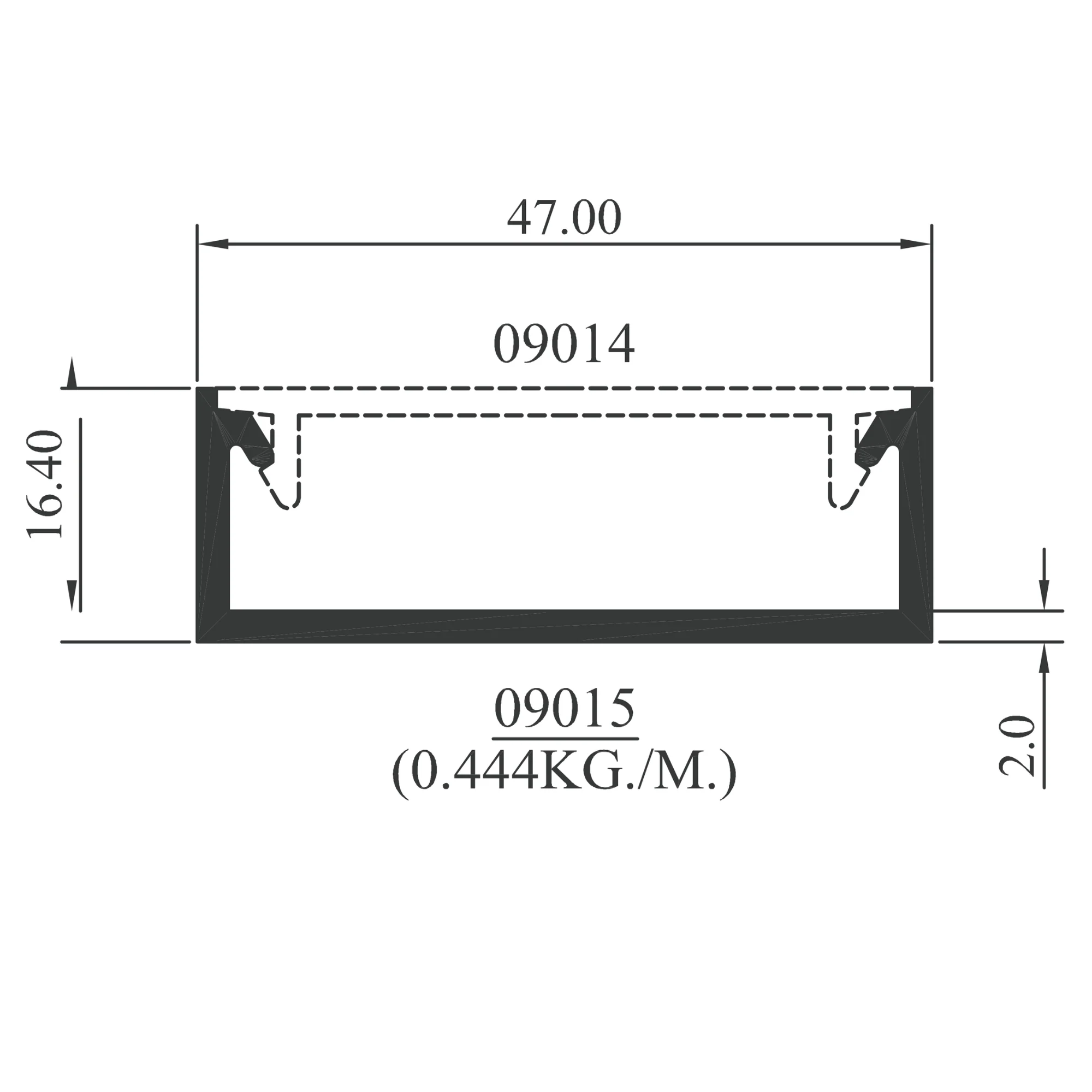

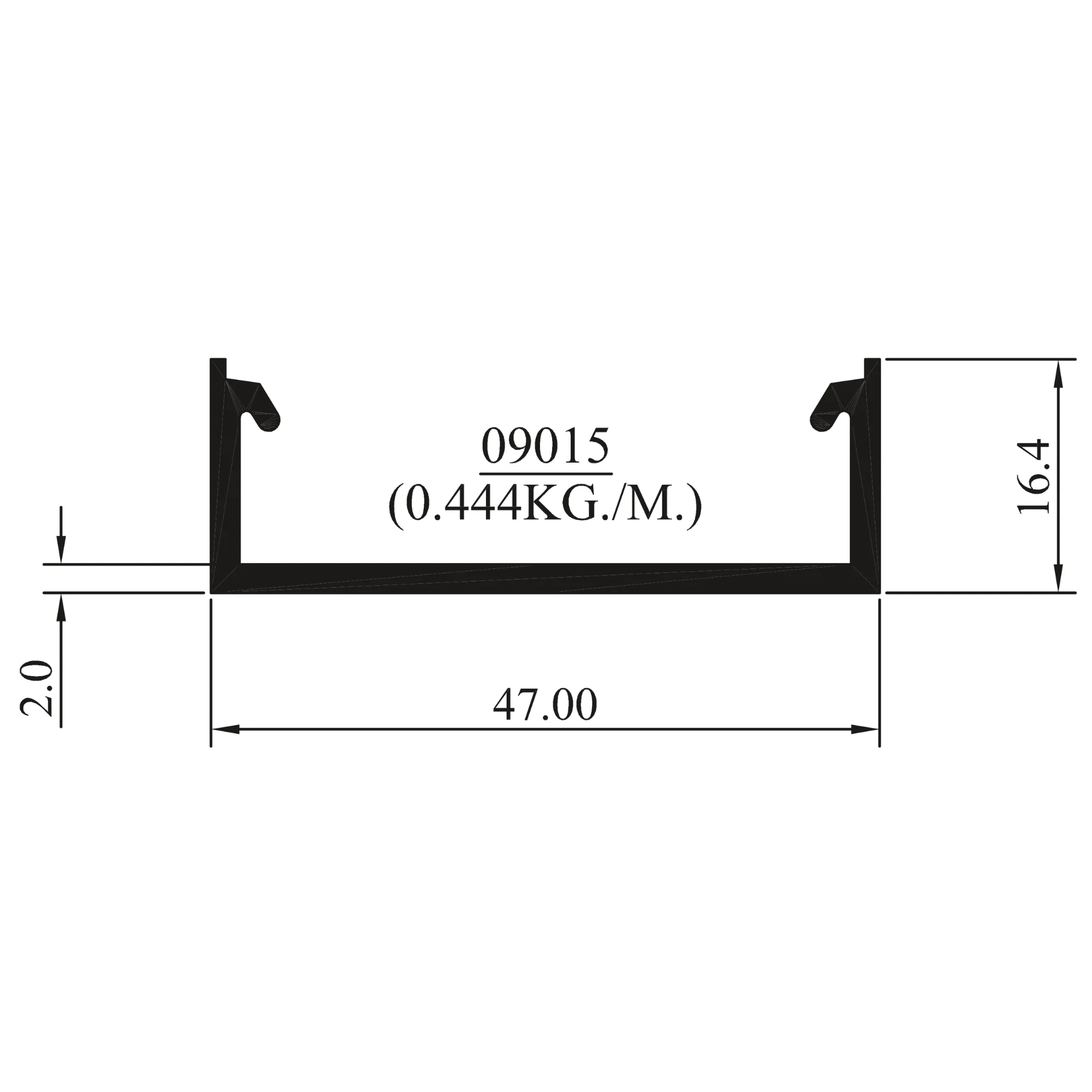

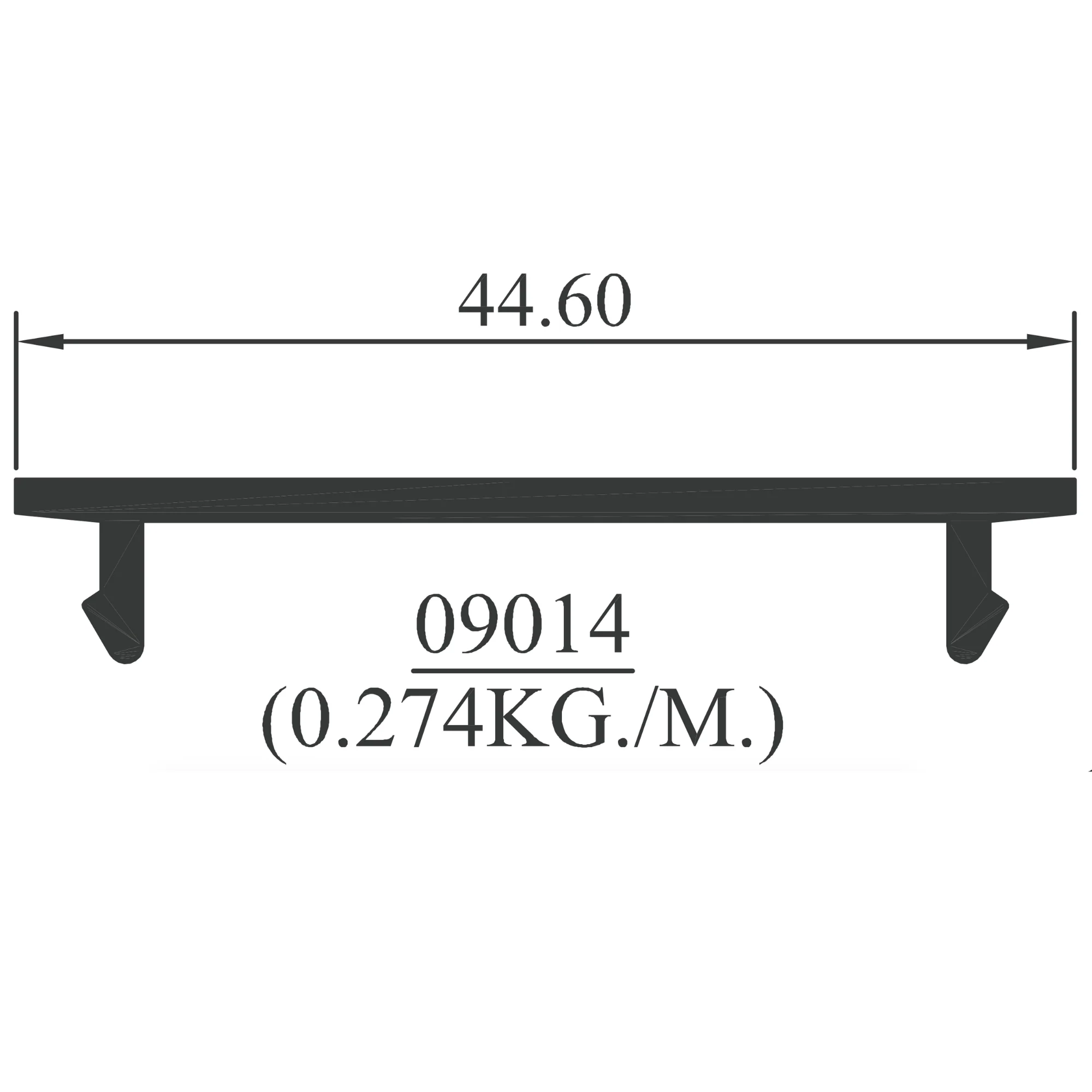

Assembly 09014 + 09015

Die numbers:: 09014, 09015

Multi-profile assembly

System features

Compatible with glass, stainless steel, and aluminium infill
Profiles include base channels, caps, posts, and decorative cover trims
Slimline aesthetic — no exposed fixings when installed
Heavy-duty variants available for wind or balcony loads
Snap-fit and clamp configurations simplify installation
Suitable for anodized or powder-coated finishes

Applications

Balcony railings and safety barriers
Staircase handrails
Glass partition tops and edge caps
Atrium and lobby balustrade systems
Mall terraces, hotels, showrooms, villas

Overview

Material: Aluminium Alloy 6063-T5
Finish Options: Mill Finish / Anodized / Powder-Coated
System Type: Aluminium Balustrade & Railing System
Infills Supported: Glass, Acrylic, Metal Balusters, Composite Panels
Glass Thickness Support: 10–21.5 mm (depending on shoe profile)
Mounting Type: Base Shoe / Edge Fix / Top Cap
Load Rating: Suitable for balcony and staircase safety loads
Accessories Compatibility: Rubber gaskets, clamps, end caps, brackets
