Cast Aluminium Components

Cast Aluminium Components is a range of 6 solid-section aluminium angle and corner profiles, used as reinforcement, corner, and finishing pieces across Mosameh's aluminium window, door and façade systems. Profiles range from a light 20 mm corner angle up to a heavy 120 mm reinforced L-section, with weights from 0.383 kg/m to 2.141 kg/m.

Parts explorer (6)

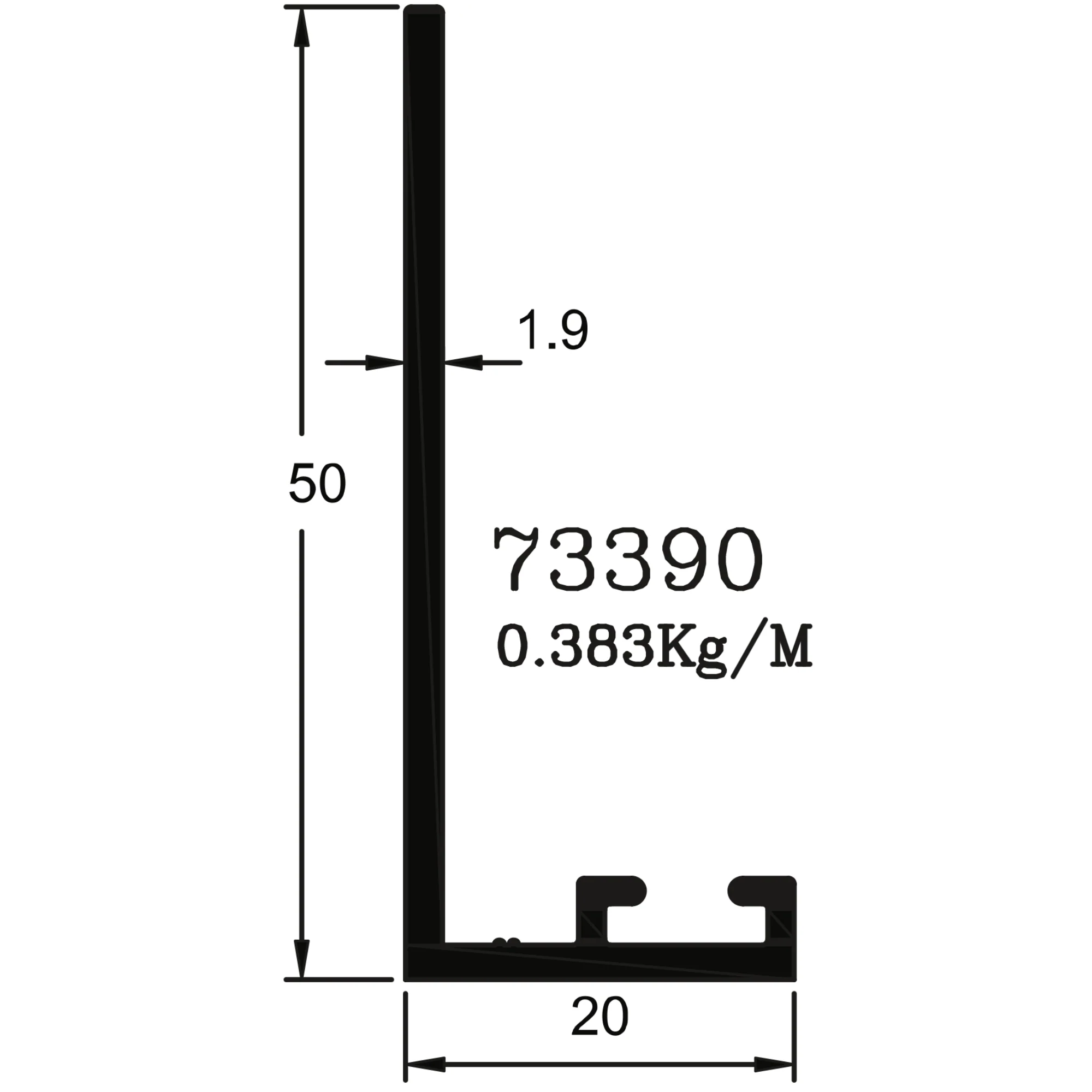

Profile 73390

Die numbers:: 73390

System features

Solid, heavy-gauge angle and L-section geometry for structural reinforcement
Multiple leg lengths (20-120 mm) to suit different frame and corner-junction sizes
Compatible across Mosameh's aluminium window, door and curtain-wall ranges
Corrosion resistant extruded aluminium
Suitable for mill, anodized or powder-coated finishes

Applications

Corner and junction reinforcement for aluminium window and door frames
Structural stiffening of larger frame assemblies
Façade and curtain-wall corner detailing
General fabrication bracketry

Overview

Material: Aluminium Alloy 6063-T5 (not stated on source drawing — assumed consistent with rest of range; please confirm)
Finish Options: Mill Finish / Anodized / Powder-Coated
System Size: Leg/section size 20-120 mm

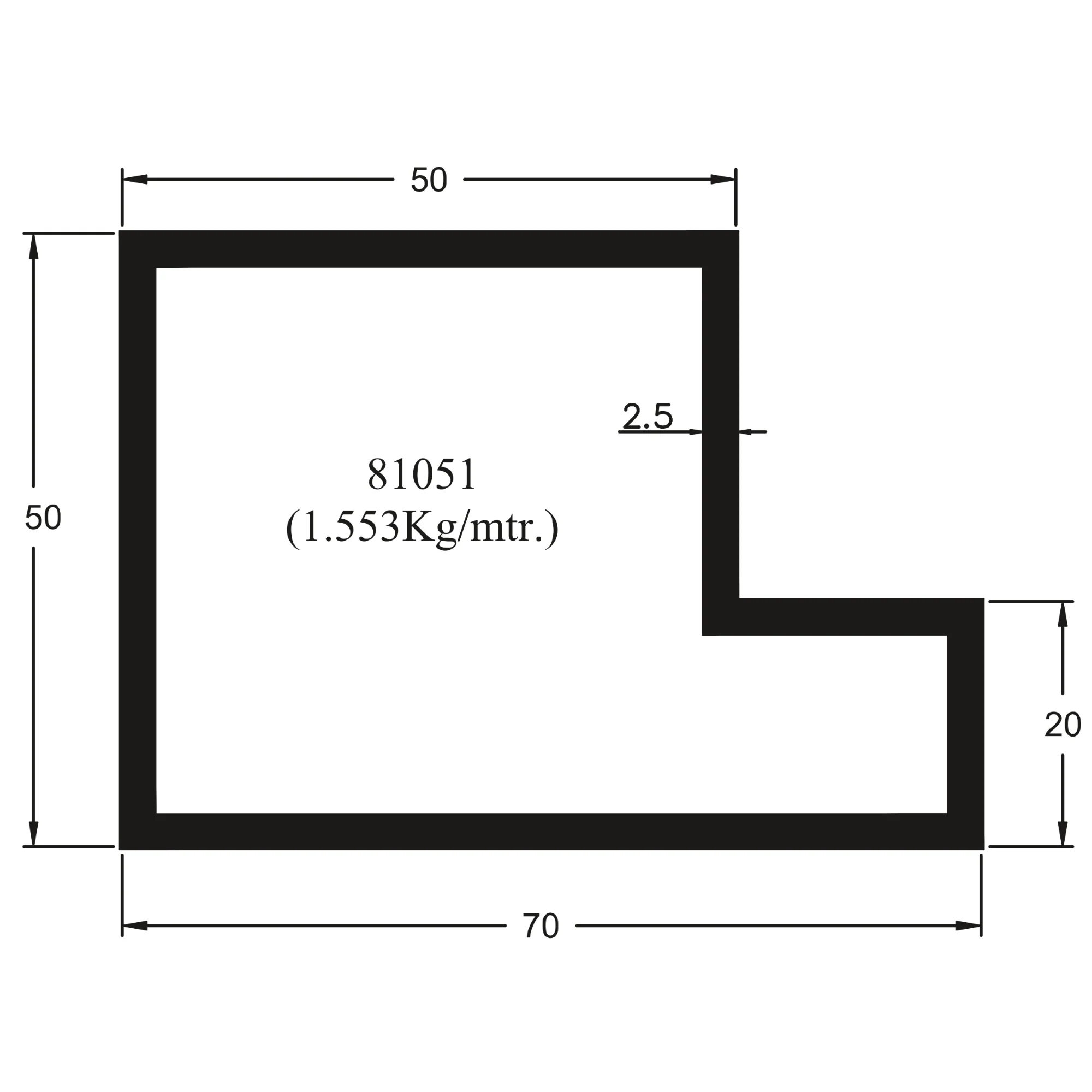

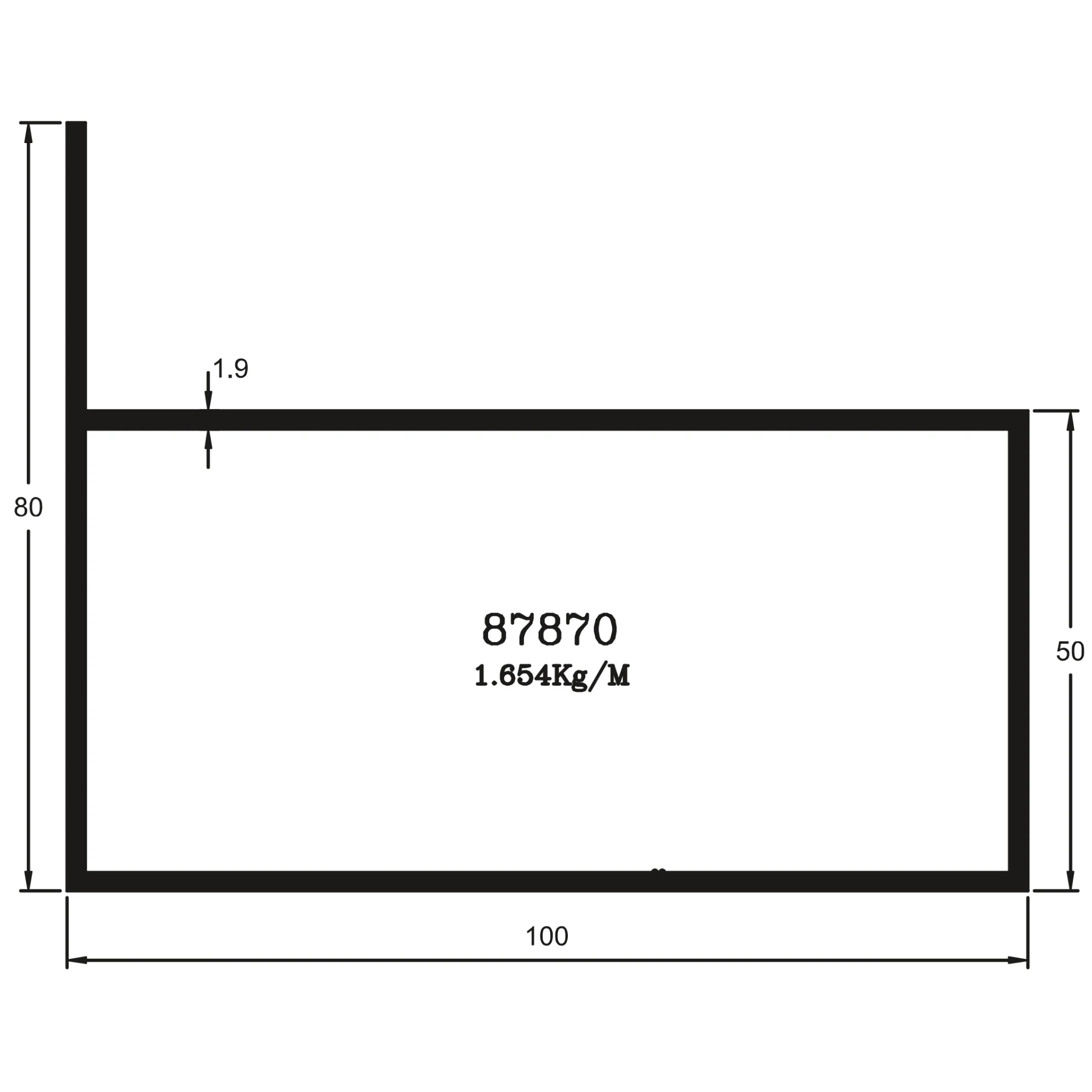

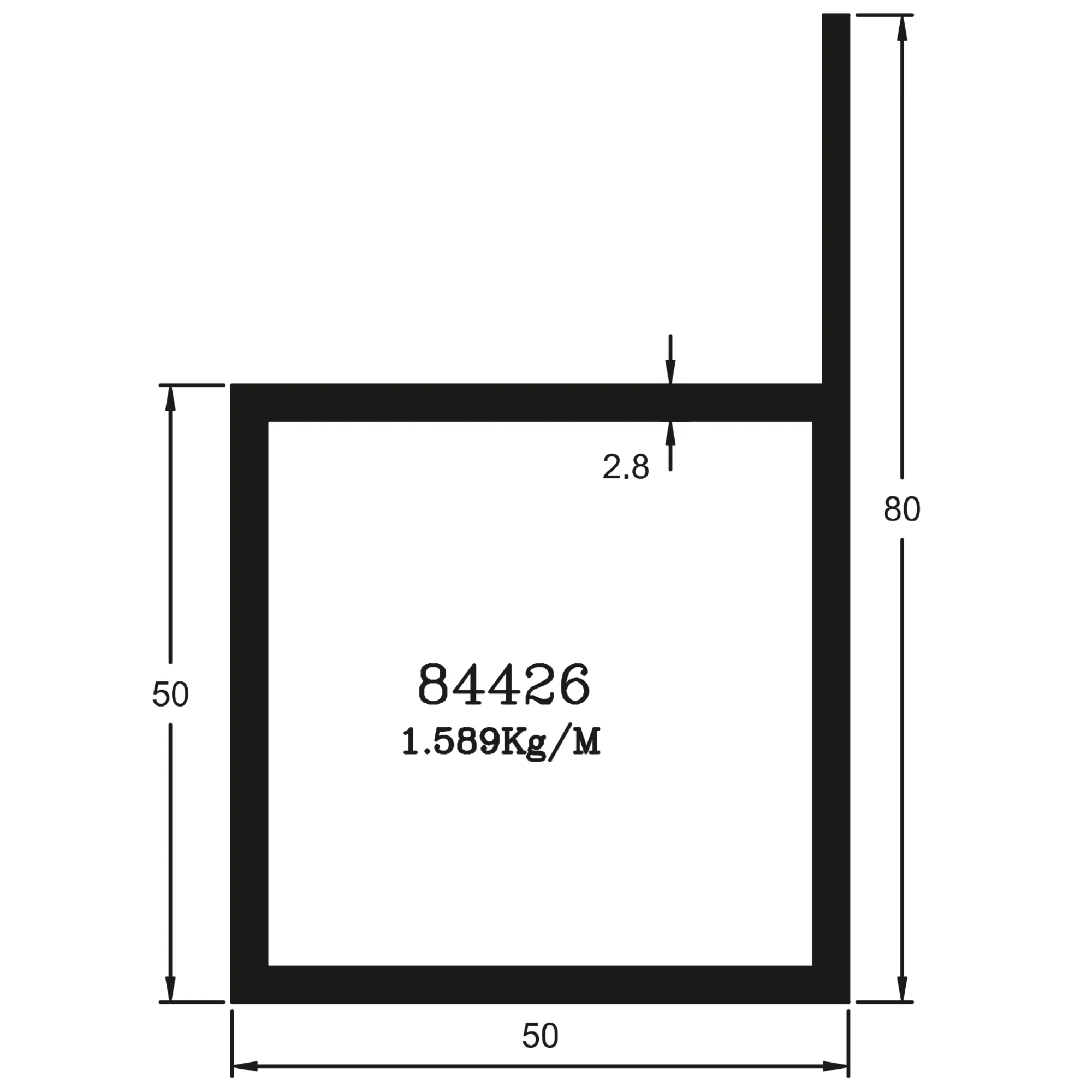

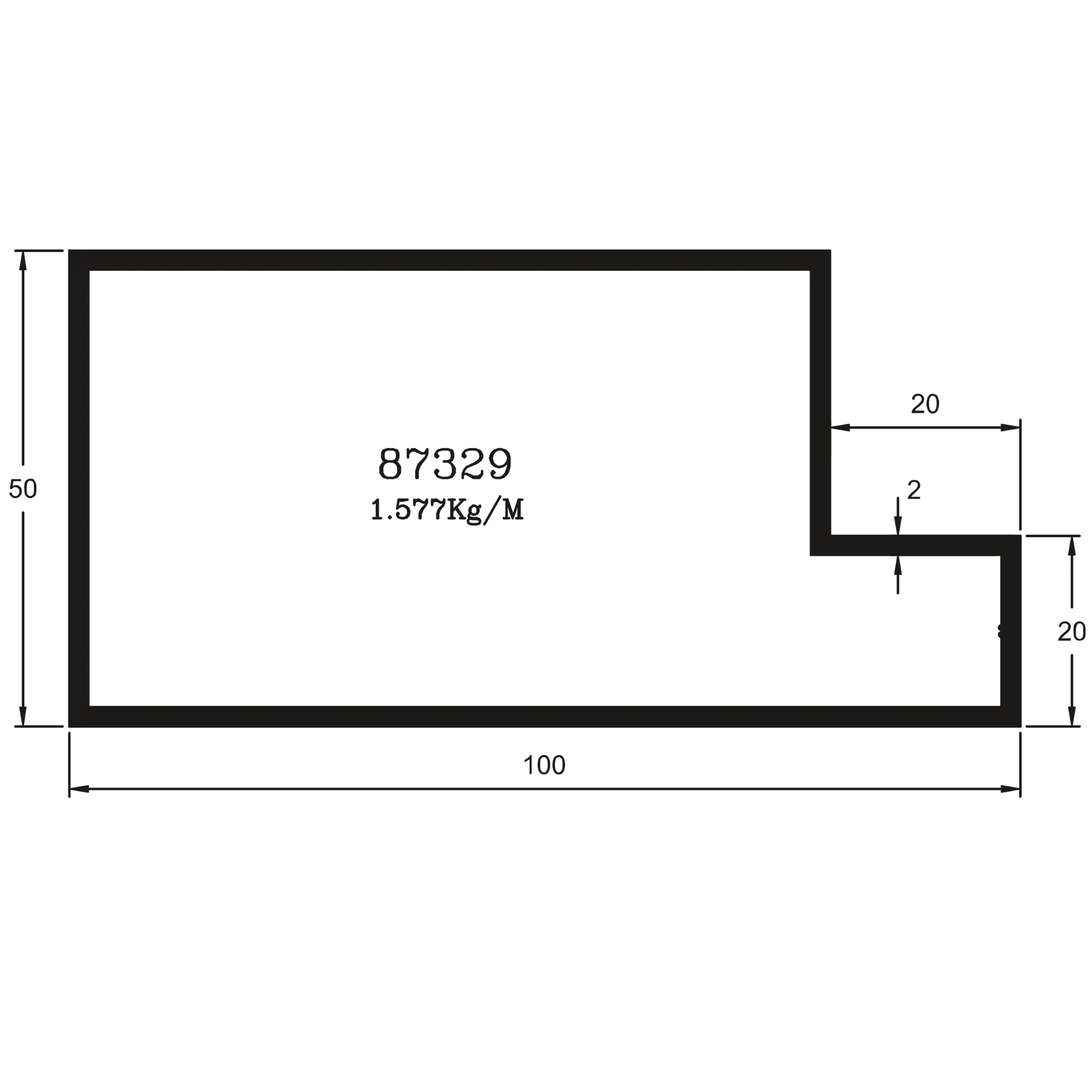

Profile count: 6 unique die numbers (81865, 73390, 81051, 87870, 87329, 84426)

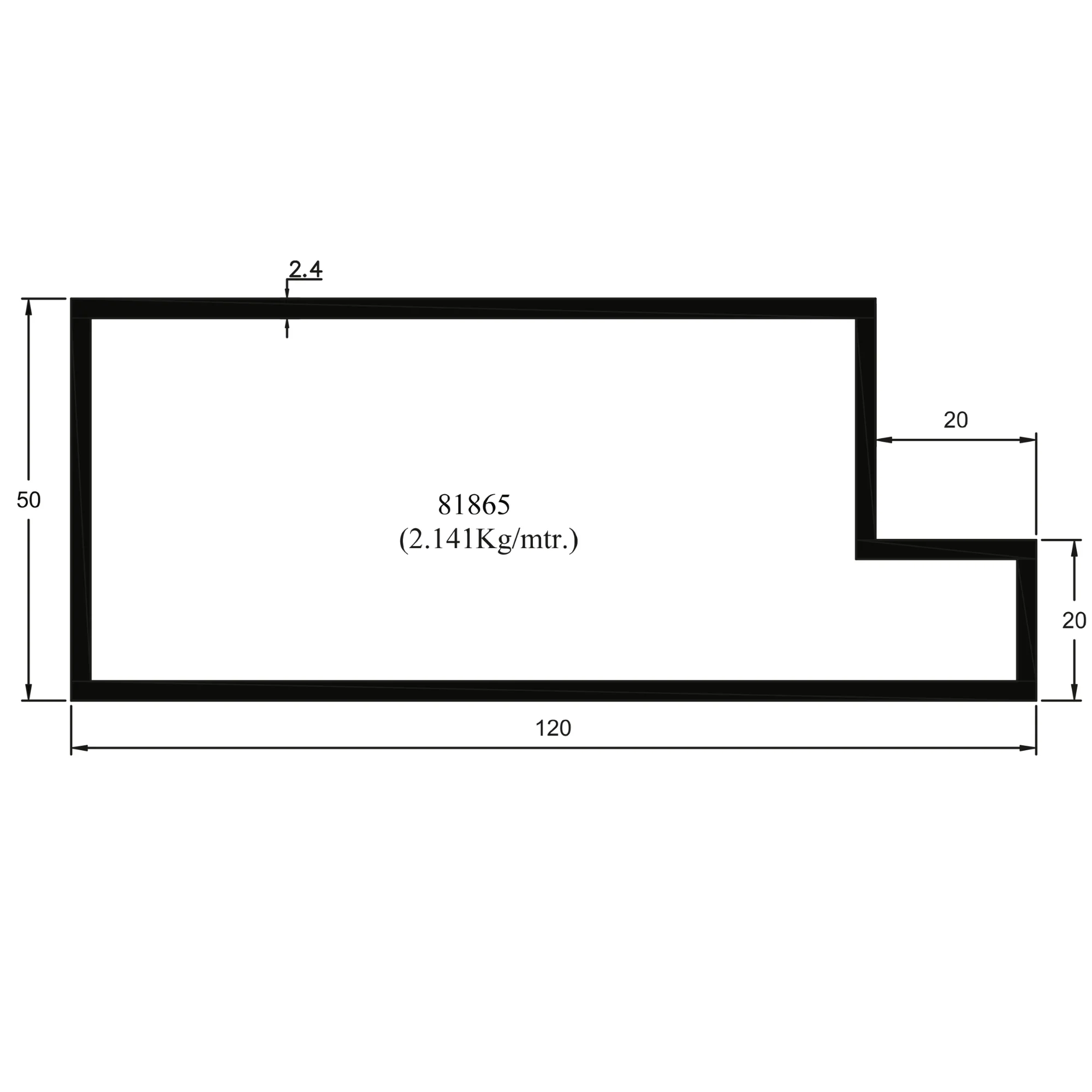

Weight range: 0.383 kg/m (73390) to 2.141 kg/m (81865)
