Frame & Sash Profiles

Frame & Sash Profiles is a range of 4 extruded aluminium components — a curtain-wall frame profile, a matching sash profile, a glazing retention clip, and a light bead/clip section — designed to be assembled together (with fasteners and gaskets) into a complete glazed frame unit, as shown in the system's installation cross-section.

Parts explorer (5)

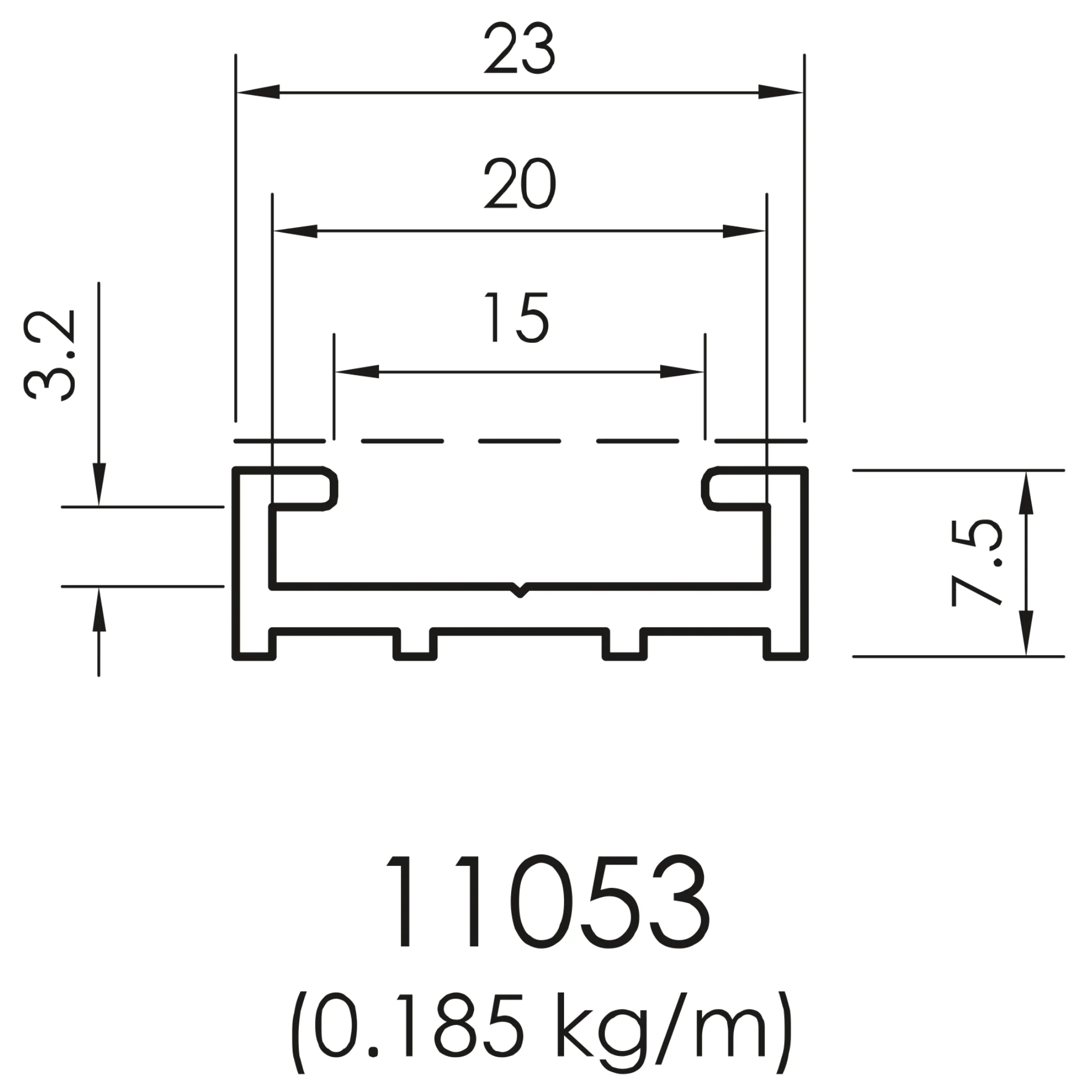

Profile 11053

Die numbers:: 11053

System features

Matched frame + sash profile pair for curtain-wall style glazed assemblies
Dedicated glazing clip for tool-free glass retention
Light-gauge bead/clip profile for trims and closures
Compatible with standard screw-fix assembly (see installation detail)
Corrosion resistant extruded aluminium

Applications

Curtain-wall and glazed façade framing
Shopfront and display glazing
Interior glass partition framing

Overview

Material: Aluminium Alloy 6063-T5 (not stated on source drawing — assumed consistent with rest of range; please confirm)
Finish Options: Mill Finish / Anodized / Powder-Coated
System Size: Frame depth approx. 33-34 mm

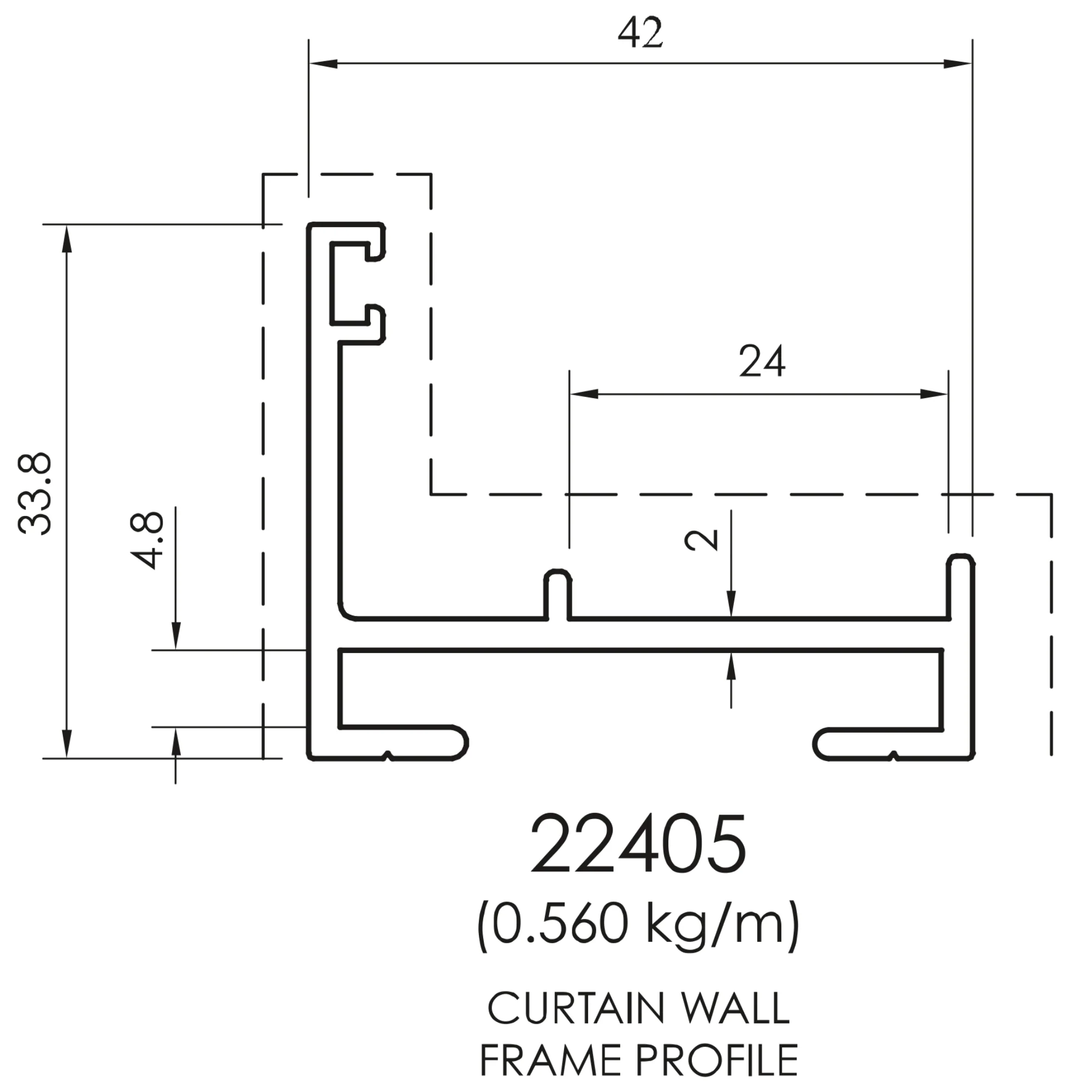

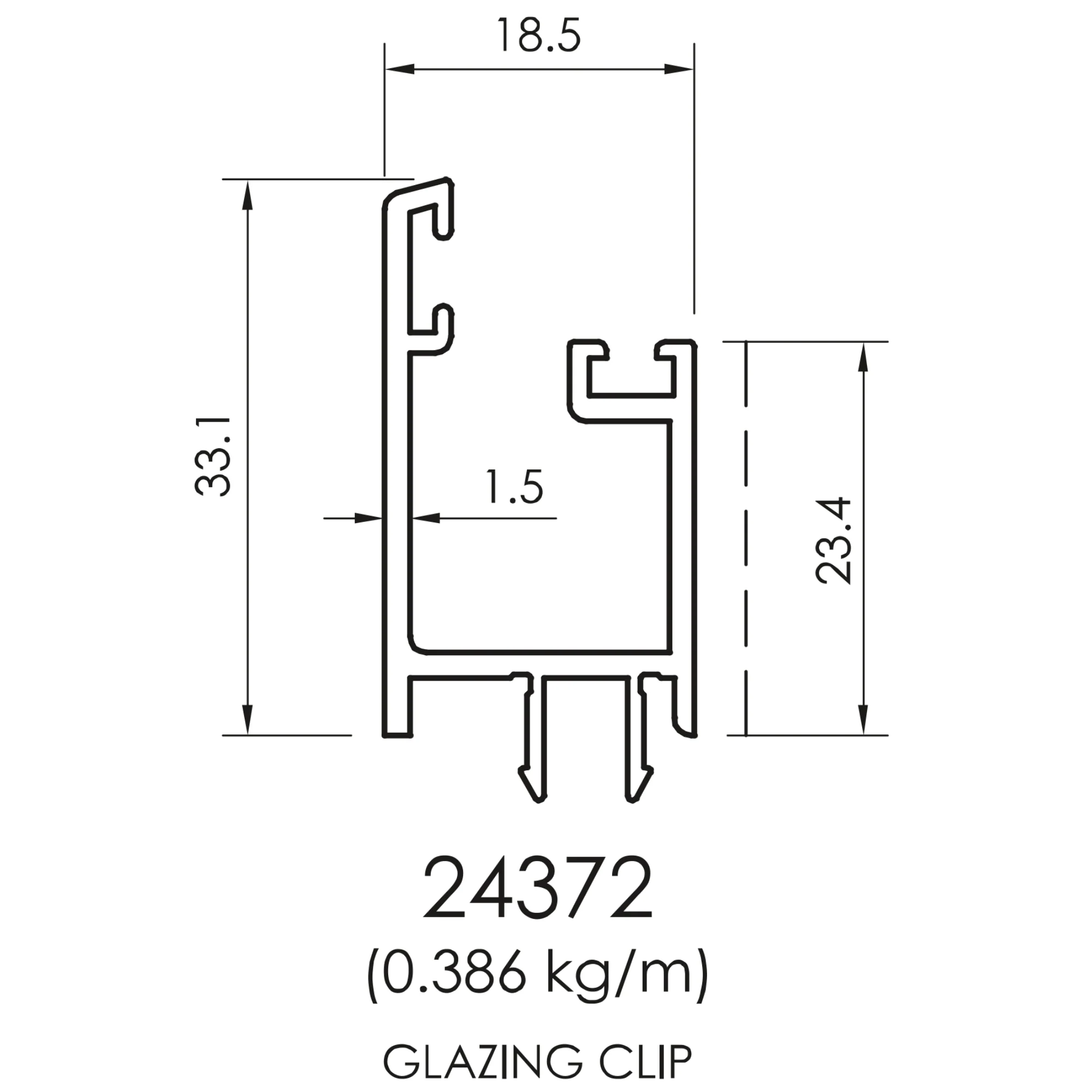

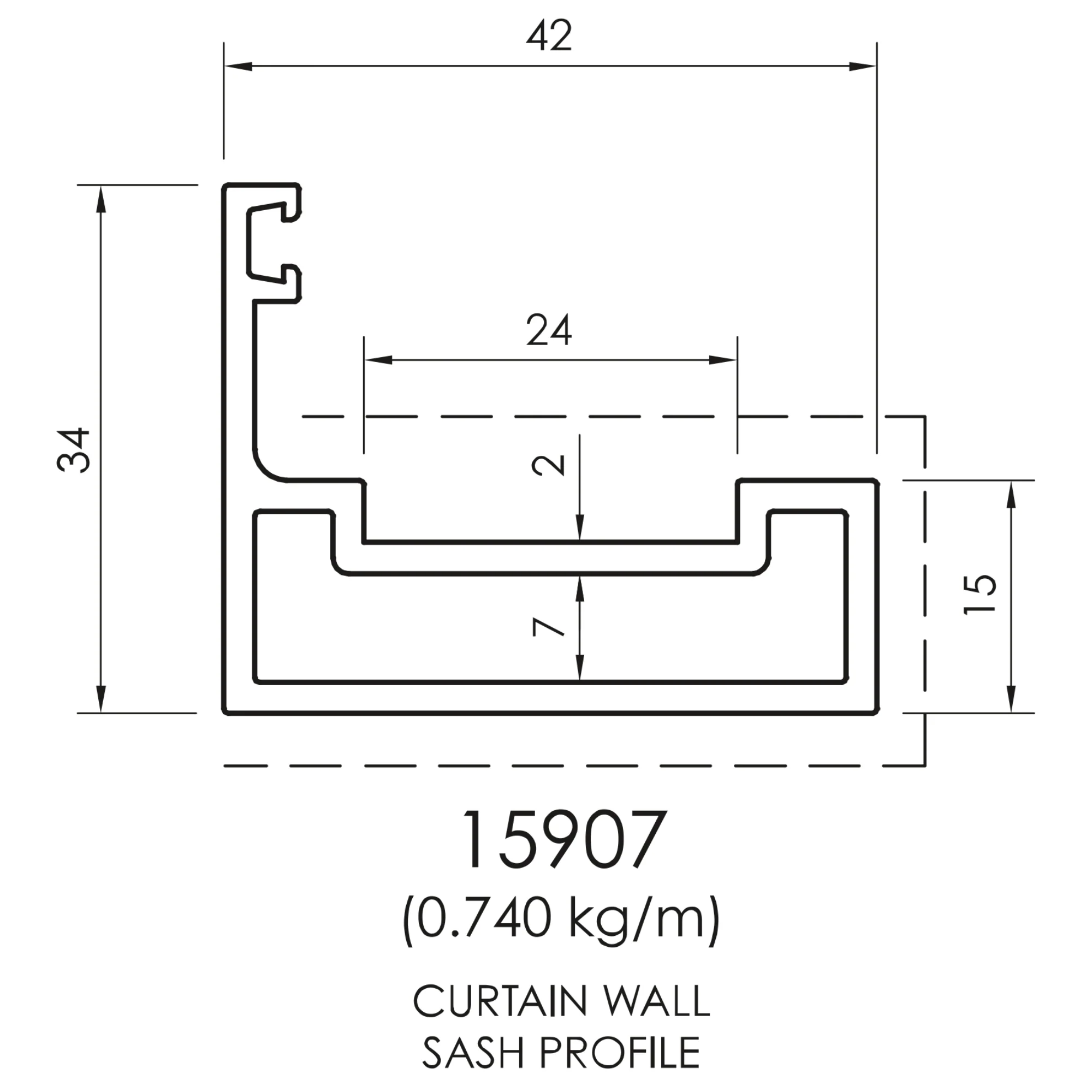

Profile count: 4 unique die numbers (22405 Curtain Wall Frame Profile, 15907 Curtain Wall Sash Profile, 24372 Glazing Clip, 11053)

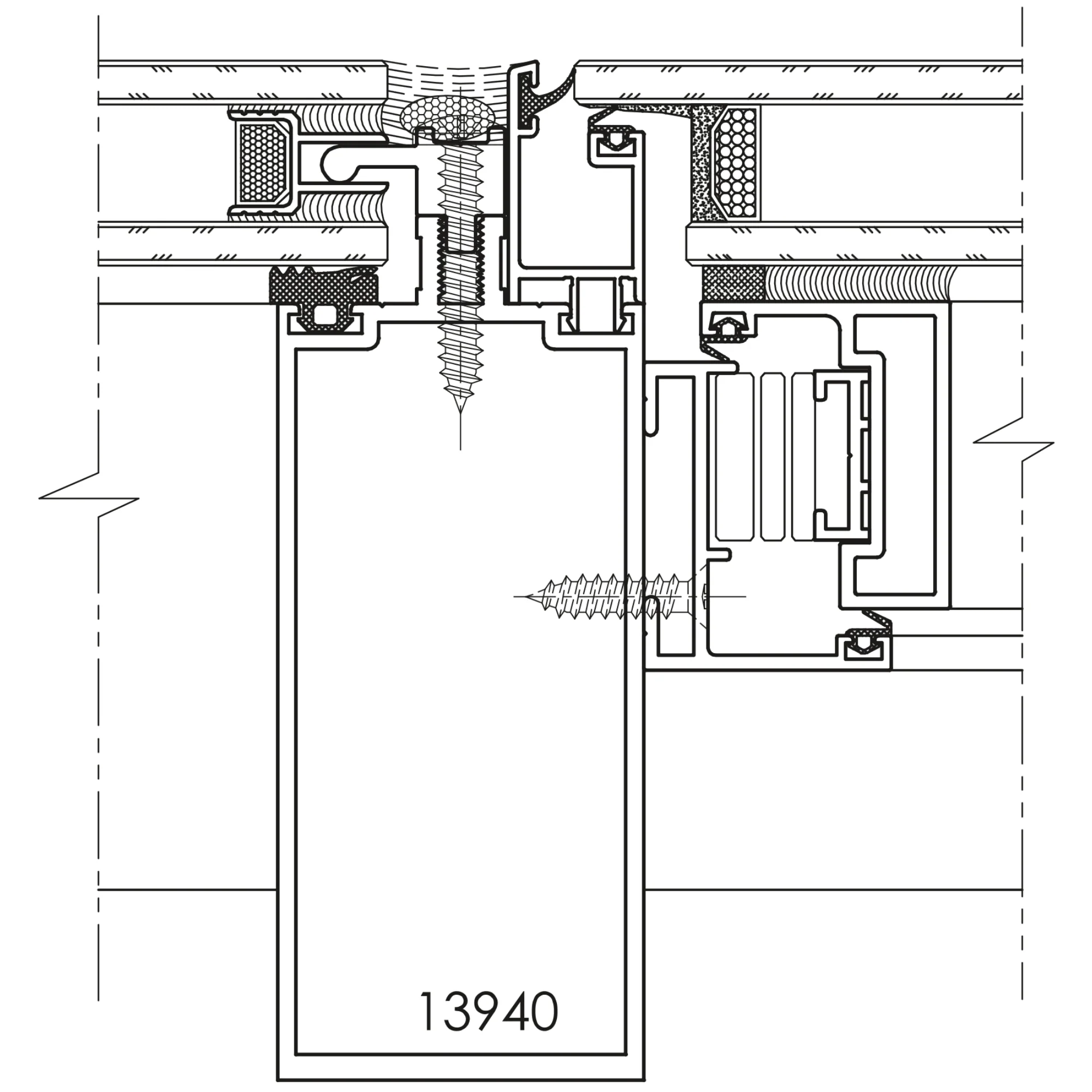

Weight range: 0.185 kg/m (11053) to 0.740 kg/m (15907) source sheet also shows an installation/assembly cross-section (ref. 13940) with these parts fixed together using screws and gaskets — not a standalone extrusion
