Louver System

The Louver System is a range of 5 extruded aluminium blade (fin) profiles used to build ventilation and shading louver banks. Each blade uses a lens-shaped, aerofoil-style cross-section that sheds rain while allowing airflow through, with snap-fit clip ends on the larger blades so runs can be joined end-to-end. Blades are installed into the companion Louver & Amplimesh Frame System to form a complete screen or louver bank.

Parts explorer (5)

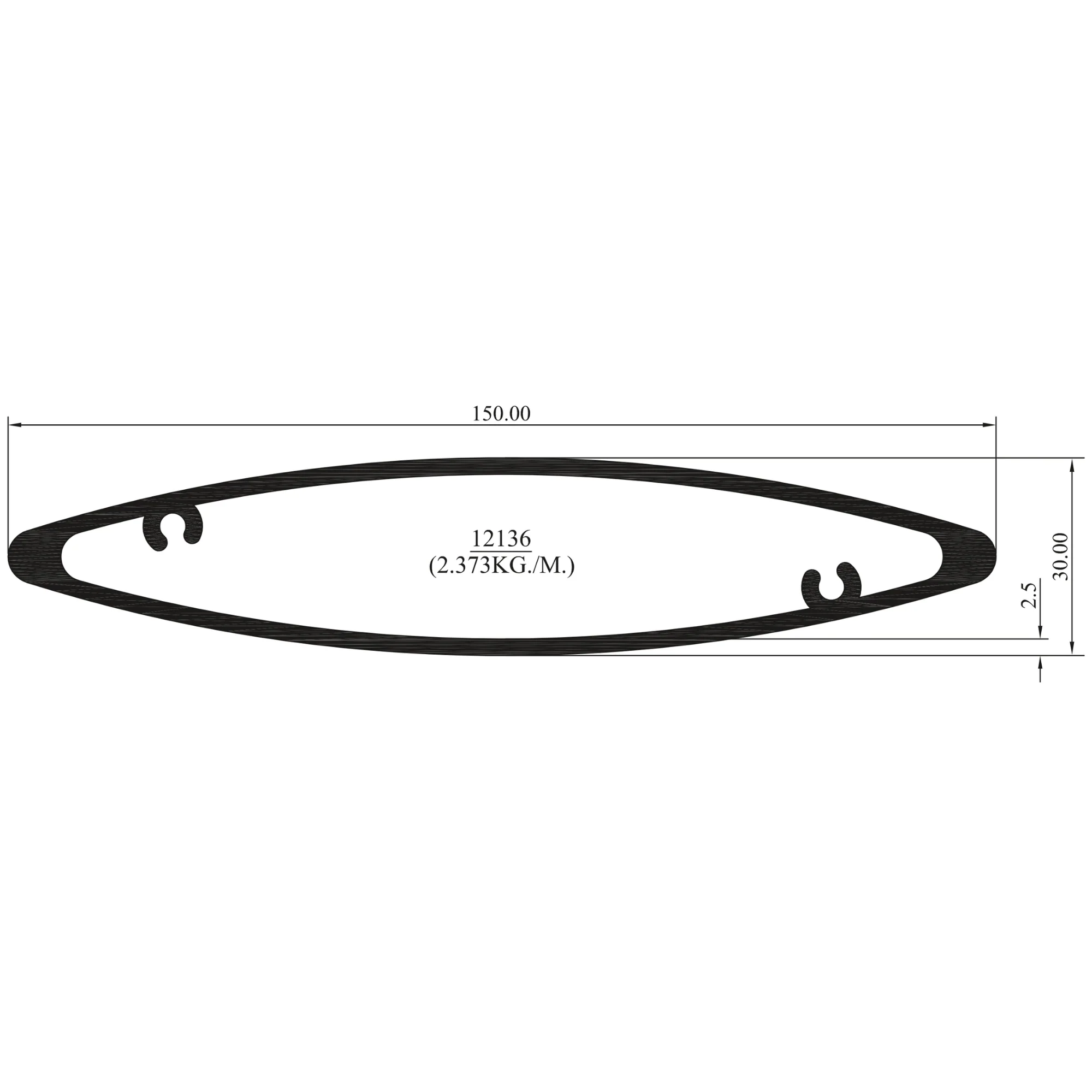

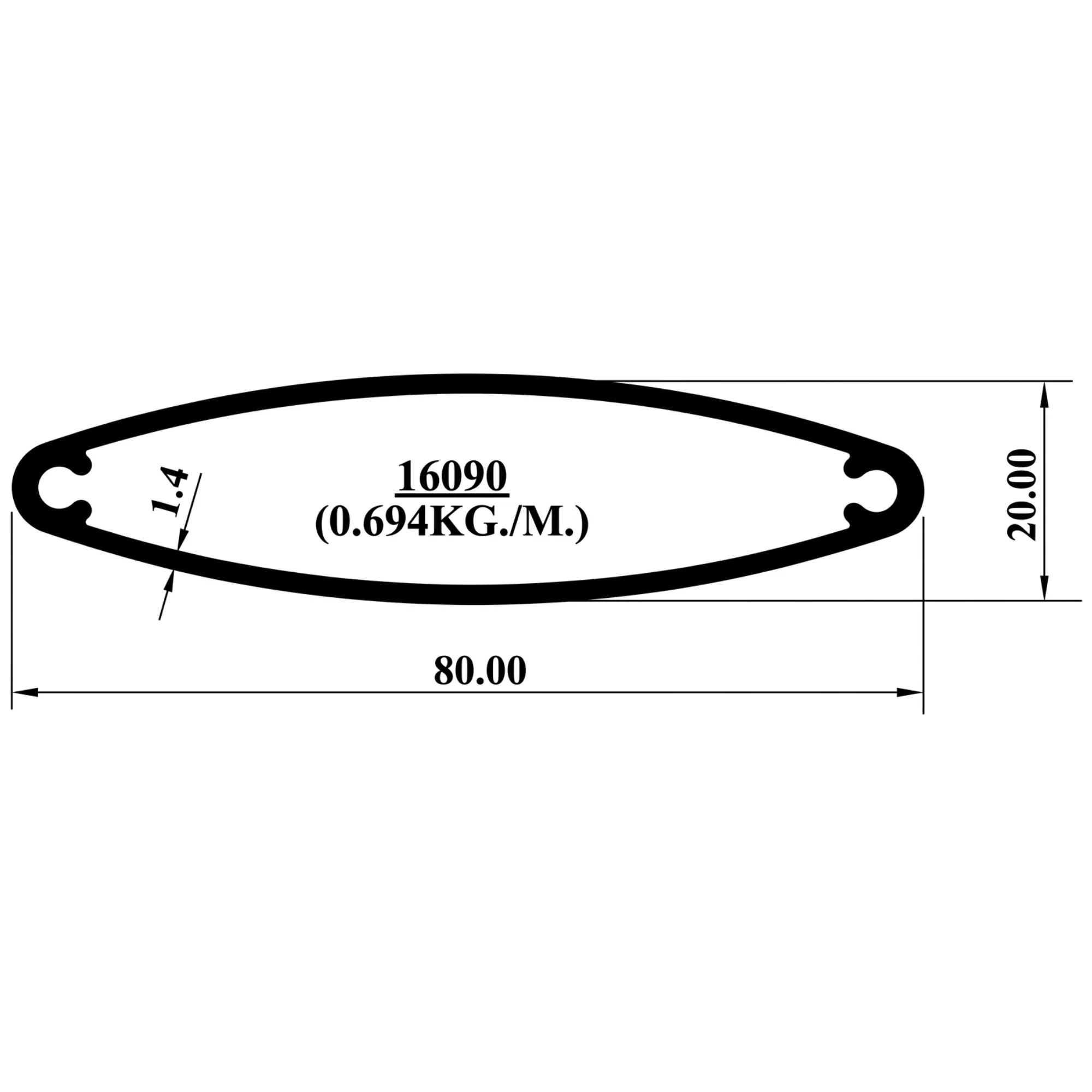

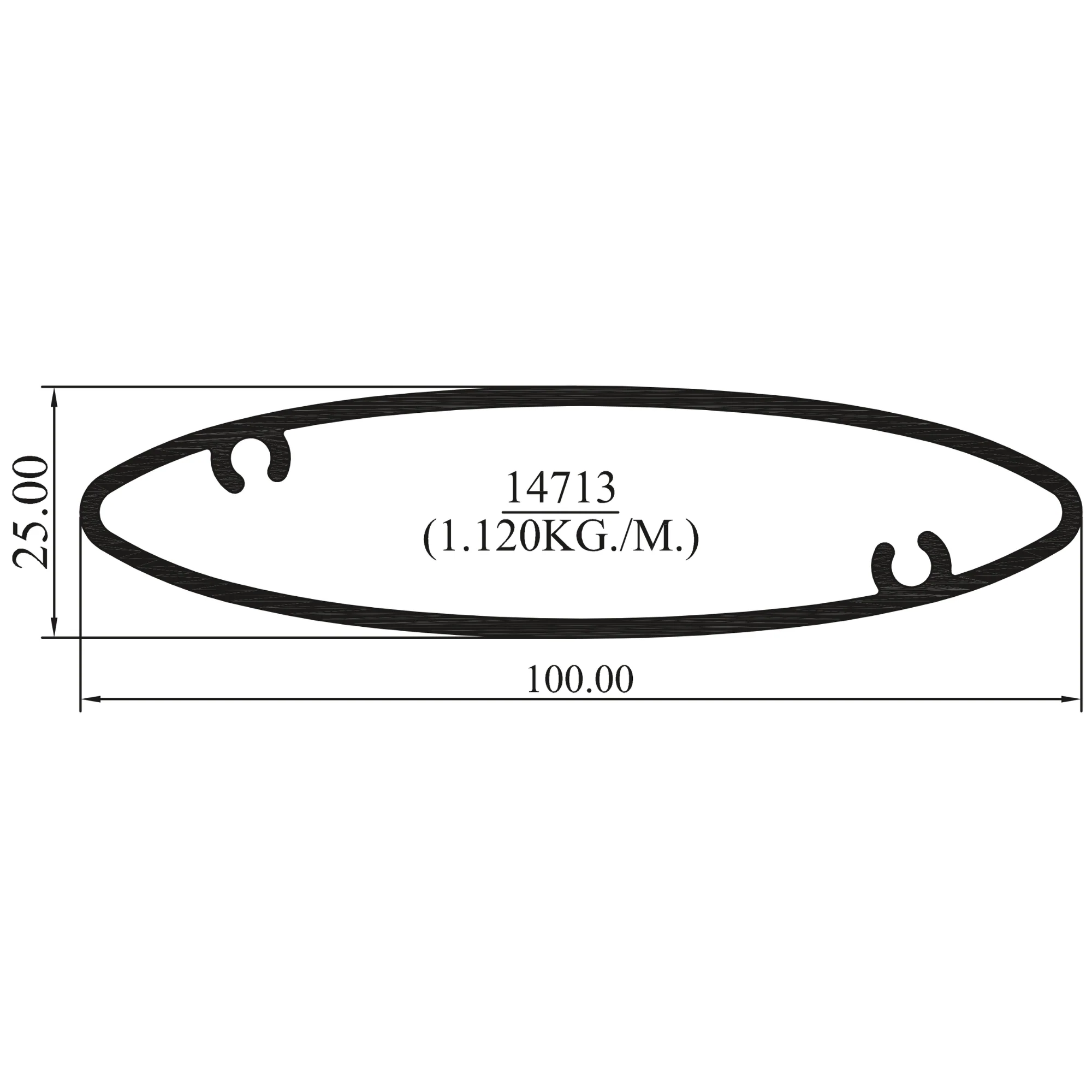

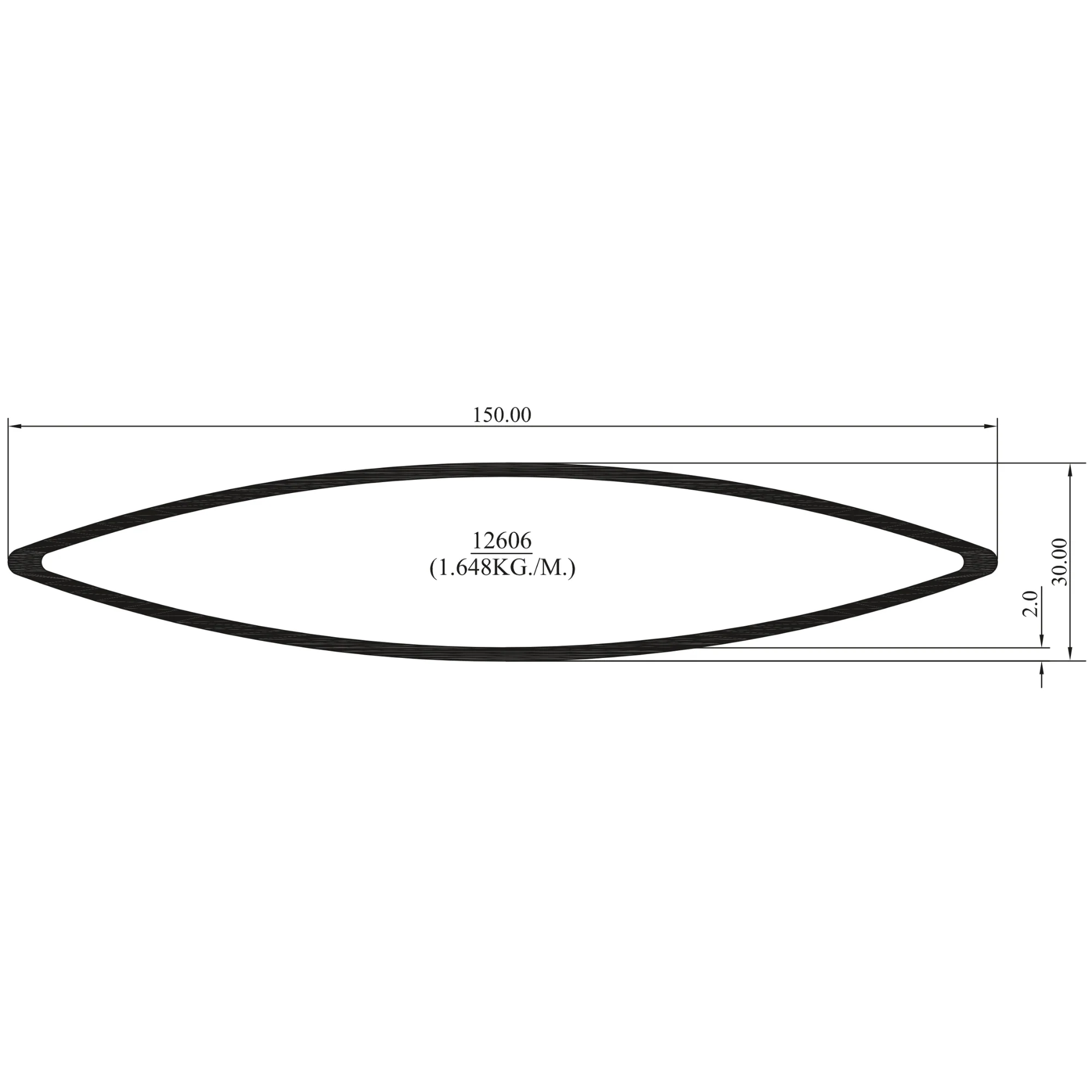

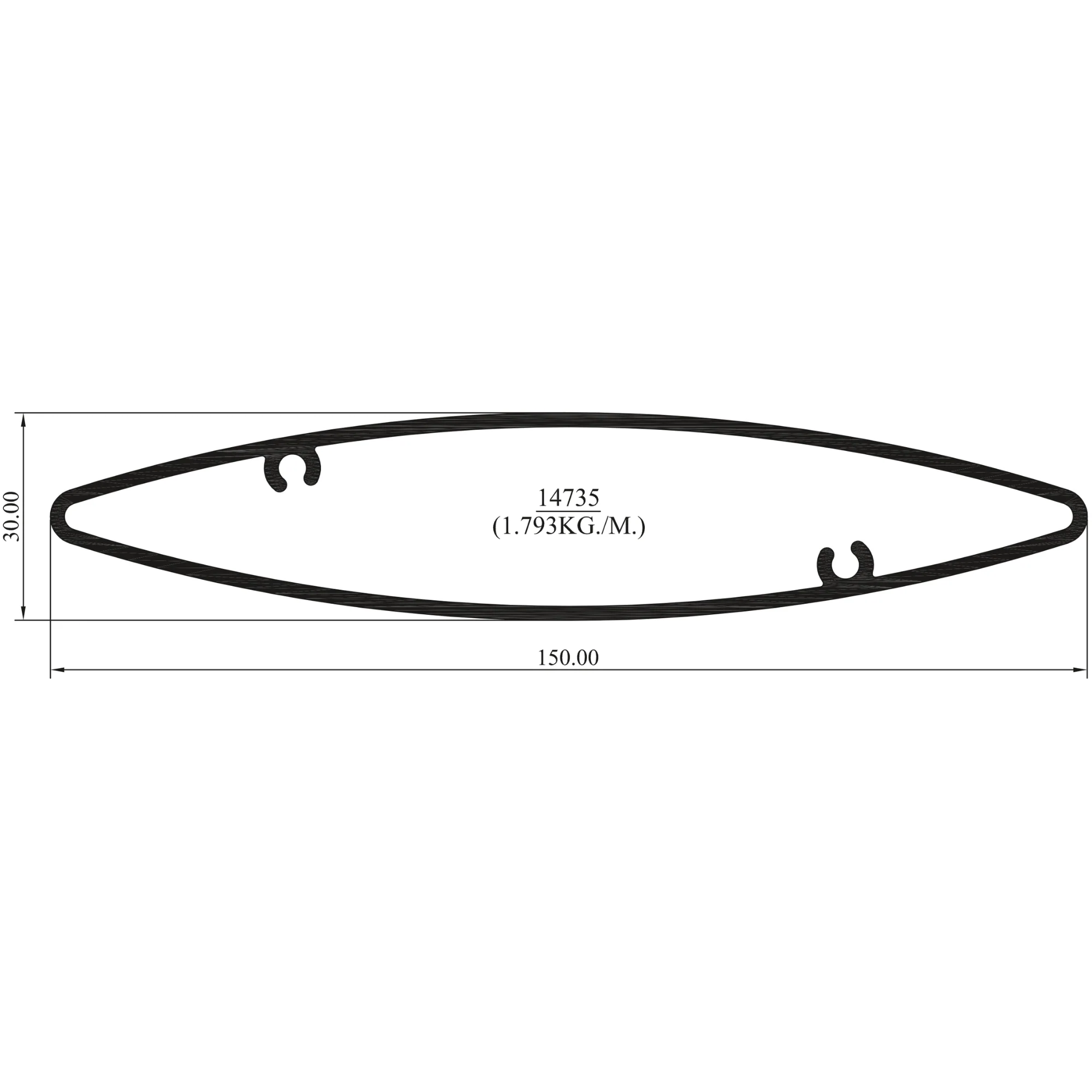

Profile 12136

Die numbers:: 12136

System features

Customizable frame combinations for louvers, mesh panels, or glass inserts
Compatible with amplimesh (expanded metal) and fly screen mesh
Allows angled air flow using blade profiles (e.g. 09153, 09029)
Lightweight yet structurally rigid
Suitable for interior ventilation panels and exterior shading
Easy fabrication — cutting, drilling, or clipping without welding
Aerofoil/lens blade shape sheds rainwater while permitting airflow
Snap-fit clip ends for continuous multi-blade runs
Four width options (80, 100 and 150 mm) to tune airflow vs. shading/privacy
Lightweight extruded aluminium construction
Corrosion resistant, suitable for anodizing or powder coating

Applications

Installs into the Louver & Amplimesh Frame System for a complete assembly External wall and roof ventilation louvers
AC/plant room and generator enclosure screening
Weather and acoustic louvers
Architectural sun-shading and brise-soleil
Security and ventilation screening

Overview

Material: Aluminium Alloy 6063-T5
Finish Options: Mill Finish / Anodized / Powder-Coated
System Size: Blade width 80–150 mm; blade depth 20–30 mm
