Louvers & Amplimesh Frame System

The Louvers & Amplimesh Frame System is a range of 10 extruded aluminium frame/carrier profiles that form the surrounding structure for either louver blade banks (see Louver System) or Amplimesh mesh infill panels. The range spans light snap-fit clip beads used to retain mesh or blade edges, angled/raked sub-frame sections for sloped louver banks, and a heavy base/track section for structural mounting.

Parts explorer (10)

Profile 09006

Die numbers:: 09006

System features

Modular frame family compatible with both louver blades and Amplimesh mesh infill
Includes mullion, sub-frame and snap-fit bead profiles for tool-free retention
Two raked/angled profiles for sloped louver bank installations
Heavy base/track profile (09055) for structural mounting
Wide profile range from light clip beads to structural sections
Corrosion resistant extruded aluminium

Applications

Ventilation louver banks for AC plant, generator and utility enclosures
Amplimesh security/privacy mesh screening frames
Façade and parapet screening
Service yard and rooftop plant screening
Combined louver-and-mesh hybrid screens

Overview

Material: Aluminium Alloy 6063-T5
Finish Options: Mill Finish / Anodized / Powder-Coated
System Size: Component depth range: 14–97 mm

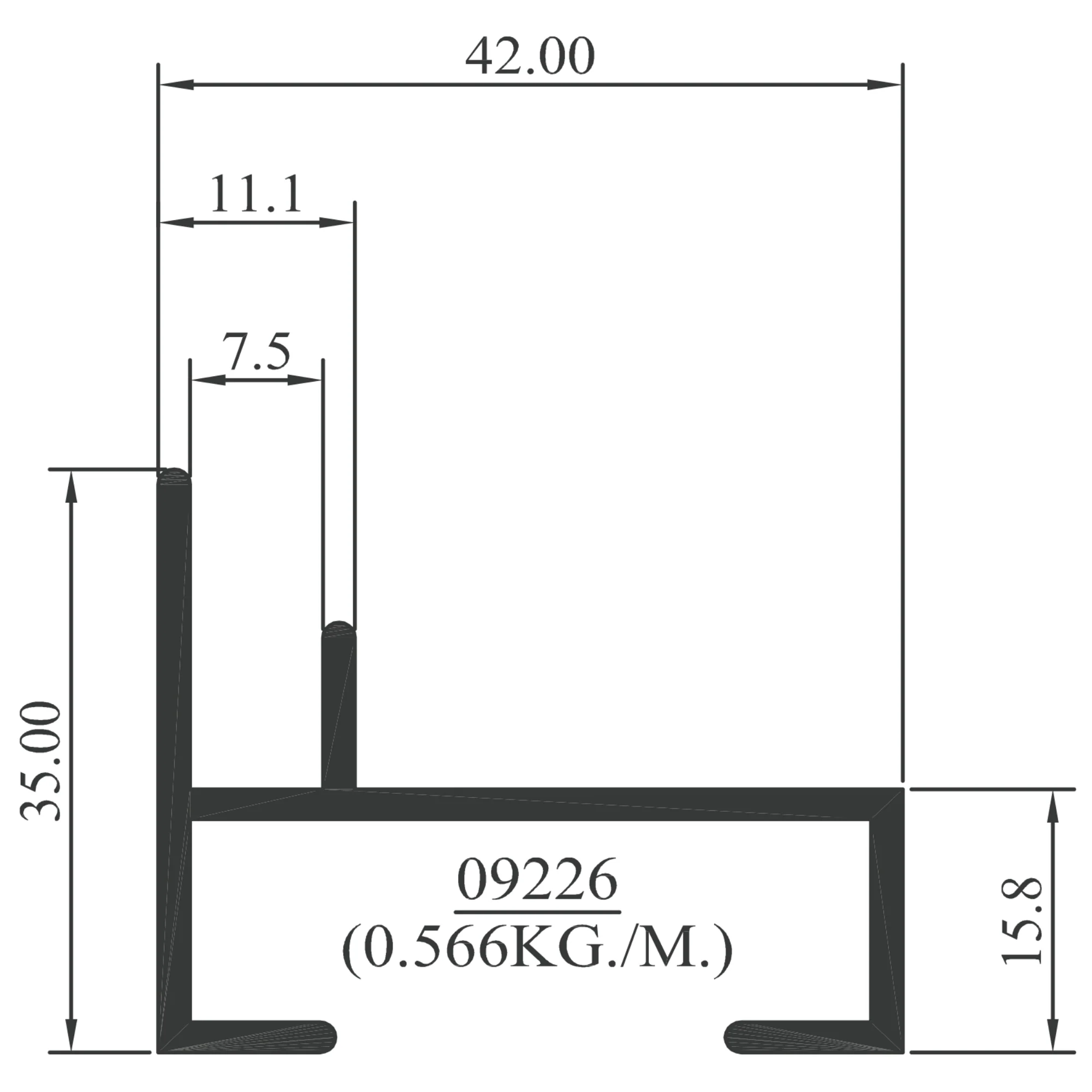

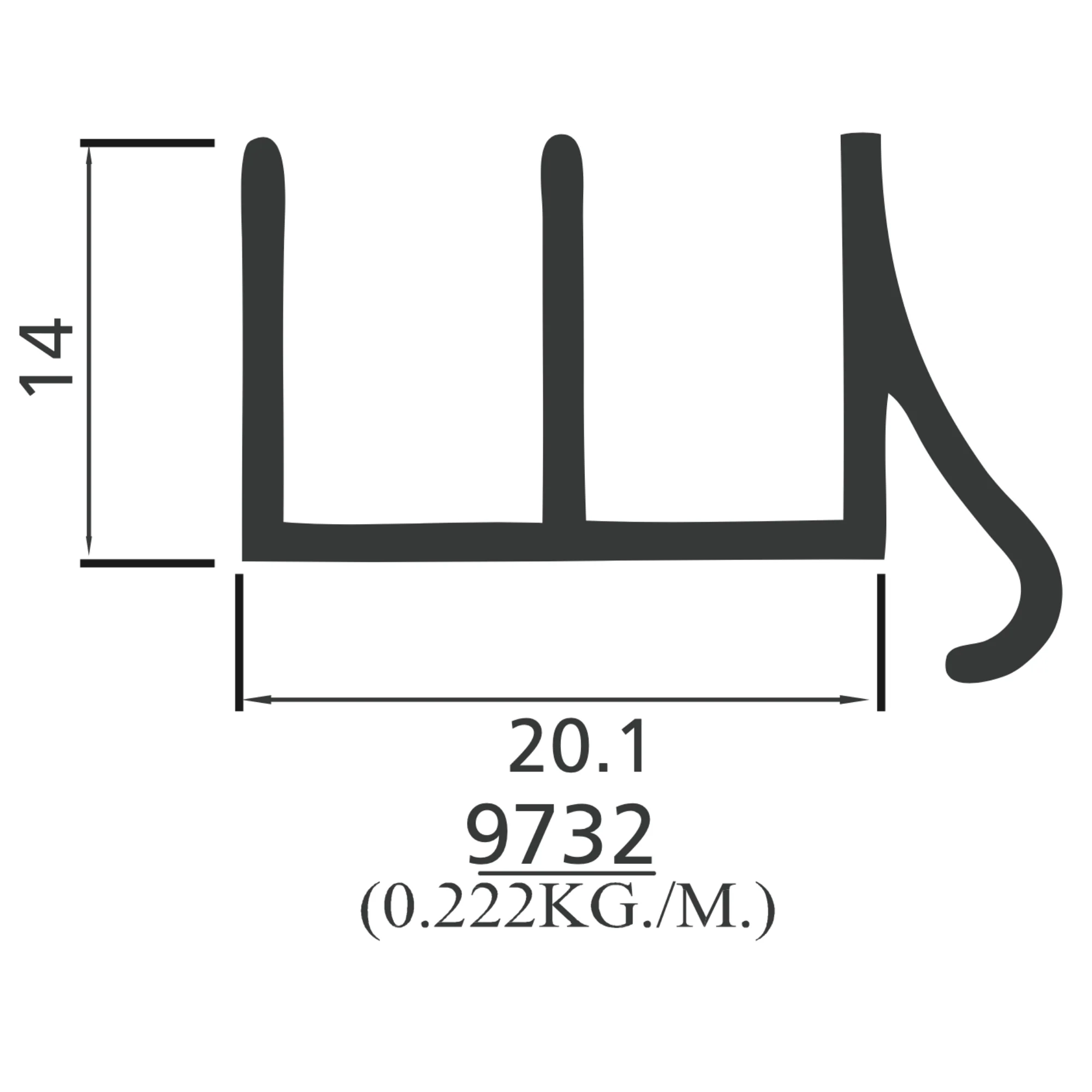

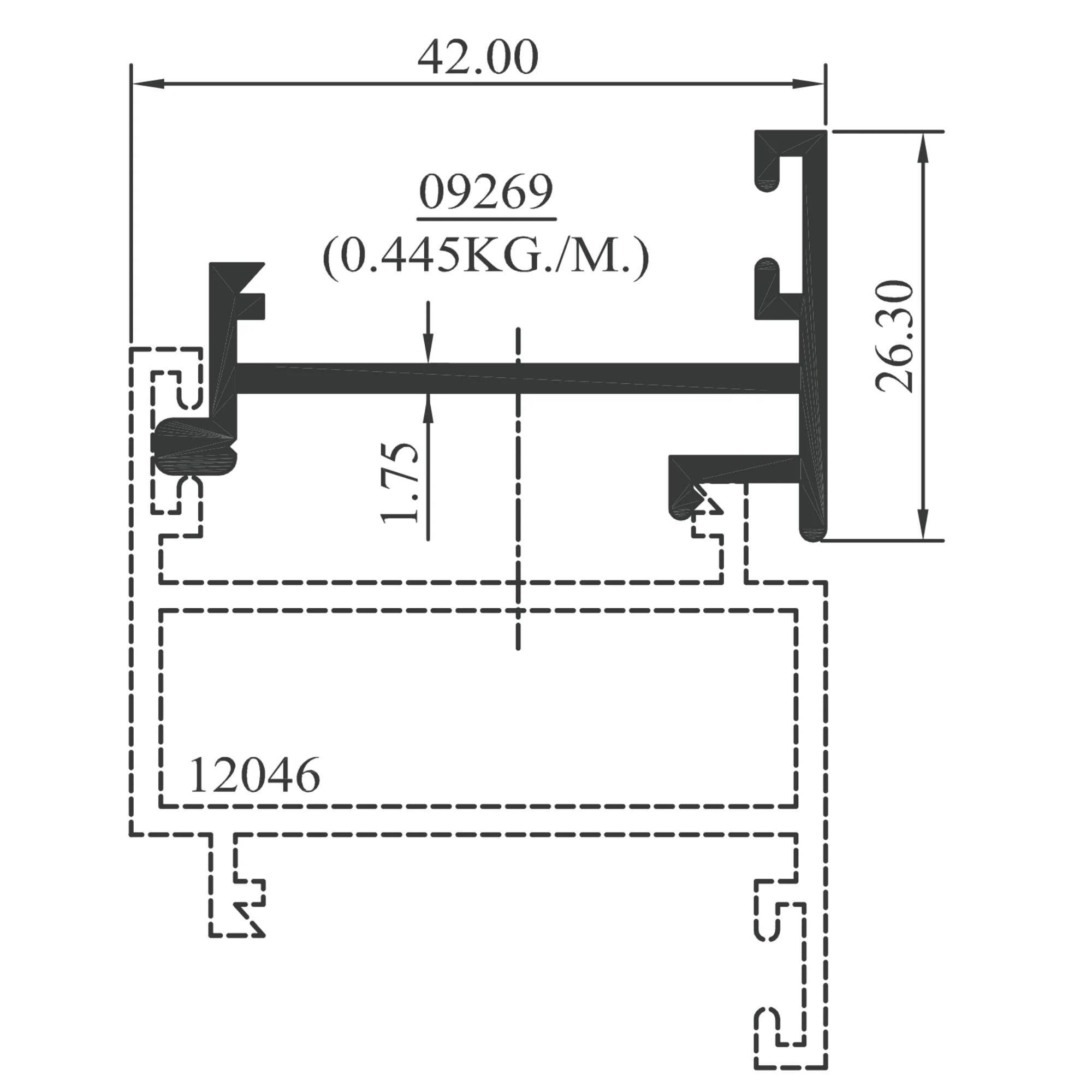

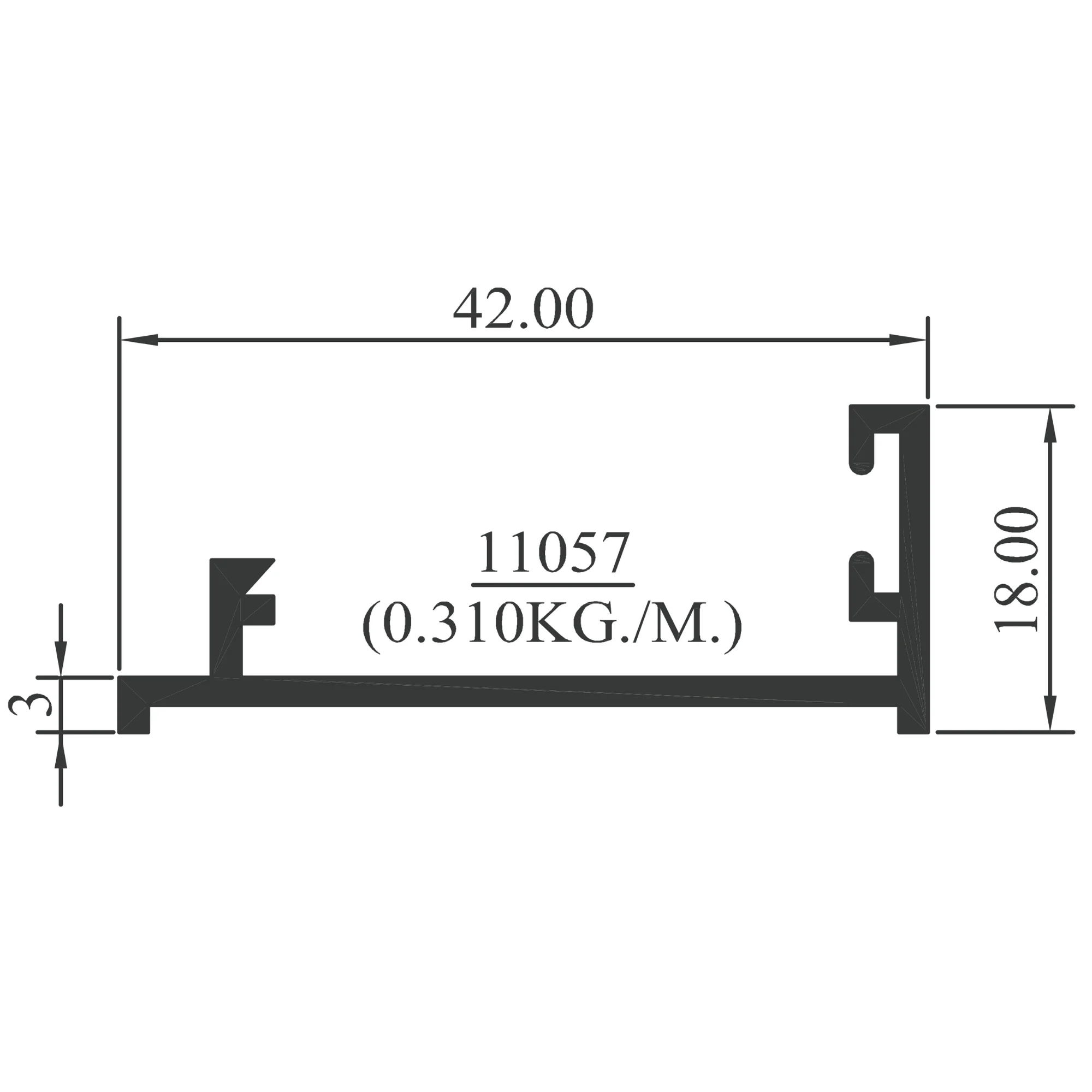

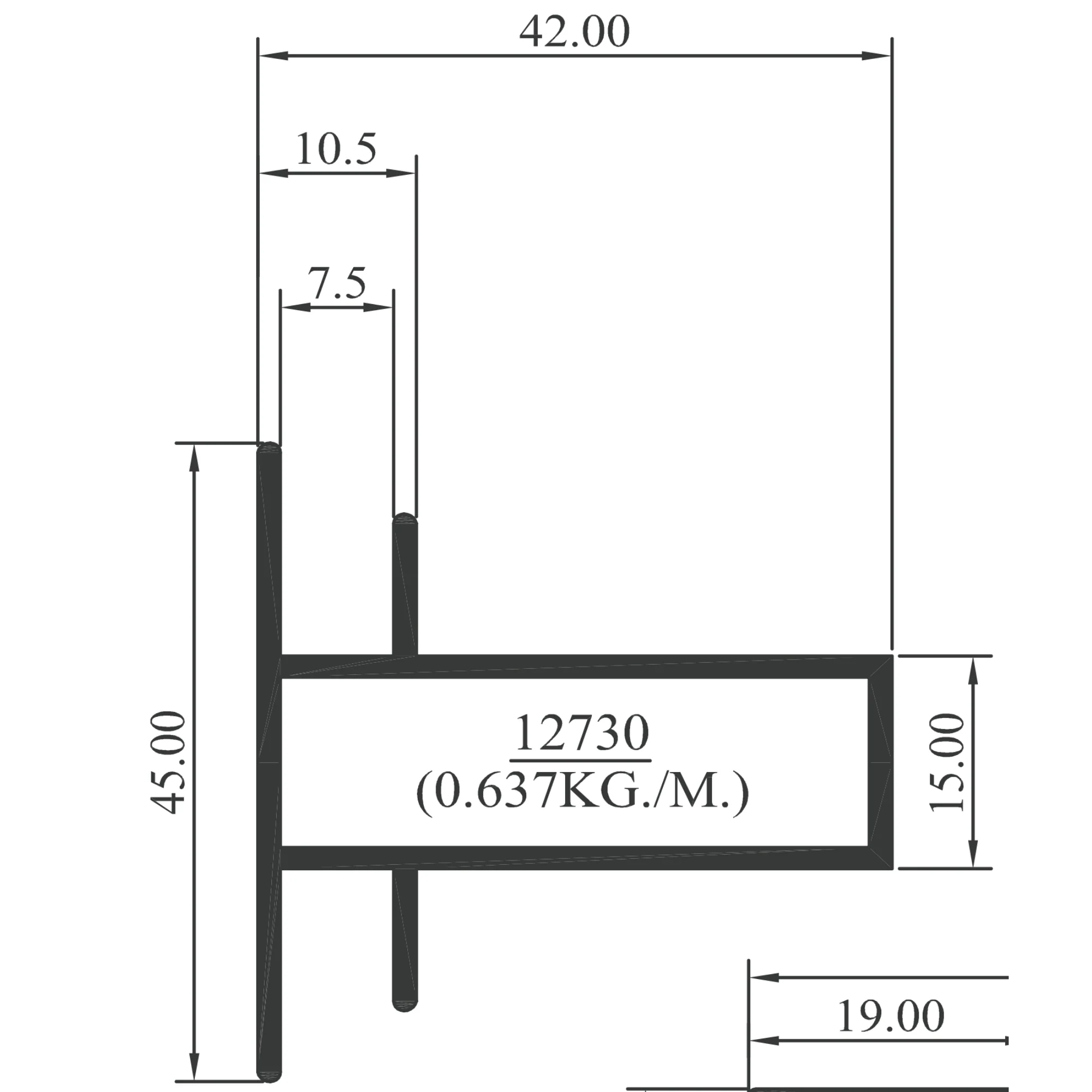

Profile count: 10 unique die numbers (09226, 12730, 9732, 09269, 9153, 09029, 10416, 11057, 09006, 09055) plus one phantom/mating reference (12046, no standalone weight given)

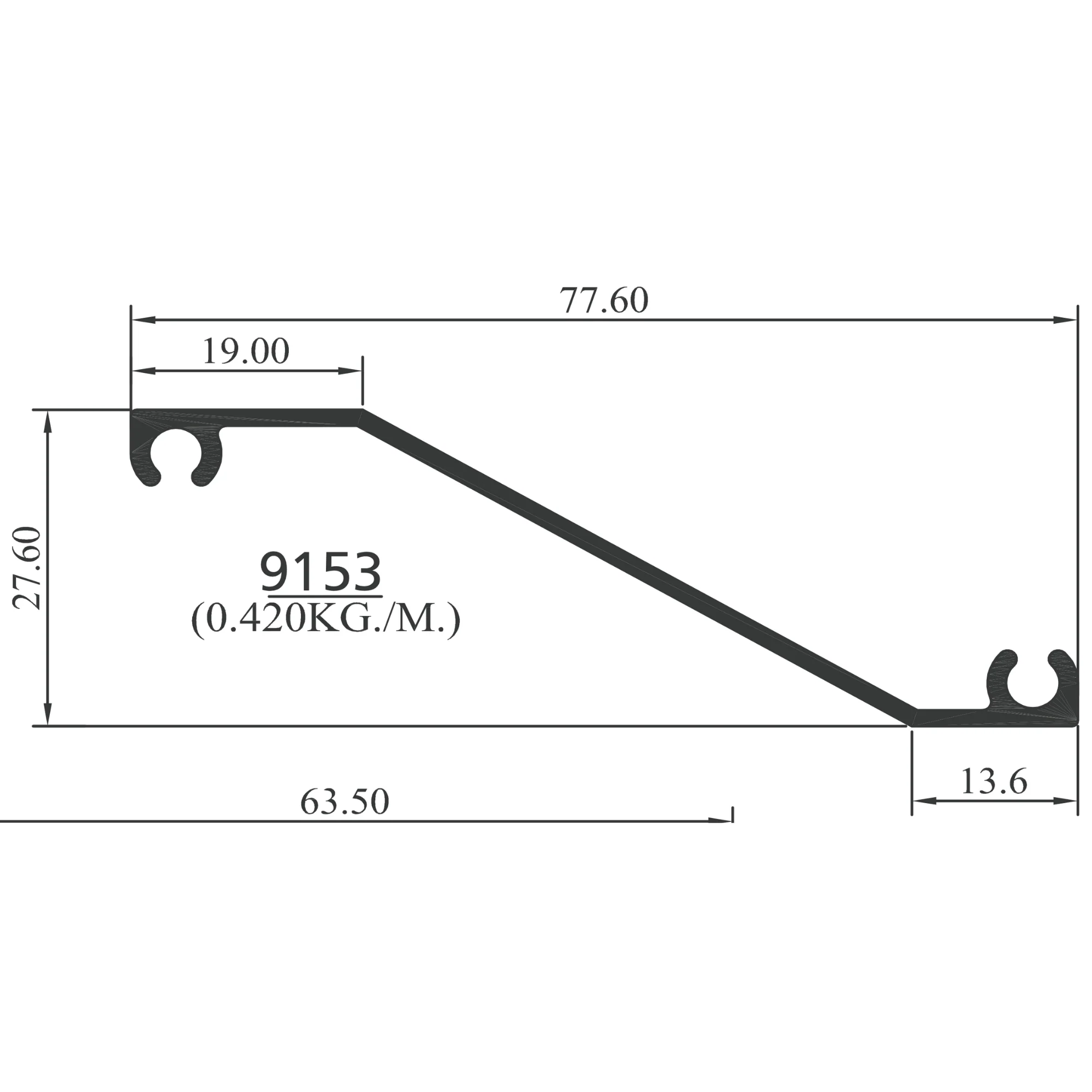

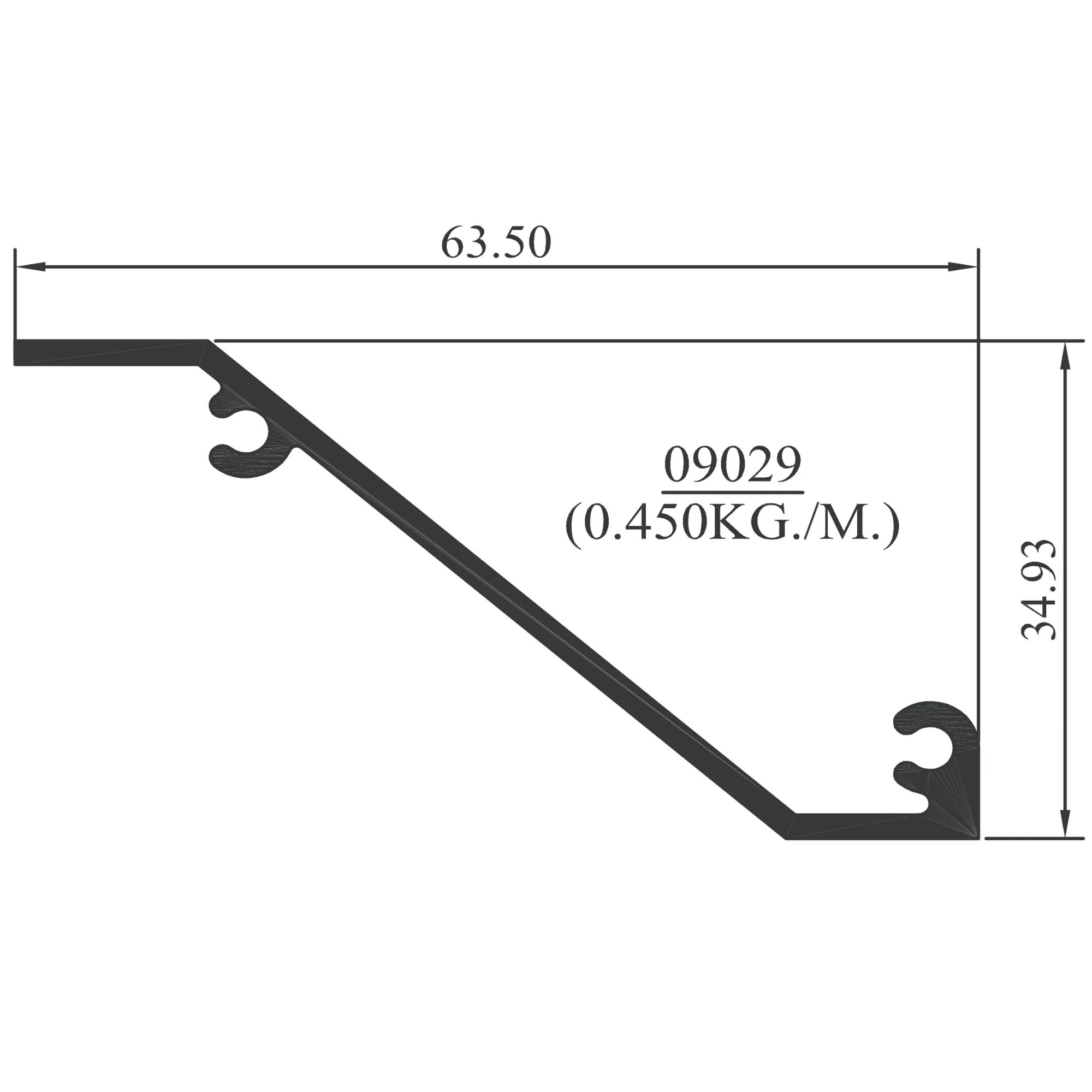

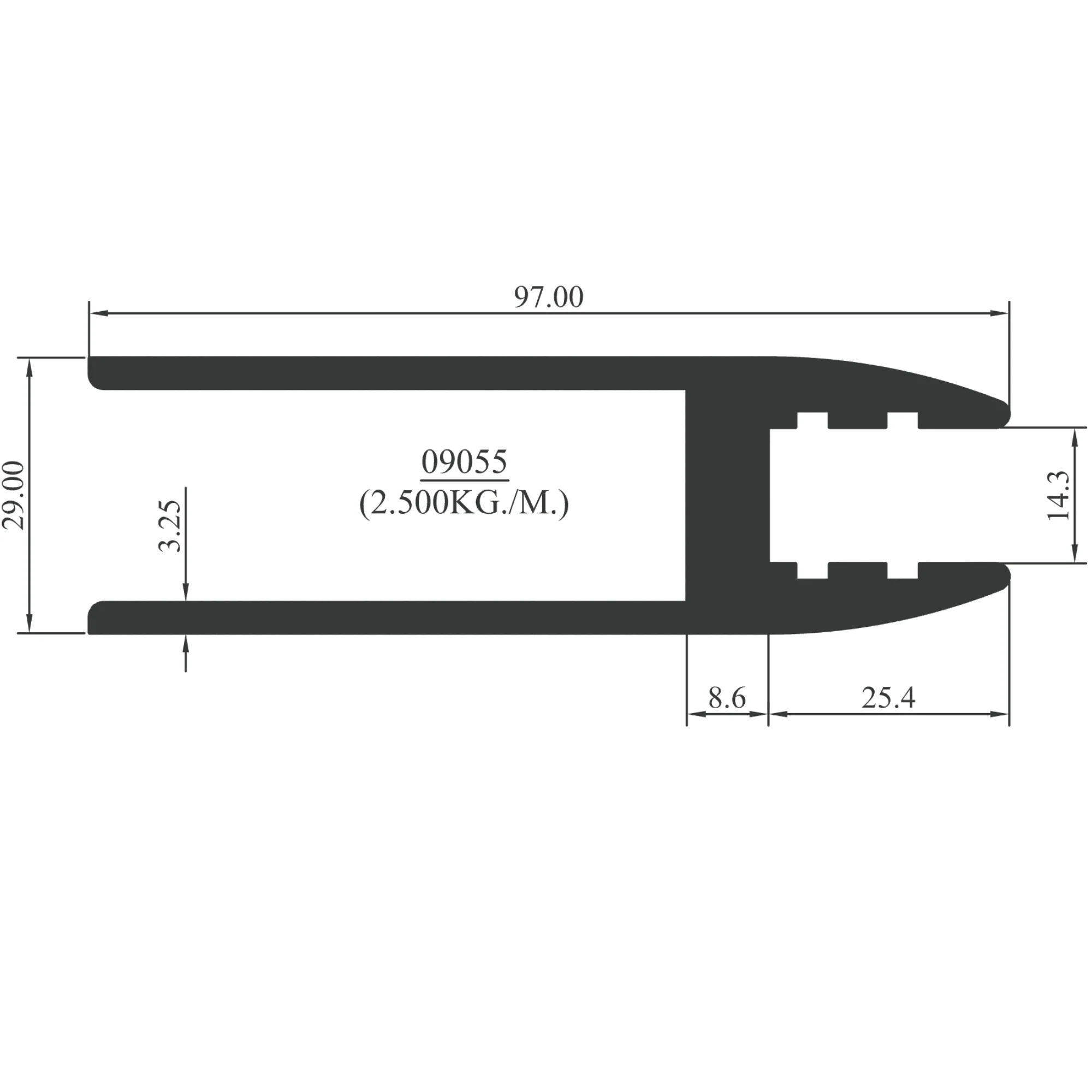

Weight range: 0.161 kg/m (10416) to 2.500 kg/m (09055, heavy base/track section) includes 2 raked/angled profiles (9153, 09029) for sloped louver banks Pairs with Louver System blade profiles (alu-louvers) and/or Amplimesh mesh infill (alu-amplimesh) within the same frame family
